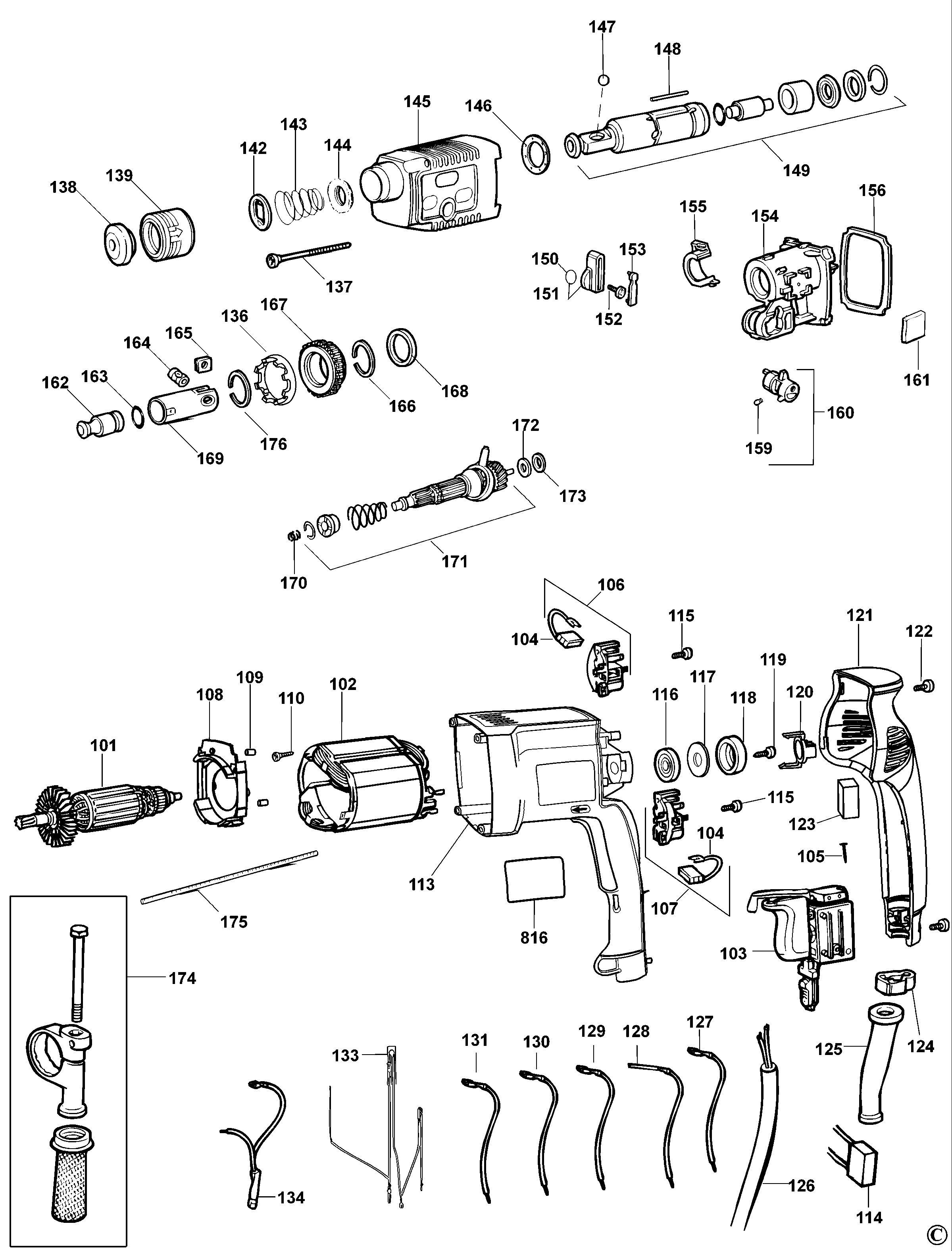

BLACK+DECKER ROTARY HAMMER (Type 4)
SKU Produs: P8020 /Type: 4
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | 1005202-00 | 1 | MOTOR SA | 252,58 Lei | |
| 102 | 1005202-00 | 1 | MOTOR SA | 252,58 Lei | |
| 104 | 401853-01 | 2 | BRUSH 230V BK29 (1EA) | 17,02 Lei | |
| 109 | 949638-01 | 2 | PLUG | 4,57 Lei | |
| 110 | 747329 | 2 | SCREW | 4,57 Lei | |
| 115 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 116 | 330003-19 | 1 | BEARING, BALL | 15,12 Lei | |
| 118 | 870052 | 1 | BEARING COVER | 4,57 Lei | |
| 119 | 329794-00 | 1 | SCREW COLLER 8MM | 4,7 Lei | |
| 122 | 330065-07 | 3 | SCREW | 4,57 Lei | |
| 123 | 930026-01 | 1 | BUMPER SPONGE | 4,57 Lei | |
| 138 | 323489-00 | 1 | CAP | 4,57 Lei | |
| 142 | 578387-00 | 1 | SDS BALL PLATE (WASHER SDS 1.4MM) | 7,37 Lei | |
| 143 | 871690 | 1 | SPRING BEVEL | 4,57 Lei | |
| 144 | 324432-00 | 1 | SEAL. DUST | 12,71 Lei | |
| 146 | 329907-00 | 1 | WASHER, SUPPORT | 22,4 Lei | |
| 147 | 583890-00 | 1 | BALL 7.0 | 5,21 Lei | |
| 152 | 323924-08 | 1 | SCREW, PLASTIC 5X12 | 4,57 Lei | |
| 154 | 327100-00 | 1 | SA HOUSING, BEARING | 104,4 Lei | |
| 159 | 326467-00 | 1 | DETENT | 4,57 Lei | |
| 160 | 327094-01 | 1 | TRIP CAM | 19,95 Lei | |
| 162 | N032136 | 1 | RAM SA | 59,2 Lei | |
| 163 | 577168-00 | 1 | RING O DYNAMIC 13X3 | 5,21 Lei | |
| 164 | 487143-00 | 1 | BOLT, BEARING | 25,54 Lei | |
| 165 | 327072-00 | 1 | SPRING, CONNECTING | 5,21 Lei | |
| 166 | 323762-02 | 1 | RING SNAP 28RD | 4,7 Lei | |
| 169 | 487067-00 | 1 | PISTON, HOLLOW 19MM | 106,98 Lei | |
| 171 | 327101-01 | 1 | INTERSHAFT SA | 169,36 Lei | |
| 174 | 939794-02 | 1 | HANDLE SIDE | 52,22 Lei | |
| 175 | 580787-00 | 1 | DEPTH STOP | 6,23 Lei |
