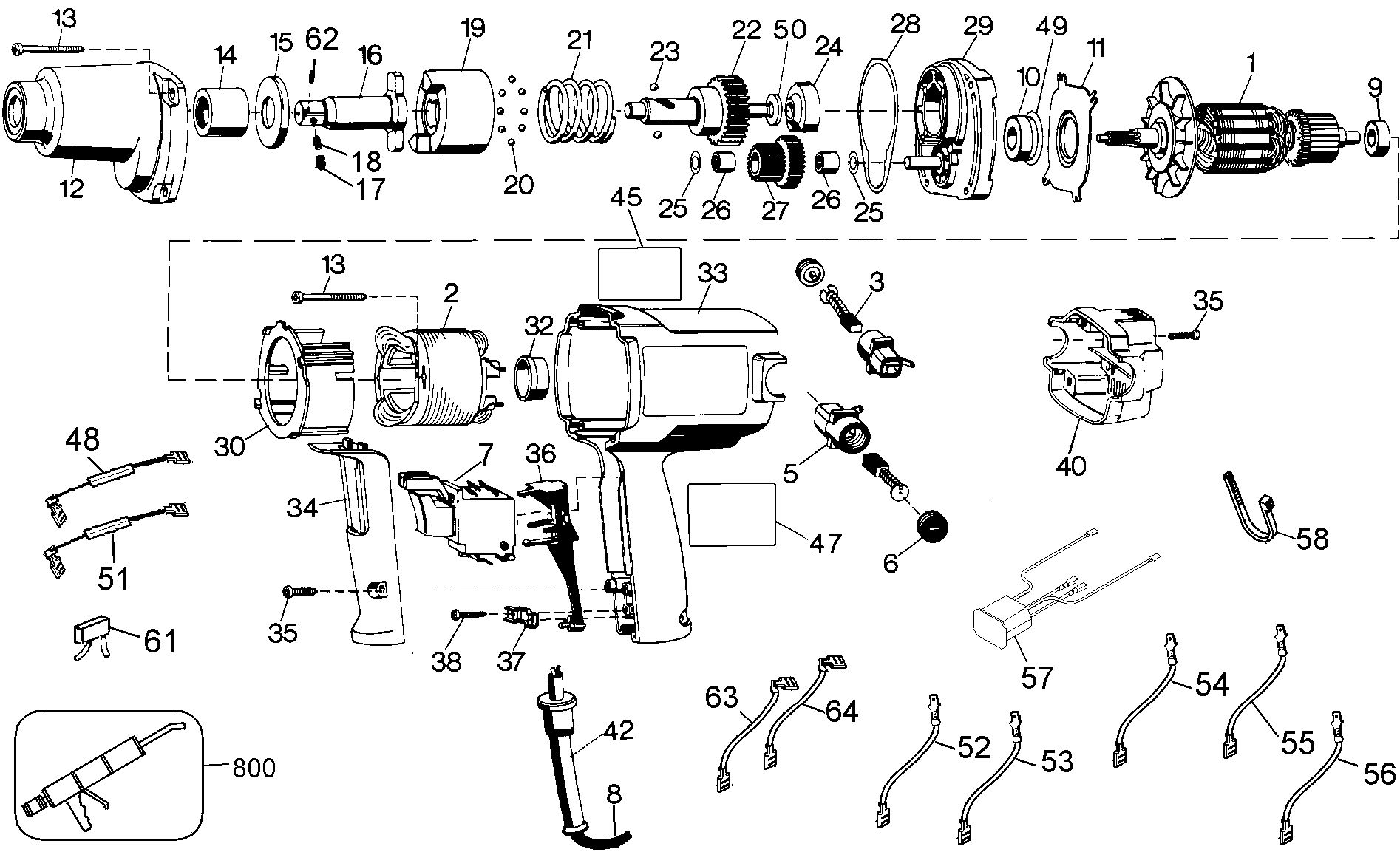

IMPACT WRENCH
SKU Produs: DW290
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 450379-00SV | 1 | FIELD DW290 | 177,2 Lei | |
| 5 | 448083-01 | 2 | BRUSH HOLDER | 25,54 Lei | |
| 9 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 10 | 605040-20 | 1 | Ball Brg | 17,02 Lei | |
| 13 | 330019-50 | 1 | SCREW | 4,57 Lei | |
| 15 | 616859-00 | 1 | WASHER THRUST | 17,02 Lei | |
| 16 | 627238-00SV | 1 | ANVIL ASSEMBLY | 252,58 Lei | |
| 17 | N020802 | 1 | DETENT | 12,71 Lei | |
| 18 | 038769-00 | 1 | SPRING, CPRSN | 5,21 Lei | |
| 18 | 40260300 | 1 | BELT | 78,1 Lei | |
| 20 | 000475-00 | 25 | BALL STEEL 3/16 | 4,57 Lei | |
| 23 | 005190-00 | 2 | BALL STEEL | 4,5 Lei | |
| 25 | 135089-00 | 2 | WASHER DW290 | 4,57 Lei | |
| 26 | 330004-02 | 2 | BEARING, NEEDLE | 8,64 Lei | |
| 27 | 135093-01SV | 1 | GEAR AND PINION | 88,55 Lei | |
| 32 | 445217-02 | 1 | SLEEVE | 5,21 Lei | |
| 35 | 330019-13 | 6 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 38 | 330019-03 | 2 | Screw M3.5X16 T15 | 4,57 Lei | |
| 42 | 148809-00 | 1 | PROTECTOR | 5,21 Lei | |
| 49 | 99180-24 | 1 | SEAL DW290 | 4,7 Lei | |
| 58 | 690673 | 1 | WIRE TIE | 4,57 Lei | |
| 62 | 099205-07 | 1 | ROLL PIN | 13,85 Lei | |
| 800 | 429698-00 | 1 | GREASE | 819,98 Lei |
