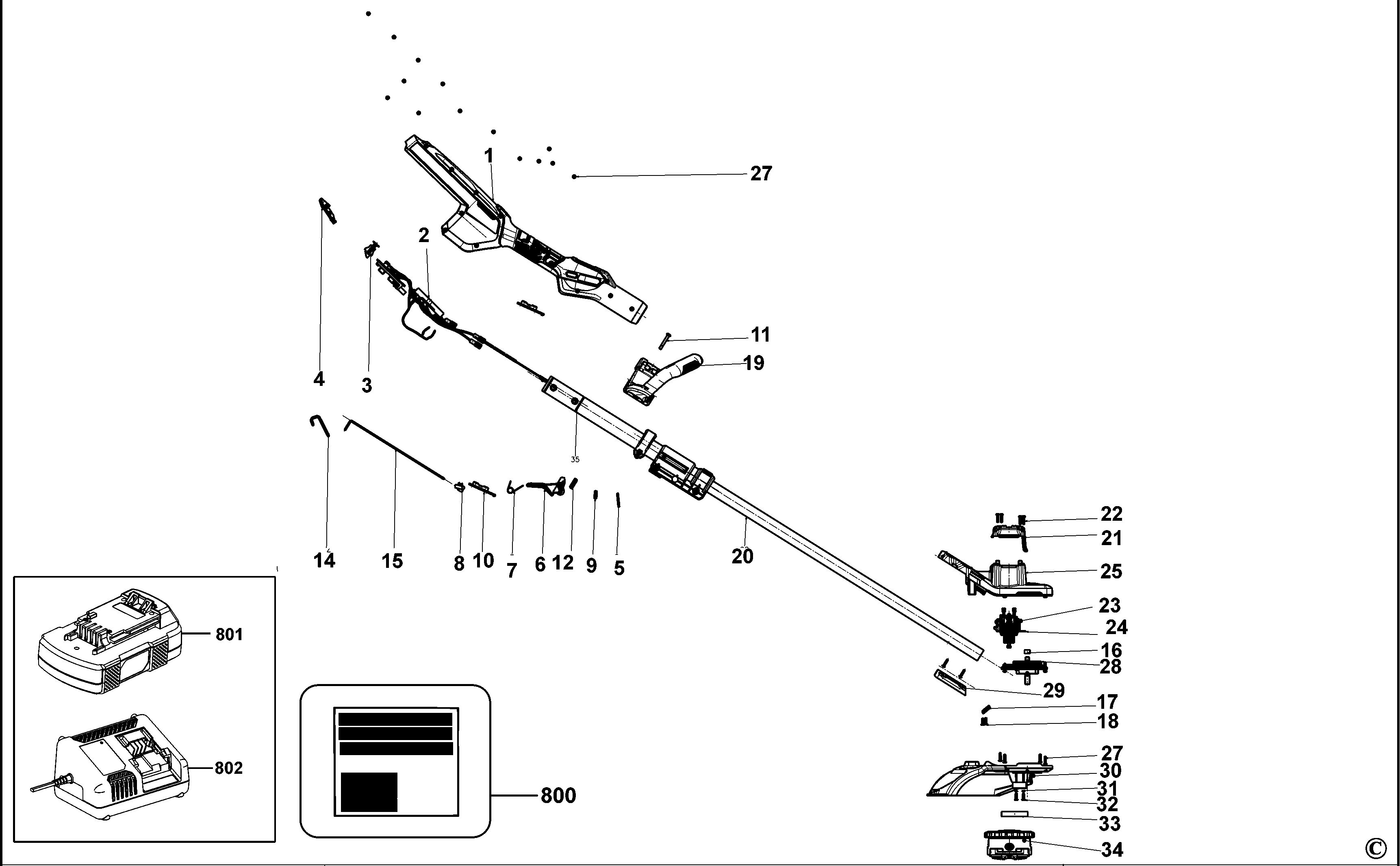

STANLEY STRING TRIMMER (Type 1)
SKU Produs: SFMCSTB963B /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N715559 | 1 | HOUSING | 169,36 Lei | |
| 2 | N855924 | 1 | MODULE | 331,47 Lei | |
| 3 | N859852 | 1 | LATCH | 7,37 Lei | |
| 4 | N580658 | 1 | Button Latch CM 60V | 6,23 Lei | |
| 5 | 90618343 | 1 | PIN | 4,57 Lei | |
| 6 | N602434 | 1 | TRIGGER | 6,23 Lei | |
| 7 | N616757 | 1 | SPRING | 4,57 Lei | |
| 8 | N595796 | 1 | LOCK BUTTON | 5,21 Lei | |
| 9 | 90559867 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 10 | N595797 | 1 | BUTTON | 4,57 Lei | |
| 11 | 90579167 | 1 | SCREW | 4,57 Lei | |
| 12 | 90600458 | 1 | SWITCH | 17,02 Lei | |
| 13 | N764260 | 1 | HARNESS | 17,02 Lei | |
| 14 | N545340 | 1 | CLIP VERSATRACK OUTDOOR | 7,37 Lei | |
| 15 | N599648 | 1 | SWITCH | 4,57 Lei | |
| 16 | 330004-27 | 1 | BEARING, NEEDLE | 7,37 Lei | |
| 17 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 18 | 373158 | 1 | SCREW | 4,57 Lei | |
| 19 | N715567 | 1 | HANDLE | 41,93 Lei | |
| 20 | N718958 | 1 | POLE PIECE SA | 145,09 Lei | |
| 21 | N718982 | 1 | MOTOR SA | 375,31 Lei | |
| 22 | N859854 | 1 | COVER | 106,98 Lei | |
| 23 | 330019-03 | 1 | Screw M3.5X16 T15 | 4,57 Lei | |
| 24 | 585145-02 | 1 | BAG | 4,57 Lei | |
| 25 | N715566 | 1 | CLAMP | 5,21 Lei | |
| 26 | 90611830 | 1 | SCREW | 4,57 Lei | |
| 27 | 747329 | 1 | SCREW | 4,57 Lei | |
| 28 | 90607066 | 1 | SPINDLE LOCK | 15,12 Lei | |
| 29 | N719010 | 1 | SPOOL CARRIER | 120,82 Lei | |
| 30 | N598162 | 1 | RING | 4,57 Lei | |
| 31 | N726848 | 1 | HARNESS | 88,55 Lei | |
| 32 | N804842 | 1 | SWITCH SA | 120,82 Lei | |
| 33 | N726850 | 1 | BLOCK | 70,39 Lei | |
| 34 | 650974-00 | 1 | WIRE NUT HIGH TECH | 5,21 Lei | |
| 35 | N755866 | 1 | TIP | 4,57 Lei |
