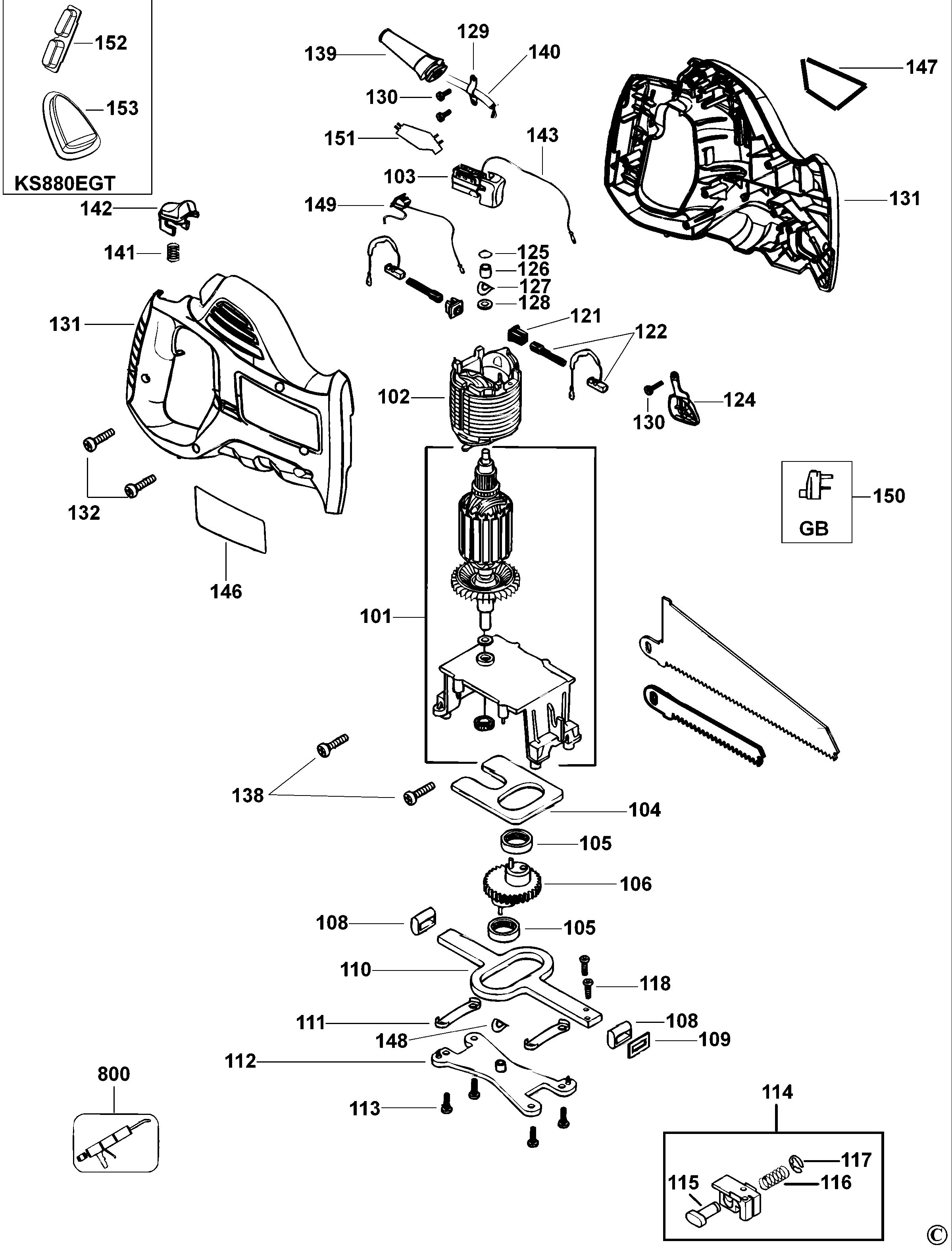

BLACK+DECKER CUT SAW (Type 1)
SKU Produs: KS880EGT /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | 376446-20 | 1 | ARMATURE 230V | 130,35 Lei | |
| 102 | 576374-34 | 1 | FIELD 230V | 70,39 Lei | |
| 104 | 377372 | 1 | BALANCE WEIGHT KS890E | 17,02 Lei | |
| 105 | 377454 | 2 | BEARING KS890E | 13,85 Lei | |
| 106 | 376450-04 | 1 | GEAR SA | 19,95 Lei | |
| 108 | 795680-01 | 2 | SLEEVE BEARING | 5,21 Lei | |
| 109 | 795694 | 1 | SEAL | 4,57 Lei | |
| 110 | 376449-00 | 1 | SHAFT SA | 25,54 Lei | |
| 111 | 795647 | 2 | CLAMP | 4,57 Lei | |
| 112 | 377389 | 1 | GEARCASE COVER KS890E | 25,54 Lei | |
| 113 | 575946-00 | 4 | SCREW | 4,57 Lei | |
| 114 | 377375-00 | 1 | SA BLADE CLAMP | 17,02 Lei | |
| 115 | 571265-00 | 1 | LOCK PIN | 5,21 Lei | |
| 116 | 368671 | 1 | SPRING | 4,57 Lei | |
| 117 | 571181-00 | 1 | E CLIP | 4,57 Lei | |
| 118 | 577359-00 | 2 | SCREW | 4,57 Lei | |
| 121 | 875735 | 2 | BRUSH BOX HOLDER | 4,57 Lei | |
| 122 | 583366-03 | 2 | BRUSHBOX SA | 13,85 Lei | |
| 124 | 479986-00 | 1 | LOCK BUTTON | 4,57 Lei | |
| 125 | 583894-00 | 1 | O RING | 4,57 Lei | |
| 126 | 624474-06 | 1 | BEARING,NEEDLE | 7,37 Lei | |
| 127 | 373296-00 | 1 | RONDELLE | 4,57 Lei | |
| 128 | 373295-01 | 1 | WASHER FIBRE | 4,57 Lei | |
| 129 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 130 | 821057 | 2 | SCREW NO.6 X 12.7 | 4,57 Lei | |
| 132 | 747329 | 1 | SCREW | 4,57 Lei | |
| 138 | 747329 | 2 | SCREW | 4,57 Lei | |
| 139 | 479984-00 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 140 | 330120-44 | 1 | CORDSET (EURO) | 25,54 Lei | |
| 141 | 619758-00 | 1 | SPRING | 4,57 Lei | |
| 142 | 479985-00 | 1 | SWITCH LOCK OFF | 4,57 Lei | |
| 143 | 580090-00 | 1 | LEADWIRE | 6,23 Lei | |
| 147 | 488218-00 | 1 | BRAND LABEL | 4,57 Lei | |
| 148 | 373296-02 | 1 | WASHER BOW | 4,57 Lei | |
| 151 | 490370-00 | 1 | SWITCH COVER | 4,57 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei |
