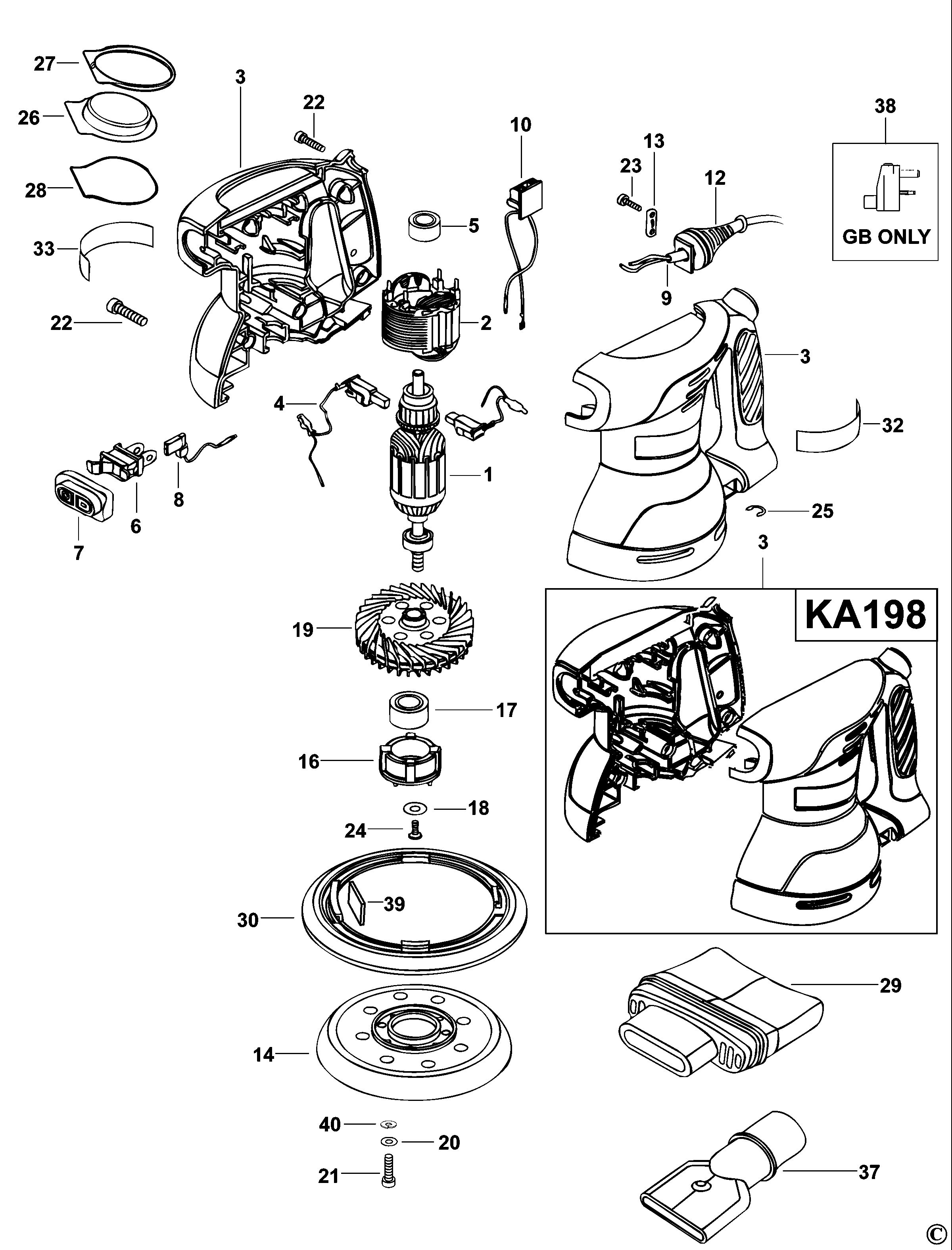

BLACK+DECKER RANDOM ORBITAL SANDER (Type 1)
SKU Produs: KA198 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 589430-00 | 1 | ARMATURE SA | 106,98 Lei | |
| 2 | 589431-00 | 1 | FIELD SA | 72 Lei | |
| 3 | 587824-01N | 1 | CLAMSHELL SET | 120,82 Lei | |
| 4 | 584751-00 | 2 | BRUSH AND HOLDER KA171 | 15,12 Lei | |
| 5 | 574853-06 | 1 | BEARING | 10,29 Lei | |
| 6 | 579050-00 | 1 | SWITCH | 7,37 Lei | |
| 8 | 389602-02 | 1 | LEAD SA | 6,23 Lei | |
| 9 | 90578995-47 | 1 | CORDSET (EURO) | 30,87 Lei | |
| 10 | 588549-00 | 1 | PCB SA | 17,4 Lei | |
| 12 | 148481-00 | 1 | PROTECTOR | 4,57 Lei | |
| 13 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 14 | 1004522-00 | 1 | PLATE KIT | 52,22 Lei | |
| 14 | 587295-01 | 1 | PLATEN | 34,05 Lei | |
| 16 | 587297-00 | 1 | BEARING HOUSING | 6,4 Lei | |
| 17 | 574853-05 | 1 | BEARING | 17,02 Lei | |
| 18 | 151652-00 | 1 | WASHER, CONE | 4,57 Lei | |
| 19 | 587298-00 | 1 | COUNTERWEIGHT | 30,87 Lei | |
| 20 | 330016-01 | 4 | WASHER | 4,57 Lei | |
| 21 | 330019-03 | 4 | Screw M3.5X16 T15 | 4,57 Lei | |
| 22 | 747329 | 6 | SCREW | 4,57 Lei | |
| 23 | 370748 | 2 | SCREW | 4,57 Lei | |
| 24 | 388405-00 | 1 | SCREW | 4,57 Lei | |
| 25 | 122198-00 | 1 | RETAINING RING | 4,57 Lei | |
| 29 | 587299-01 | 1 | DUSTBAG | 19,95 Lei | |
| 30 | 587461-00 | 1 | SKIRT | 5,21 Lei | |
| 32 | 587695-00 | 1 | BRAND LABEL | 4,57 Lei | |
| 33 | 90556577 | 1 | RATING PLATE | 4,57 Lei | |
| 37 | 587561-00 | 1 | VACUUM ADAPTOR | 7,37 Lei | |
| 39 | 579065-00 | 1 | BRAKE | 5,21 Lei | |
| 40 | 098197-11 | 4 | WASHER LOCK | 4,57 Lei |
