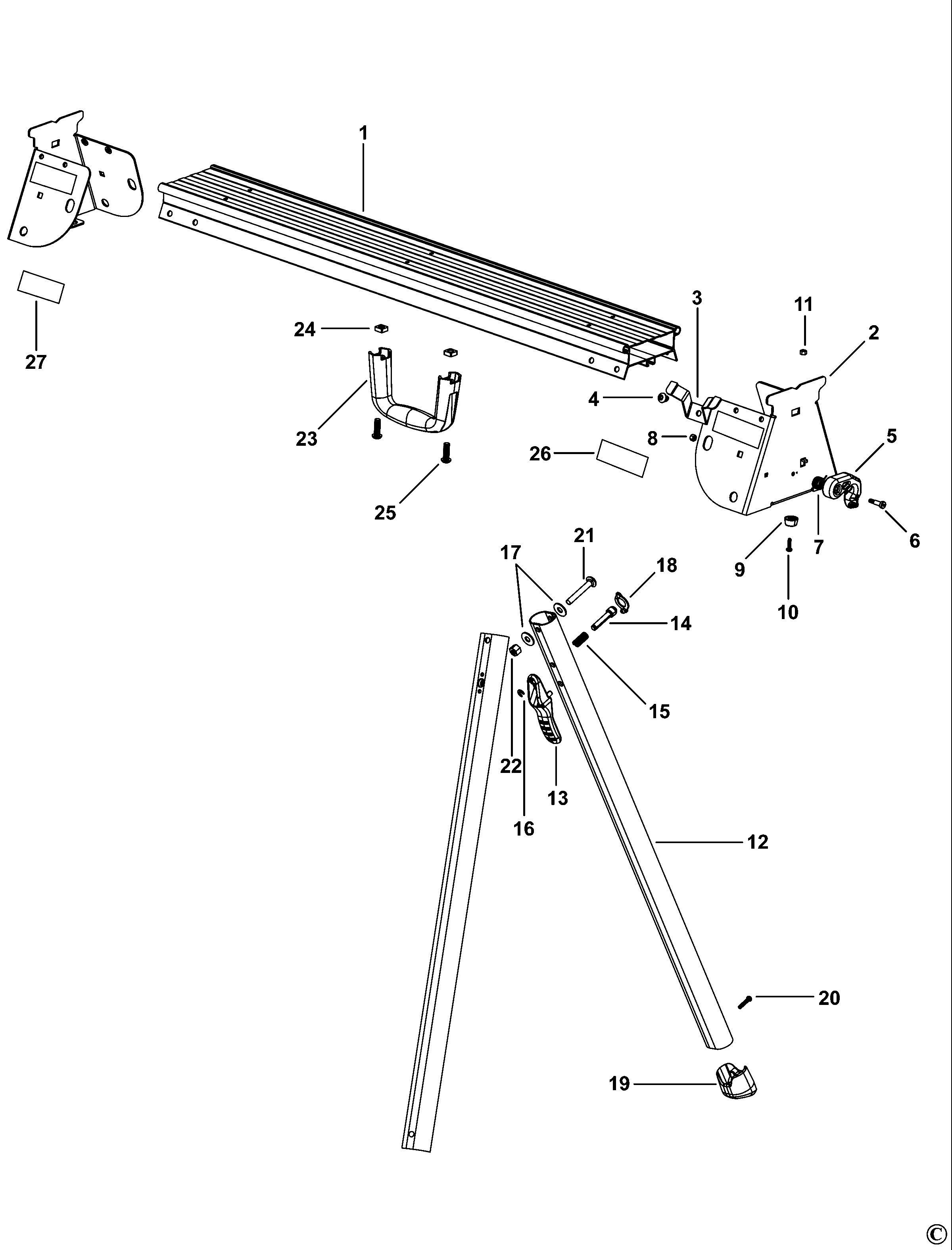

DEWALT LEG STAND (Type 1)
SKU Produs: DWX725 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N006440 | 1 | BEAM | 584,2 Lei | |
| 2 | N005003 | 2 | SUPPORT BRACKET | 246 Lei | |
| 3 | N069314 | 1 | MOUNTING BRACKET | 22,4 Lei | |
| 4 | 330045-31 | 8 | SCREW | 6,4 Lei | |
| 5 | N045647 | 2 | HOOK | 17,4 Lei | |
| 6 | N057927 | 2 | SCREW | 7,5 Lei | |
| 7 | N057928 | 2 | SPRING TORSION | 7,5 Lei | |
| 8 | 330021-06 | 2 | STOP NUT | 4,7 Lei | |
| 9 | N057926 | 2 | FOOT | 22,4 Lei | |
| 10 | 330045-06 | 2 | SCREW, METAL THD FRM,M4X16 T20 | 4,7 Lei | |
| 11 | 330021-00 | 2 | NUT | 4,5 Lei | |
| 12 | N004976 | 4 | LEG | 123,6 Lei | |
| 13 | N041876 | 4 | LEVER LOCK | 53,4 Lei | |
| 14 | 657816-00 | 4 | LOCK PIN | 15,5 Lei | |
| 15 | 658120-00 | 4 | SPRING COMPRESSION | 7,5 Lei | |
| 16 | 658121-00 | 4 | RING | 6,4 Lei | |
| 17 | 657479-00 | 8 | WASHER PLASTIC | 6,4 Lei | |
| 18 | 657478-00 | 4 | WASHER PLASTIC | 6,4 Lei | |
| 19 | N074647 | 4 | FOOT | 20,4 Lei | |
| 20 | 330019-32 | 4 | SCREW,PLASTITE | 4,7 Lei | |
| 21 | 658122-00 | 4 | CARRIAGE BOLT | 14,2 Lei | |
| 22 | 330021-02 | 4 | Stop Nut M8 | 4,7 Lei | |
| 23 | N087125 | 2 | HANDLE | 42,9 Lei | |
| 24 | N087199 | 2 | NUT | 6,4 Lei | |
| 25 | N086604 | 2 | SCREW | 7,5 Lei | |
| 27 | 606774-00 | 1 | BRAND LABEL | 13 Lei |
