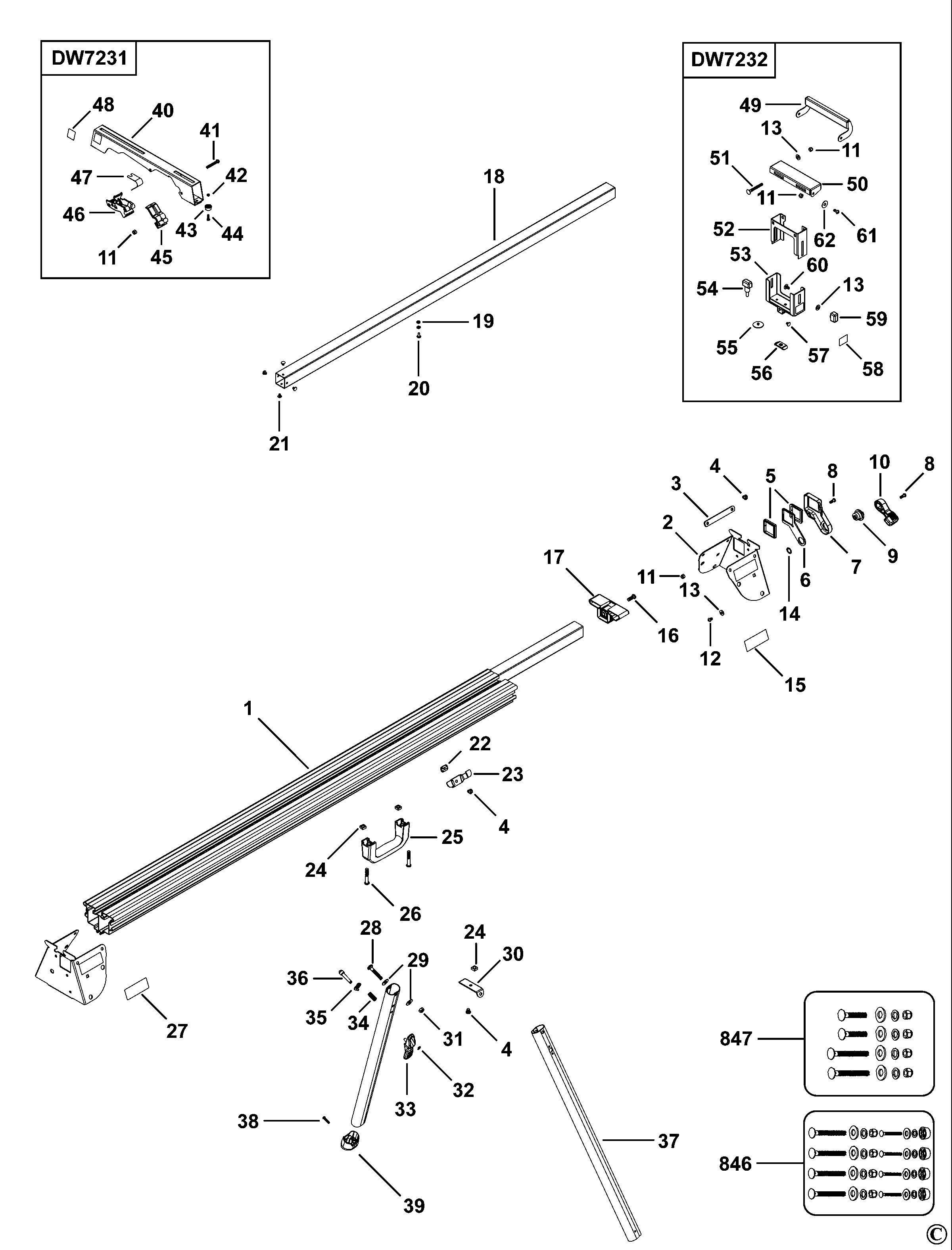

DEWALT MITER SAW STAND (Type 3)
SKU Produs: DWX723 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | N087205 | 4 | PLATE | 13,85 Lei | |
| 4 | 330045-31 | 11 | SCREW | 6,23 Lei | |
| 5 | N087198 | 4 | GUIDE | 10,29 Lei | |
| 7 | N576965 | 2 | COVERPLATE | 57,81 Lei | |
| 8 | N087285 | 6 | SCREW | 6,23 Lei | |
| 10 | N069240 | 2 | LEVER LOCK | 30,87 Lei | |
| 11 | 330021-01 | 16 | NUT, 6KT M6 ISO7040 | 17,02 Lei | |
| 12 | N087318 | 2 | SCREW | 6,23 Lei | |
| 13 | N087248 | 10 | WASHER | 6,23 Lei | |
| 14 | N087200 | 2 | WASHER SPRING | 6,23 Lei | |
| 16 | N086604 | 2 | SCREW | 7,37 Lei | |
| 17 | N576964 | 2 | END CAP | 80,04 Lei | |
| 18 | N087325 | 2 | EXTENSION | 310,6 Lei | |
| 19 | N087321 | 4 | WASHER LOCK | 6,23 Lei | |
| 20 | N087258 | 2 | SCREW | 6,23 Lei | |
| 21 | N087257 | 8 | PAD | 6,1 Lei | |
| 22 | N087250 | 1 | NUT | 7,37 Lei | |
| 23 | N087127 | 1 | BRACKET | 25,54 Lei | |
| 24 | N087199 | 4 | NUT | 6,23 Lei | |
| 25 | N087125 | 1 | HANDLE | 41,93 Lei | |
| 26 | N593762 | 2 | SCREW | 13,85 Lei | |
| 27 | 606774-00 | 1 | BRAND LABEL | 12,71 Lei | |
| 28 | 658122-00 | 4 | CARRIAGE BOLT | 13,85 Lei | |
| 29 | 657479-00 | 1 | WASHER PLASTIC | 6,23 Lei | |
| 30 | N087284 | 2 | SUPPORT BRACKET | 25,54 Lei | |
| 31 | 330021-02 | 4 | Stop Nut M8 | 4,57 Lei | |
| 32 | 658121-00 | 4 | RING | 6,23 Lei | |
| 33 | N041876 | 4 | LEVER LOCK | 52,22 Lei | |
| 34 | 658120-00 | 4 | SPRING COMPRESSION | 7,37 Lei | |
| 35 | 657478-00 | 4 | WASHER PLASTIC | 6,23 Lei | |
| 36 | 657816-00 | 4 | LOCK PIN | 15,5 Lei | |
| 37 | N087320 | 4 | LEG | 145,09 Lei | |
| 38 | 330019-32 | 4 | SCREW,PLASTITE | 4,57 Lei | |
| 39 | N074647 | 4 | FOOT | 19,95 Lei | |
| 40 | N087331 | 2 | MOUNTING BRACKET | 120,82 Lei | |
| 41 | N087342 | 4 | SCREW | 6,23 Lei | |
| 42 | 330021-00 | 4 | NUT | 4,5 Lei | |
| 43 | N057926 | 4 | FOOT | 21,85 Lei | |
| 44 | 330045-06 | 4 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 45 | N087369 | 2 | CLIP | 17,02 Lei | |
| 46 | N087367 | 2 | LEVER RELEASE | 70,39 Lei | |
| 47 | N087366 | 2 | LEAF SPRING | 25,54 Lei | |
| 49 | N087387 | 2 | STOP | 52,22 Lei | |
| 50 | N087381 | 2 | SUPPORT | 52,22 Lei | |
| 51 | N087382 | 4 | CARRIAGE BOLT | 7,37 Lei | |
| 52 | N087377 | 2 | SUPPORT BRACKET | 25,54 Lei | |
| 53 | N087402 | 2 | BASE BRACKET | 106,98 Lei | |
| 54 | N087376 | 2 | KNOB | 21,85 Lei | |
| 55 | N087374 | 4 | PLASTIC INSERT | 6,23 Lei | |
| 56 | N087375 | 2 | BAR LOCKING | 15,12 Lei | |
| 57 | N087373 | 8 | PLASTIC INSERT | 6,23 Lei | |
| 59 | N087378 | 4 | KNOB | 17,02 Lei | |
| 60 | N087380 | 4 | SCREW | 7,37 Lei | |
| 61 | N087390 | 4 | SCREW | 6,23 Lei | |
| 62 | N087392 | 4 | WASHER PLASTIC | 21,85 Lei | |
| 846 | N088854 | 1 | PARTS PACK | 88,55 Lei |
