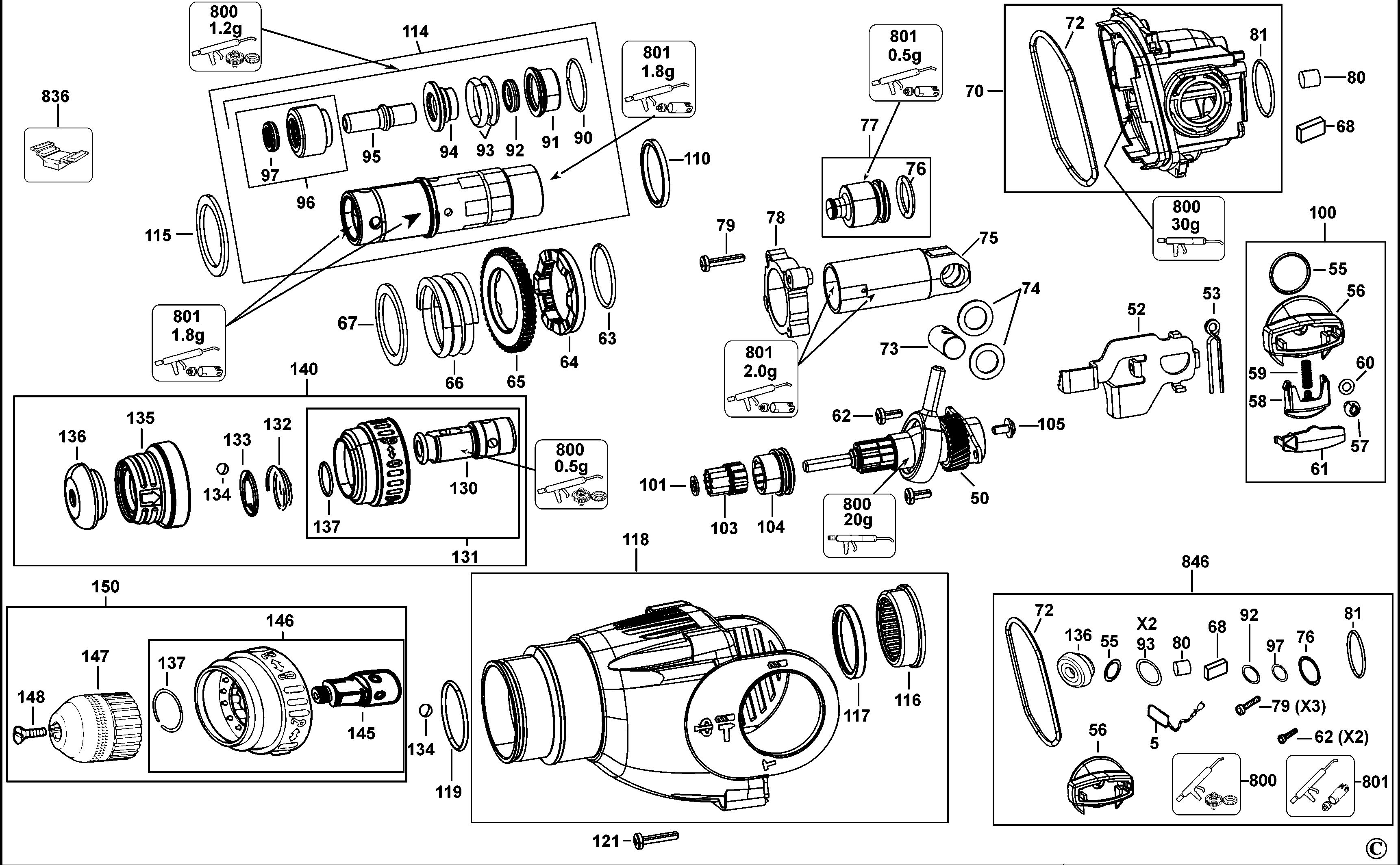

DEWALT HAMMER DRILL (Type 1)
SKU Produs: DWEN103K /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 576690-05 | 1 | SA FIELD ( SERVICE ) | 106,98 Lei | |
| 3 | 583748-09 | 1 | SWITCH, 230V with LOCK-ON | 88,55 Lei | |
| 4 | N028619 | 2 | SA BRUSH HOLDER | 15,12 Lei | |
| 5 | N058083 | 1 | BRUSH PAIR 230V SA (SUBA) | 37,73 Lei | |
| 6 | 320842-19 | 1 | CAPACITOR, 0.22uF | 7,37 Lei | |
| 7 | NA073534 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 8 | 582319-31 | 1 | CORDSET QS | 70,39 Lei | |
| 12 | 584304-00 | 1 | LEAD WIRE MQ WHITE/100/FSH3/FST | 7,5 Lei | |
| 13 | 584304-10 | 1 | LEAD WIRE MQ BLUE /125/FSH3/FST | 7,5 Lei | |
| 14 | 584304-04 | 1 | LEADWIRE MQ GREEN /55/FSH3/FST | 7,5 Lei | |
| 15 | 584304-05 | 1 | LEAD WIRE MQ VIOL/100/FSH3/FST | 7,5 Lei | |
| 18 | 930026-01 | 1 | BUMPER SPONGE | 4,57 Lei | |
| 19 | 479818-00 | 1 | LEVER FRW/REV | 7,37 Lei | |
| 21 | 870052 | 1 | BEARING COVER | 4,57 Lei | |
| 22 | 324006-14 | 2 | SCREW,TAPTITE M4X10 ANU-LOCK | 4,57 Lei | |
| 23 | 326519-03 | 4 | SCREW, PLASTIC 3.5 X 30, COMBI TORX | 4,7 Lei | |
| 25 | 1005895-00 | 1 | CE BEARING | 12,71 Lei | |
| 29 | 584551-00 | 1 | PIN REVERSE MQ | 10,29 Lei | |
| 31 | 577826-00 | 1 | COVER FAN | 13 Lei | |
| 32 | 577810-04 | 1 | CASE, FIELD (MOULD) | 51 Lei | |
| 34 | 479817-00 | 1 | COVER HANDLE REAR | 72 Lei | |
| 35 | 330065-06 | 4 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 36 | 821070 | 1 | CLAMP, CORD | 4,57 Lei | |
| 37 | 330065-09 | 1 | SCREW PLSTC THD FORM M4X25 T20 | 4,57 Lei | |
| 40 | 330065-25 | 2 | SCREW PLSTC THD FORM M3X9 T10 | 4,57 Lei | |
| 50 | N076098 | 1 | SA INTERSHAFT PACKED (SERVICE) | 181,55 Lei | |
| 52 | N029727 | 1 | SWITCH PLATE | 8,64 Lei | |
| 53 | N042799 | 1 | SPRING MODE SWITCH | 6,23 Lei | |
| 57 | 330065-05 | 1 | SCEW PLSTC THD FORM M4X10 T20 | 4,57 Lei | |
| 59 | N074923 | 1 | MODE SELECTOR SPRING | 4,57 Lei | |
| 60 | 1005811-00 | 1 | FLAT SEAL 4.4X8X0.5 | 4,7 Lei | |
| 61 | N034134 | 1 | CAP-1 | 7,37 Lei | |
| 62 | 324006-14 | 2 | SCREW,TAPTITE M4X10 ANU-LOCK | 4,57 Lei | |
| 63 | 581836-00 | 1 | RING,SNAP 29.5 | 4,57 Lei | |
| 66 | N029717 | 1 | CLUTCH SPRING | 13,5 Lei | |
| 67 | 577814-00 | 1 | WASHER SPINDLE | 12,71 Lei | |
| 68 | N081515 | 1 | FELT-2 | 4,7 Lei | |
| 70 | N076103 | 1 | SA HOUSING PACKED GBX (SERVICE) | 90,6 Lei | |
| 72 | 578229-00 | 1 | O-RING SEAL | 6,23 Lei | |
| 73 | 577801-00 | 1 | BEARING BOLT-1 | 21,85 Lei | |
| 75 | 496246-00 | 1 | SA HOLLOW PISTON (SERVICE) | 80,04 Lei | |
| 76 | 579699-00 | 1 | O-RING 16X3 | 7,37 Lei | |
| 77 | 496245-00 | 1 | SA RAM (SERVICE) | 57,81 Lei | |
| 79 | 324006-15 | 3 | SCREW ,TAPTITE M4X20 ANU LOCK | 4,57 Lei | |
| 80 | N038257 | 1 | FELT | 4,57 Lei | |
| 81 | N042496 | 1 | O-RING | 7,5 Lei | |
| 90 | 577793-00 | 1 | RING SNAP | 4,57 Lei | |
| 90 | N361759 | 1 | RING, SNAP | 4,57 Lei | |
| 91 | 584426-00 | 1 | SA RAM CATCHER, PACKED FOR SERVICE | 30,87 Lei | |
| 92 | 580990-00 | 1 | RING RAMCATCHER | 8,64 Lei | |
| 93 | 577135-00 | 2 | O-RING 19.5X3.5 | 7,37 Lei | |
| 94 | 584425-00 | 1 | BUSH, DAMPER PACKED FOR SERVICE | 38,6 Lei | |
| 95 | 584424-01 | 1 | BEAT PIECE, QCC PACKED FOR SERVICE | 38,6 Lei | |
| 97 | 577139-00 | 1 | SEAL | 7,37 Lei | |
| 101 | 1005844-00 | 1 | WASHER INTERSHAFT FRONT | 4,57 Lei | |
| 104 | N029725 | 1 | GEAR SHIFT COLLAR | 14,2 Lei | |
| 105 | 329794-00 | 1 | SCREW COLLER 8MM | 4,7 Lei | |
| 110 | N059509 | 1 | RING WASHER | 5,21 Lei | |
| 115 | 577814-00 | 1 | WASHER SPINDLE | 12,71 Lei | |
| 116 | 577813-00 | 1 | BEARING NEEDLE-1 | 21,85 Lei | |
| 117 | 577812-00 | 1 | RING SEAL | 10,29 Lei | |
| 119 | 577795-00 | 1 | RING, SNAP 32 | 4,57 Lei | |
| 121 | 330019-81 | 4 | SCREW PLSTC THD FORM M4.06X30 | 4,57 Lei | |
| 130 | N403112 | 1 | SPINDLE | 70,39 Lei | |
| 131 | N591847 | 1 | SA CHUCK QCC SERVICE | 213,19 Lei | |
| 132 | 871690 | 1 | SPRING BEVEL | 4,57 Lei | |
| 133 | 578387-00 | 1 | SDS BALL PLATE (WASHER SDS 1.4MM) | 7,37 Lei | |
| 134 | 583890-00 | 5 | BALL 7.0 | 5,21 Lei | |
| 135 | N774198 | 1 | TUBE SA | 41,93 Lei | |
| 136 | 323489-00 | 1 | CAP | 4,57 Lei | |
| 137 | 579212-00 | 2 | RING SNAP 21 | 5,21 Lei | |
| 140 | N591846 | 1 | SA TOOLHOLDER QCC SERVICE | 264,01 Lei | |
| 145 | 584676-00 | 1 | SPINDLE, CHUCK PACKED FOR SERVICE | 88,55 Lei | |
| 146 | N591847 | 1 | SA CHUCK QCC SERVICE | 213,19 Lei | |
| 147 | 582512-02 | 1 | CHUCK, KEYLESS 1/2 INCH UNF 2 SLEEVE | 130,35 Lei | |
| 148 | 605256-02 | 1 | SCREW, CHUCK (1/4-28 UNF-LH) | 4,57 Lei | |
| 150 | N591847 | 1 | SA CHUCK QCC SERVICE | 213,19 Lei | |
| 160 | 589467-00 | 1 | SA SIDE HANDLE | 34,8 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 801 | 487130-04 | 1 | GREASE,GLK FLUID, 10G SACHET - SERVICE | 25,54 Lei | |
| 817 | 496620-00 | 1 | LABEL, NOISE 105DB | 4,7 Lei | |
| 830 | N074584 | 2 | LABEL LOGO | 4,7 Lei | |
| 836 | 1003924-99 | 1 | S.T.CIRCLIP REMOVER | 219,42 Lei | |
| 836 | 1003925-99 | 1 | T.CIRCLIP INSERTER | 333,38 Lei | |
| 836 | 1003926-99 | 1 | S.T.INSERT | 57,55 Lei | |
| 836 | 596005-99 | 1 | SERVICE TOOLING KIT | 526,5 Lei | |
| 846 | N104816 | 1 | 230V KIT GBX GREEN O-RING (SERVICE) | 161,6 Lei |
