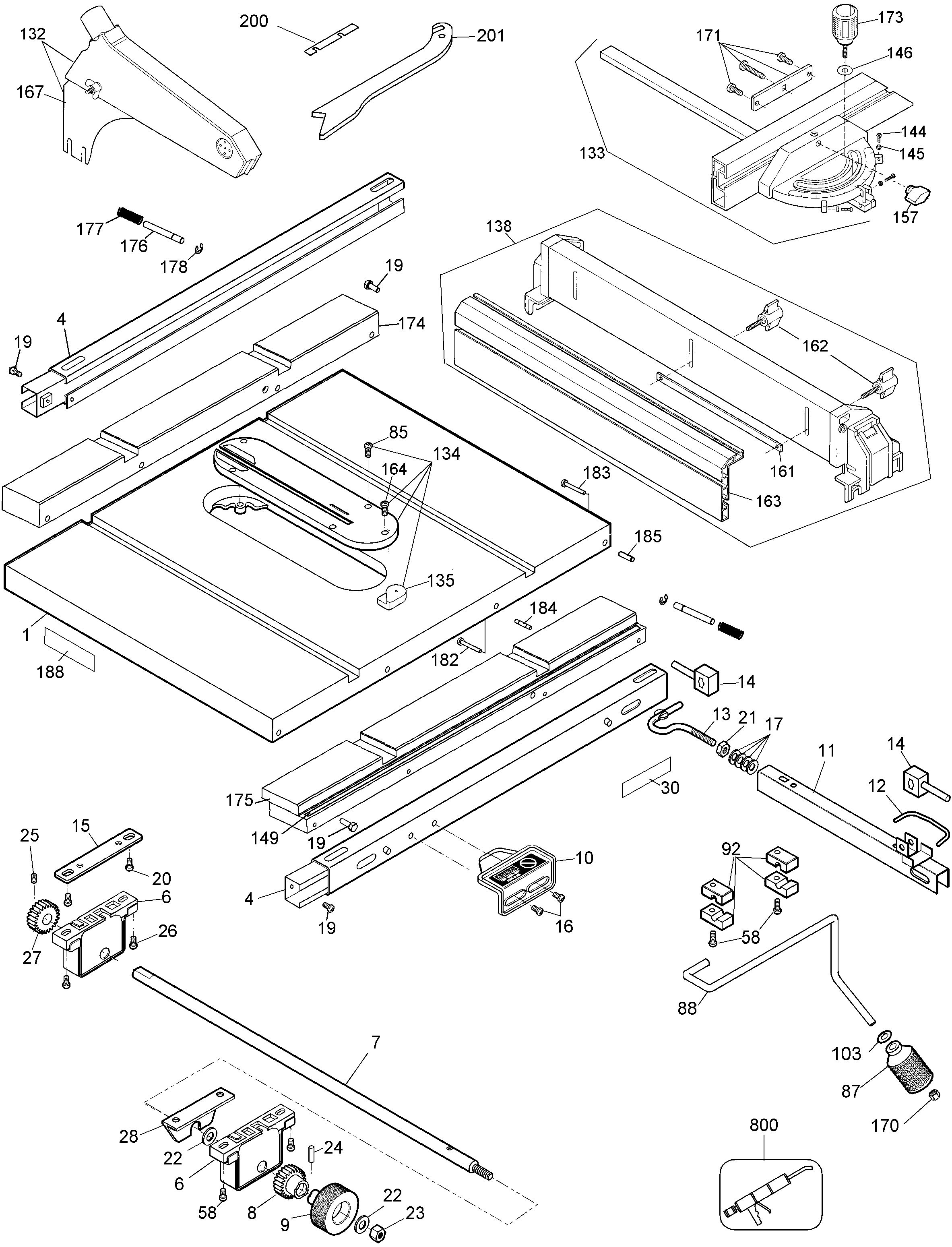

DEWALT TABLE SAW Type 2
SKU Produs: DW744XP
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 330045-13 | 5 | SCREW | 4,57 Lei | |
| 11 | 153381-01 | 1 | ARM DW744 | 26,1 Lei | |
| 12 | 153384-00 | 1 | CLIP DW744 | 5,3 Lei | |
| 16 | 153460-00 | 8 | SCREW DW744 | 4,57 Lei | |
| 17 | 153537-00 | 6 | washer dw744 | 4,7 Lei | |
| 19 | 330045-24 | 10 | SCREW | 4,57 Lei | |
| 22 | 330016-04 | 2 | WASHER, PLAIN, STEEL,10 * 20 * 2.0 THIC | 4,57 Lei | |
| 23 | 330021-03 | 3 | NUT DW744 | 4,7 Lei | |
| 26 | 330045-14 | 4 | SCREW M5X16 T25 | 4,57 Lei | |
| 33 | 153449-00 | 1 | SPACER DW744 | 5,3 Lei | |
| 34 | 330045-47 | 1 | SCREW | 6,4 Lei | |
| 36 | 386158-00 | 1 | BUTTON DW744 | 26,1 Lei | |
| 39 | 153441-00 | 1 | washer dw744 | 4,7 Lei | |
| 45 | 330036-08 | 1 | ROLL PIN | 4,57 Lei | |
| 47 | 153403-01 | 4 | SHIM ETS744 | 5,3 Lei | |
| 50 | 153389-00 | 1 | O RING DW744 | 7,5 Lei | |
| 52 | 701297-00 | 1 | SEAL | 4,57 Lei | |
| 53 | 99180-24 | 1 | SEAL DW290 | 4,7 Lei | |
| 54 | 153431-00 | 4 | SHOE DW744 | 7,5 Lei | |
| 55 | 153432-00 | 4 | SUPPORT DW744 | 4,57 Lei | |
| 57 | 153402-00 | 1 | PIN DW744 | 5,3 Lei | |
| 58 | 330045-16 | 9 | Screw Metal | 4,57 Lei | |
| 60 | 145312-00 | 1 | RUBBER PLUG | 4,57 Lei | |
| 61 | 391317-00 | 1 | FIELDCASE | 57,81 Lei | |
| 62 | 98094-55 | 4 | SCREW | 4,57 Lei | |
| 67 | 144803-00 | 1 | SEAL RING | 4,57 Lei | |
| 68 | 605040-27 | 1 | BALL BEARING | 13,85 Lei | |
| 69 | 605040-20 | 1 | Ball Brg | 17,02 Lei | |
| 72 | 391375-00 | 1 | BAFFLE | 12,71 Lei | |
| 73 | 381028-08 | 2 | BRUSH AND LEAD (single unit) | 57,81 Lei | |
| 74 | 389512-01 | 1 | BRUSH HOLDER NYLON 6 | 80,04 Lei | |
| 76 | 330019-19 | 2 | SCREW, PLASTITE | 5,21 Lei | |
| 77 | 33821-00 | 1 | BUSHING,HEYCO 1247-SR-7W-2 | 5,21 Lei | |
| 79 | 618084-00 | 2 | STOP | 8,8 Lei | |
| 82 | 153637-01 | 2 | SCREW DW744 | 4,7 Lei | |
| 84 | 153401-02 | 1 | POINTER | 7,5 Lei | |
| 85 | 330045-44 | 6 | SCREW, METAL THD FORM, M4X8 T20 | 4,57 Lei | |
| 88 | 391821-00 | 1 | LEVER | 33,2 Lei | |
| 89 | 330015-03 | 1 | NUT,HEX | 4,57 Lei | |
| 90 | 153412-00 | 1 | CRANK KIT | 51 Lei | |
| 94 | 153423-00 | 1 | CLAMP DW744 | 42,9 Lei | |
| 95 | 153405-00 | 1 | SUPPORT DW744 | 26,1 Lei | |
| 97 | 153421-00 | 2 | CAM DW744 | 6,4 Lei | |
| 99 | 153450-00 | 2 | washer dw744 | 4,7 Lei | |
| 100 | 153451-00 | 1 | BEARING THRUST | 5,21 Lei | |
| 103 | 330016-03 | 2 | WASHER, PLAIN. STEEL, 8X16X1.6 THICK | 4,57 Lei | |
| 106 | 153528-00 | 1 | ADAPTOR DW744 | 14,2 Lei | |
| 109 | 330019-13 | 14 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 114 | 153496-00 | 4 | FOOT DW744 | 5,3 Lei | |
| 124 | 330019-03 | 3 | Screw M3.5X16 T15 | 4,57 Lei | |
| 125 | 330016-07 | 2 | WASHER | 4,57 Lei | |
| 126 | 148641-00 | 2 | LOCK NUT | 4,57 Lei | |
| 130 | N377629 | 1 | SWITCH COVER | 13,85 Lei | |
| 135 | 390858-00 | 1 | CAM DW744 | 14,2 Lei | |
| 144 | 330045-08 | 3 | SCREW | 4,57 Lei | |
| 145 | 330015-01 | 3 | NUT | 4,57 Lei | |
| 150 | 330045-05 | 1 | SCREW.TEMP | 4,57 Lei | |
| 157 | 147107-00 | 1 | KNOB | 7,37 Lei | |
| 158 | 145332-00 | 2 | CONTACT | 4,57 Lei | |
| 164 | 330019-12 | 1 | SCREW | 4,57 Lei | |
| 168 | 389198-00 | 4 | SCREW | 6,4 Lei | |
| 170 | 389118-00 | 1 | NUT, FLANGE, PREVAILING TORQUE | 4,7 Lei | |
| 177 | 096723-00 | 2 | SPRING | 4,7 Lei | |
| 179 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 181 | 153781-00 | 1 | LAP WASHER | 6,23 Lei | |
| 182 | 330045-26 | 2 | SCREW | 6,23 Lei | |
| 183 | 330045-29 | 4 | SCREW, TAPTITE M6 * 45 | 17,02 Lei | |
| 187 | 330019-05 | 3 | SCREW PLASTITE M3.5X25 | 4,57 Lei | |
| 191 | 330045-06 | 5 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 193 | 330005-02 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 200 | 385369-00 | 1 | SUPPORT DW744-ETS744 | 127,2 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 800 | 93488-00 | 1 | GREASE DW704 TYPE 3 | 96,56 Lei |
