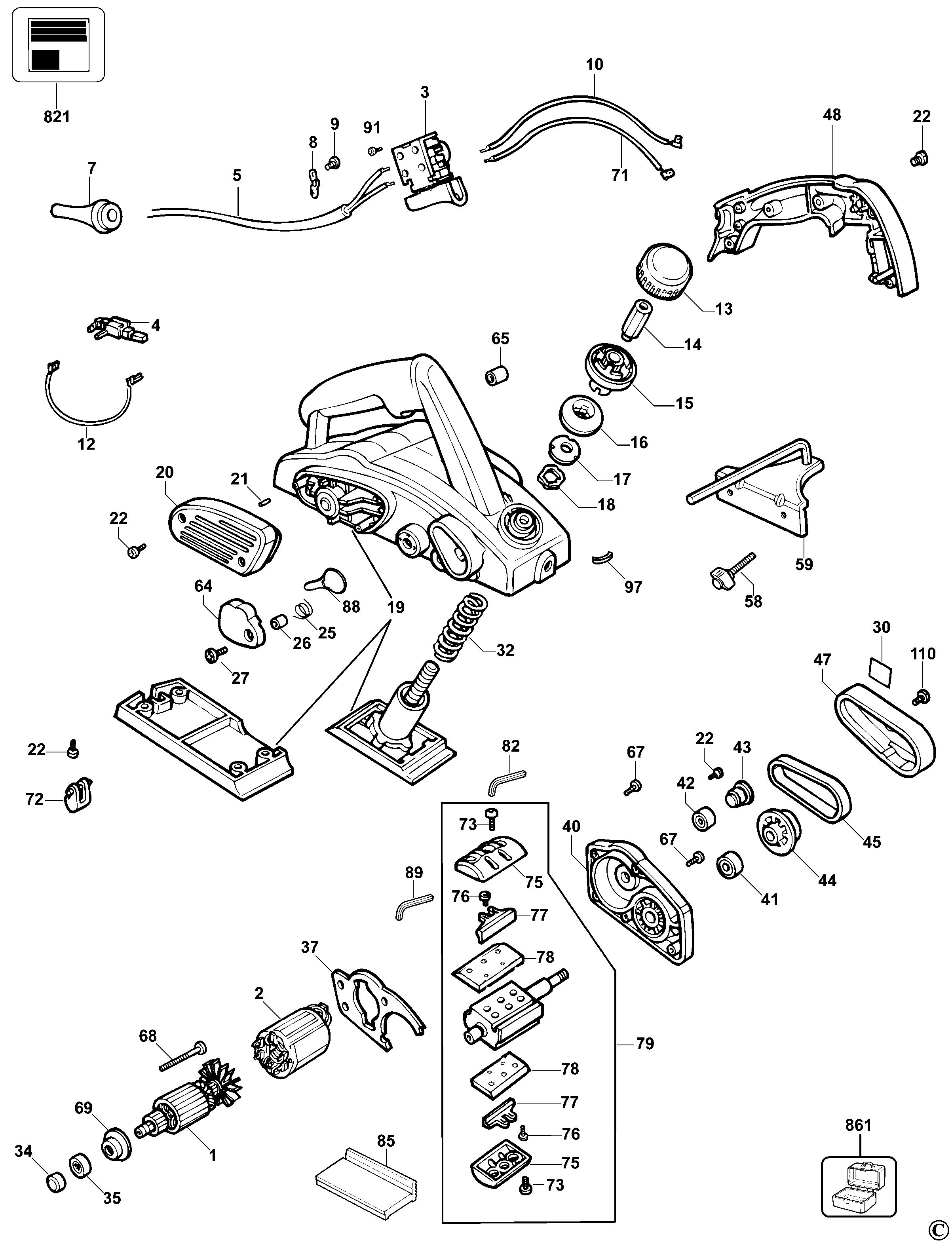

DEWALT PLANER (Type 3)
SKU Produs: DW680 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 7 | 320785 | 1 | PROTECTOR, CORD 8.9 | 6,23 Lei | |
| 8 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 9 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 13 | 326592-00 | 1 | ADJ. KNOB. UP (SUBC) | 21,85 Lei | |
| 14 | 328772-00 | 1 | NUT. ADJUSTMENT M10 X 4 | 6,23 Lei | |
| 15 | 326590-01 | 1 | ADJ. KNOB. DOWN | 10,29 Lei | |
| 17 | 326381-01 | 1 | WASHER. CLUTCHING 1 . 5 | 6,23 Lei | |
| 18 | 327344-00 | 1 | SPRING. WASHER | 5,21 Lei | |
| 19 | 328509-04 | 1 | SA HOUSING, YELLOW ( SERVICE ) | 383,69 Lei | |
| 20 | 326388-00 | 1 | CAP. END DW680 | 12,71 Lei | |
| 21 | 326636-00 | 2 | RUBBERSTOP | 4,57 Lei | |
| 22 | 330065-08 | 16 | SCREW M4X18 | 4,57 Lei | |
| 25 | 323722-00 | 1 | SPRING. TORSION 1 . 0 | 4,57 Lei | |
| 26 | 326823-01 | 1 | SLEEVE. GUIDE | 5,21 Lei | |
| 27 | 326519-01 | 1 | SCREW, PLASTIC 4X16 | 4,57 Lei | |
| 30 | 578758-00 | 1 | LABEL, DEWALT | 4,57 Lei | |
| 32 | 572255-00 | 1 | SPRING, COMPRESSION | 8,64 Lei | |
| 34 | 870052 | 1 | BEARING COVER | 4,57 Lei | |
| 35 | 330003-31 | 1 | BEARING BALL | 17,02 Lei | |
| 37 | 326389-00 | 1 | GUIDE. AIR DW680 | 7,37 Lei | |
| 40 | 327420-00 | 1 | S.A. GEAR CAP | 96,56 Lei | |
| 41 | 330003-21 | 1 | BEARING, BALL | 19,95 Lei | |
| 42 | 605040-05 | 1 | BEARING, BALL CW/MFG | 7,37 Lei | |
| 43 | 329142-00 | 1 | BELT , WHEEL SMALL DW680 | 34,05 Lei | |
| 44 | 329141-00 | 1 | BELT. WHEEL BIG DW680 | 41,93 Lei | |
| 45 | 329140-00 | 1 | BELT. POLY - V | 37,73 Lei | |
| 47 | 329273-00 | 1 | COVER,BELT PLANER (MOULD) | 21,85 Lei | |
| 48 | 326385-01 | 1 | COVER. HANDLE YELLOW | 34,05 Lei | |
| 58 | 326573-01 | 1 | SCREW, WING M6*17 BLACK | 5,21 Lei | |
| 59 | 326398-01 | 1 | PARALLEL FENCE. SILVER | 52,22 Lei | |
| 64 | 327052-00 | 1 | COVER, BLADE PLANER | 6,23 Lei | |
| 65 | 330004-25 | 1 | BEARING NEEDLE | 19,95 Lei | |
| 67 | 330065-04 | 2 | SCREW, PLASTIC 4 * 8 | 4,57 Lei | |
| 68 | 330065-02 | 2 | SCREW. PLASTIC 3.5 X 55 | 5,21 Lei | |
| 69 | 327417-00 | 1 | WASHER INSULATION | 4,57 Lei | |
| 72 | N381124 | 1 | SUPPORT PARKPOSITION | 34,05 Lei | |
| 73 | 574523-00 | 6 | SCREW, M6 X 20 | 4,57 Lei | |
| 75 | 326586-00 | 2 | COVER, BLACK | 30,87 Lei | |
| 97 | 571497-00 | 1 | SLIDE | 4,57 Lei | |
| 110 | 330065-13 | 1 | SCREW PLASTIC 4 X 30FORM 4X 30 | 4,57 Lei | |
| 861 | 578772-54 | 1 | KITBOX, PLANER WITH HANDLE | 145,09 Lei |
