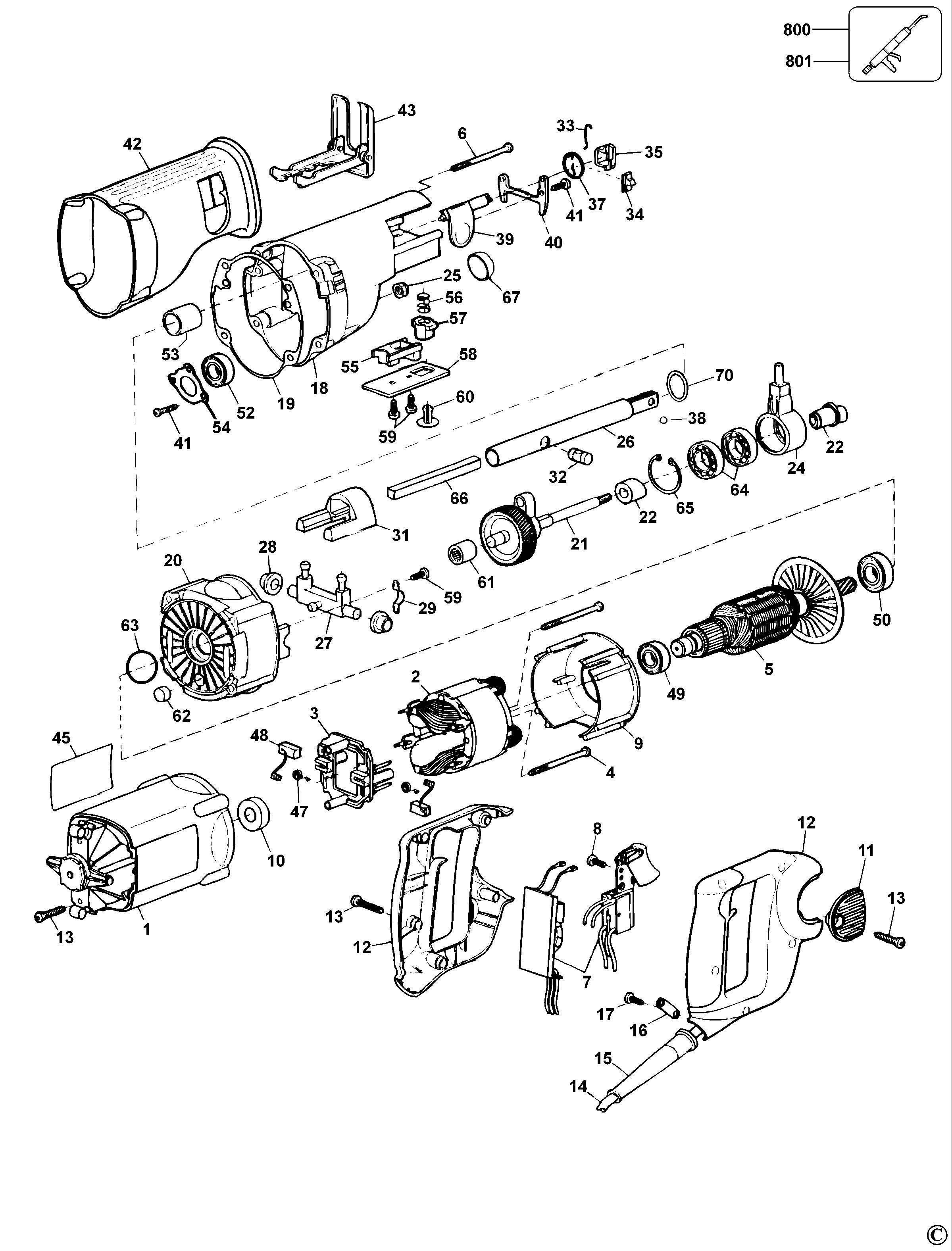

DEWALT CUTSAW (Type 2)
SKU Produs: DW309 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | N402490 | 1 | BRUSH SA | 59,2 Lei | |
| 4 | 330019-19 | 2 | SCREW, PLASTITE | 5,3 Lei | |
| 6 | 330019-34 | 4 | SCREW,PLSTC THD FRM, M4.55X78 T20 | 4,7 Lei | |
| 8 | 330019-01 | 1 | Screw M3.5 X9.5 | 4,7 Lei | |
| 10 | 137382-02 | 1 | SLEEVE | 4,7 Lei | |
| 13 | 330019-13 | 9 | SCREW,PLSTC THD FORM M4X19 T20 | 4,7 Lei | |
| 14 | 330120-86 | 1 | CORD, PWR SPLY EURO | 72 Lei | |
| 15 | N918736 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 17 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,7 Lei | |
| 25 | 330021-07 | 1 | NUT | 4,7 Lei | |
| 33 | 620663-00 | 1 | LOCK PIN | 4,7 Lei | |
| 35 | 604731-00 | 1 | BLADE CLAMP | 42,9 Lei | |
| 37 | 623343-00 | 1 | SPRING | 4,7 Lei | |
| 38 | 000903-00 | 1 | BALL | 38,6 Lei | |
| 41 | 330045-05 | 5 | SCREW.TEMP | 4,7 Lei | |
| 47 | 383387-00 | 2 | BRUSH SPRING DW309K | 13 Lei | |
| 48 | N501035 | 2 | BRUSH 230V | 38,6 Lei | |
| 49 | 605040-20 | 1 | Ball Brg | 17,4 Lei | |
| 50 | 605040-20 | 1 | Ball Brg | 17,4 Lei | |
| 52 | 605040-06 | 1 | BEARING,BALL | 14,2 Lei | |
| 59 | 330045-06 | 6 | SCREW, METAL THD FRM,M4X16 T20 | 4,7 Lei | |
| 61 | 330004-02 | 1 | BEARING, NEEDLE | 8,8 Lei | |
| 63 | 99180-24 | 1 | SEAL DW290 | 4,7 Lei | |
| 64 | 605040-25 | 2 | BEARING, BALL CW MFG | 17,4 Lei | |
| 800 | 429698-00 | 1 | GREASE | 627,4 Lei | |
| 801 | 286436-00 | 1 | RHEOLUBE 380 | 794,6 Lei |
