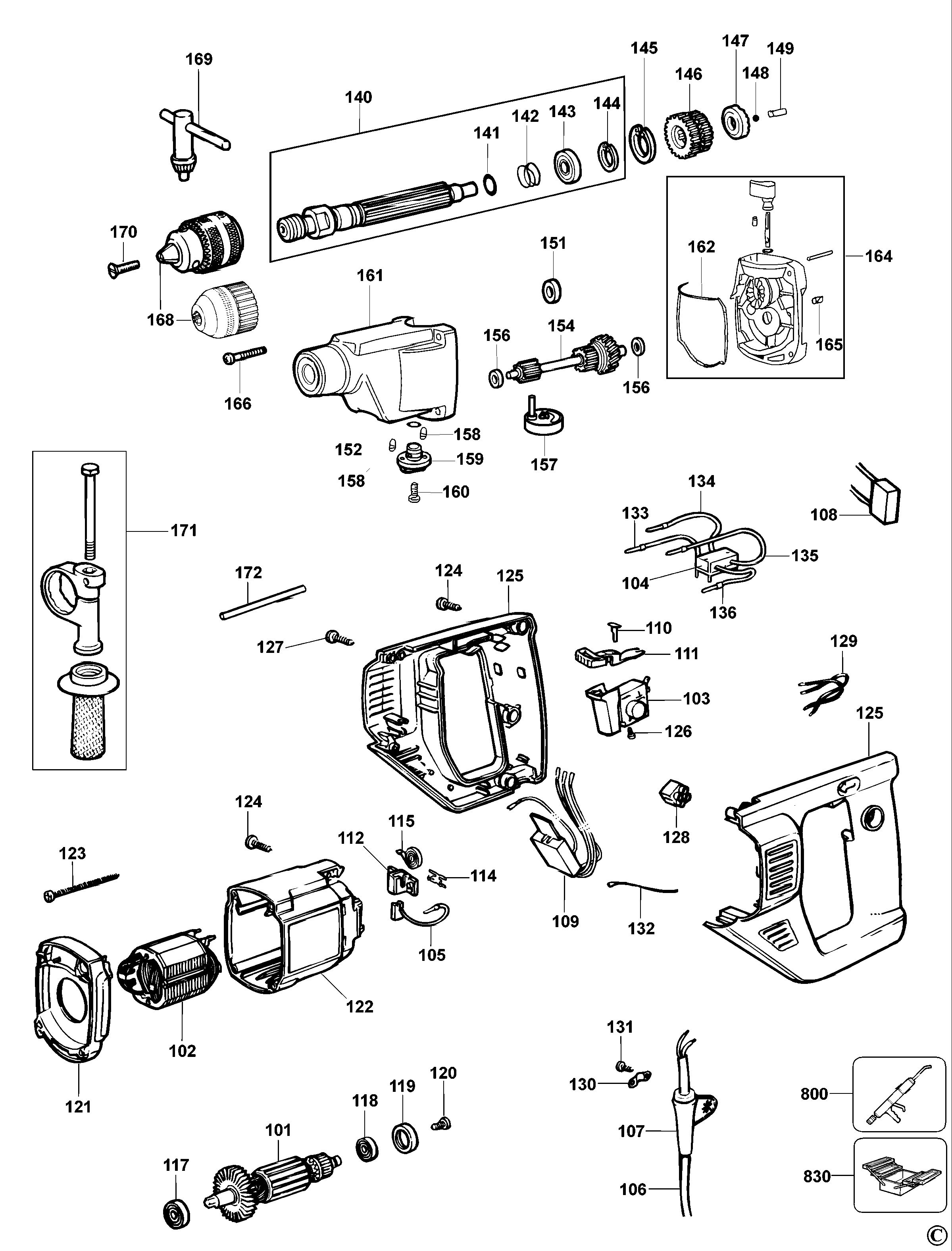

DEWALT HAMMER DRILL (Type 3)
SKU Produs: DW165 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 104 | 324400-00 | 1 | SWITCH - REVERSING. BLACK | 51 Lei | |
| 105 | 323660-00 | 2 | BRUSH 120V SA | 17,02 Lei | |
| 106 | N571221 | 1 | CORDSET QS 3600PCP | 80,04 Lei | |
| 106 | N571224 | 1 | SA CORDSET, POWER SUPPLY | 88,55 Lei | |
| 107 | 770236 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 117 | 605040-05 | 1 | BEARING, BALL CW/MFG | 7,37 Lei | |
| 118 | 330003-19 | 1 | BEARING, BALL | 15,12 Lei | |
| 119 | 870052 | 1 | BEARING COVER | 4,57 Lei | |
| 120 | 329794-00 | 1 | SCREW COLLER 8MM | 4,7 Lei | |
| 126 | 911026 | 3 | SCREW | 4,57 Lei | |
| 127 | 330065-13 | 2 | SCREW PLASTIC 4 X 30FORM 4X 30 | 4,57 Lei | |
| 128 | 323534-00 | 1 | TERMINAL BLOCK | 6,4 Lei | |
| 130 | 821070 | 1 | CLAMP, CORD | 4,57 Lei | |
| 131 | 323924-08 | 2 | SCREW, PLASTIC 5X12 | 4,57 Lei | |
| 132 | 878846 | 1 | SA LEAD WIRE 340MM DW680 230V | 7,37 Lei | |
| 141 | 930028-00 | 1 | O-RING | 4,57 Lei | |
| 142 | 931890 | 1 | SPRING | 4,57 Lei | |
| 143 | 605040-25 | 1 | BEARING, BALL CW MFG | 17,02 Lei | |
| 147 | 945706-00 | 1 | MOVING CLUTCH | 10,29 Lei | |
| 148 | 917725 | 1 | BALL, STEEL | 4,57 Lei | |
| 151 | 1006305-00 | 1 | SEAL, GREASE | 5,21 Lei | |
| 152 | 323711-34 | 1 | "O RING, 9 X 1.5" | 4,57 Lei | |
| 156 | 930102-00 | 2 | WASHER UNI6593 | 4,7 Lei | |
| 158 | 326467-00 | 2 | DETENT | 4,57 Lei | |
| 160 | 330065-22 | 1 | SCREW | 4,57 Lei | |
| 166 | 330065-11 | 4 | SCREW, PLASTIC THREAD FORM 4.0*65 | 4,57 Lei | |
| 168 | 5140071-68 | 1 | CHUCK AND KEY | 52,22 Lei | |
| 168 | 586200-01 | 1 | CHUCK KEYLESS | 246 Lei | |
| 169 | 330034-07 | 1 | Drill Chuck Key | 6,23 Lei | |
| 171 | 939794-02 | 1 | HANDLE SIDE | 52,22 Lei | |
| 172 | 580787-00 | 1 | DEPTH STOP | 6,23 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 830 | 559596-99 | 1 | SERVICE TOOL | 293,23 Lei |
