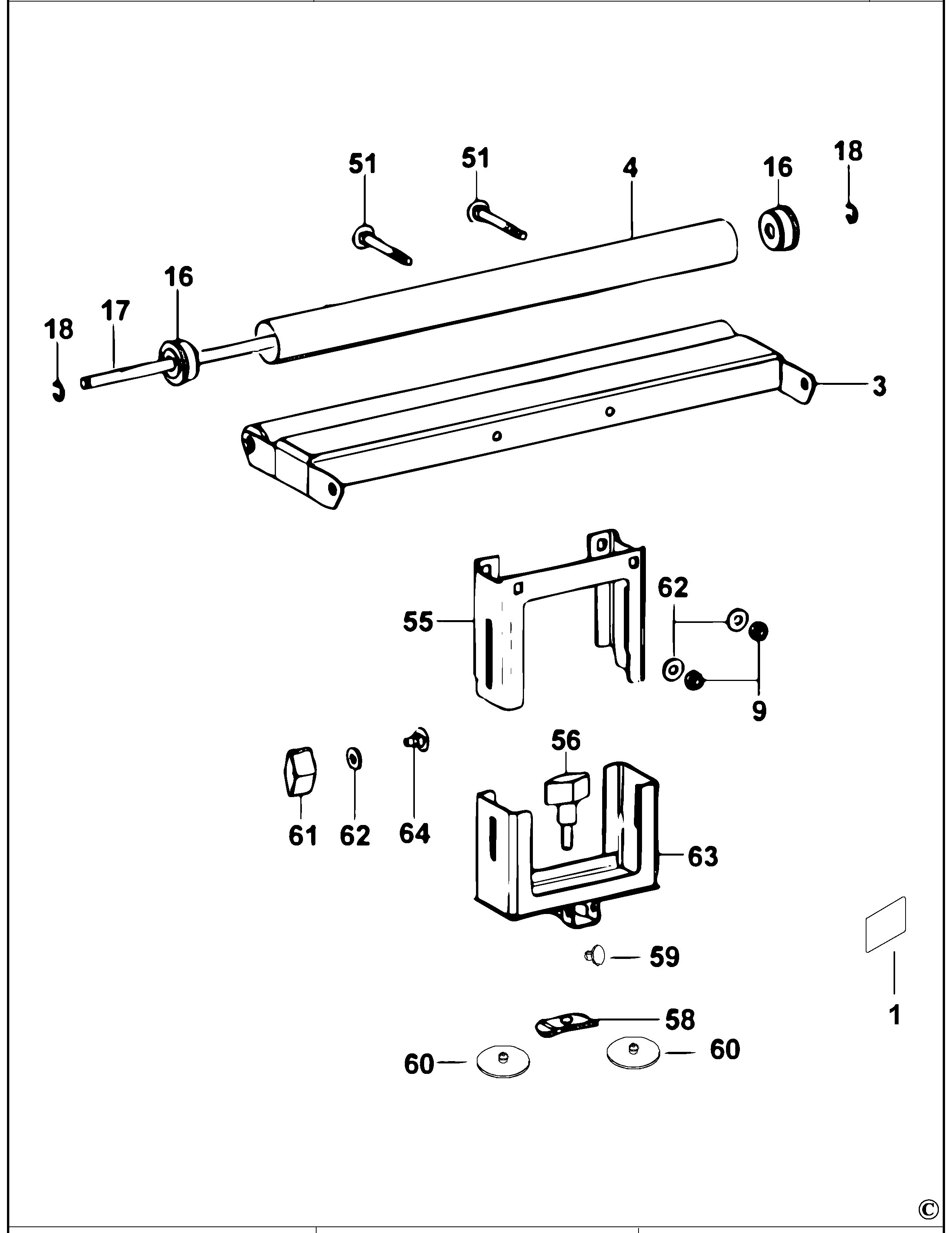

DEWALT ROLLER SUPPORT (Type 3)
SKU Produs: DE7027 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N217780 | 1 | RATING PLATE | 4,57 Lei | |
| 3 | N090262 | 1 | SUPPORT BRACKET | 195,02 Lei | |
| 4 | N090269 | 2 | ROLLER | 96,56 Lei | |
| 9 | 330021-01 | 2 | NUT, 6KT M6 ISO7040 | 17,02 Lei | |
| 16 | N090271 | 4 | END CAP | 19,95 Lei | |
| 17 | N090270 | 1 | SHAFT | 52,22 Lei | |
| 18 | 658121-00 | 1 | RING | 6,23 Lei | |
| 51 | N087382 | 2 | CARRIAGE BOLT | 7,37 Lei | |
| 55 | N087377 | 1 | SUPPORT BRACKET | 25,54 Lei | |
| 56 | N087376 | 1 | KNOB | 21,85 Lei | |
| 58 | N087375 | 1 | BAR LOCKING | 15,12 Lei | |
| 59 | N087373 | 4 | PLASTIC INSERT | 6,23 Lei | |
| 60 | N087374 | 2 | PLASTIC INSERT | 6,23 Lei | |
| 61 | N087378 | 2 | KNOB | 17,02 Lei | |
| 62 | N087248 | 4 | WASHER | 6,23 Lei | |
| 63 | N087402 | 1 | BASE BRACKET | 106,98 Lei | |
| 64 | N087380 | 2 | SCREW | 7,37 Lei |
