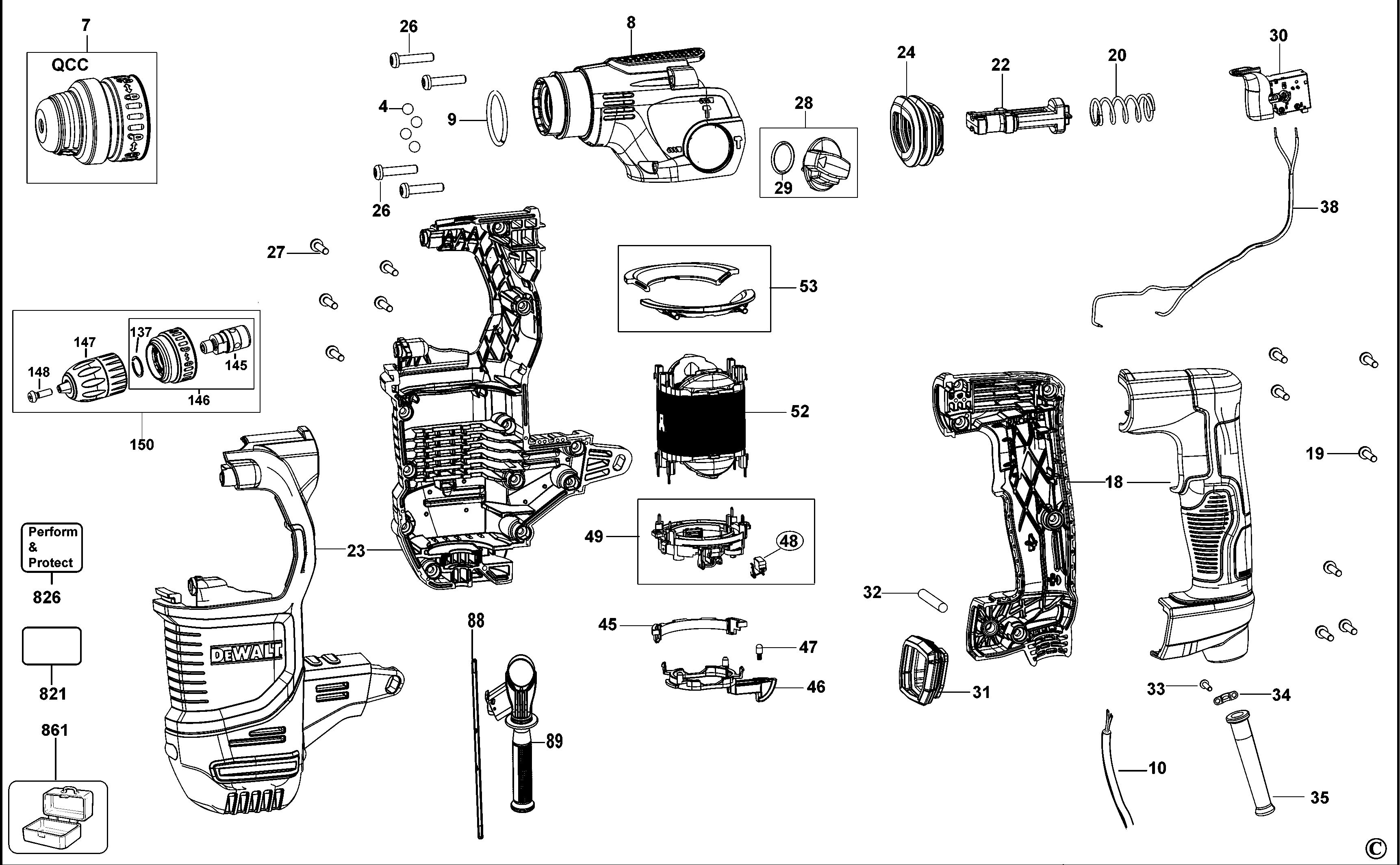

DEWALT HAMMER DRILL (Type 2)
SKU Produs: D25334K /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 4 | 583890-00 | 5 | BALL 7.0 | 5,21 Lei | |
| 7 | N591846 | 1 | SA TOOLHOLDER QCC SERVICE | 264,01 Lei | |
| 8 | N544184 | 1 | SA FRONT HSG+SEAL+BEARINGS (SERVICE) | 130,35 Lei | |
| 9 | 577795-00 | 1 | RING, SNAP 32 | 4,57 Lei | |
| 10 | 582319-31 | 1 | CORDSET QS | 70,39 Lei | |
| 18 | N544046 | 1 | SA HANDLE SET SCH (SERVICE) | 70,39 Lei | |
| 19 | 330019-80 | 5 | SCREW PLSTIC THD FORM M4.06X18 | 4,57 Lei | |
| 20 | N106188 | 1 | SPRING, AV 4KG HANDLE | 6,23 Lei | |
| 22 | N152623 | 1 | LIMIT STOP | 25,54 Lei | |
| 23 | N544064 | 1 | SA MOTOR HSG AC (SERVICE) | 96,56 Lei | |
| 24 | N106221-01 | 1 | BELLOWS | 19,95 Lei | |
| 26 | 330019-20 | 4 | SCREW | 4,57 Lei | |
| 27 | 330019-80 | 11 | SCREW PLSTIC THD FORM M4.06X18 | 4,57 Lei | |
| 28 | N267567 | 1 | SELECTOR SA | 17,02 Lei | |
| 29 | N091381-00 | 1 | O RING | 4,57 Lei | |
| 30 | N364920 | 1 | SWITCH DGQ HV W/O LOCK ON (SERVICE) | 88,55 Lei | |
| 31 | N106222 | 1 | LOWER FOLD BELLOW, 4KG | 17,02 Lei | |
| 32 | N159443 | 1 | AXIS | 6,23 Lei | |
| 33 | 330019-80 | 2 | SCREW PLSTIC THD FORM M4.06X18 | 4,57 Lei | |
| 34 | 821070 | 1 | CLAMP, CORD | 4,57 Lei | |
| 35 | NA073534 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 36 | N412167 | 1 | O RING | 7,37 Lei | |
| 37 | N544185 | 1 | SA MAIN SPINDLE 3KG QCC KIT (SERVICE) | 181,55 Lei | |
| 38 | N466472 | 1 | SA WIRE HARNESS, SDS-PLUS HAMMER | 17,02 Lei | |
| 39 | N406771 | 1 | BEVEL GEAR | 57,81 Lei | |
| 40 | 479478-00 | 1 | BEARING, BALL 6906 | 34,05 Lei | |
| 40 | 479516-00 | 1 | HAMMER PIN | 13,85 Lei | |
| 42 | N421627 | 2 | O RING | 13,85 Lei | |
| 43 | N395027 | 2 | WASHER | 5,21 Lei | |
| 44 | N422601 | 2 | CIRCLIP | 7,37 Lei | |
| 45 | N231636 | 1 | WIRE HARNESS FIXING SUPPORT (MOULD) | 12,71 Lei | |
| 46 | N453264 | 1 | e2-6 | 8,64 Lei | |
| 47 | 326467-00 | 1 | DETENT | 4,57 Lei | |
| 48 | N544178 | 1 | SA BRUSH L26 F12 KIT (SERVICE) | 30,87 Lei | |
| 49 | N544068 | 1 | SA ROTAT BRUSH BRIDGE+BRUSHES (SERVICE) | 145,09 Lei | |
| 50 | N584772 | 1 | SERVICE KIT SA ARMATURE +MOTOR PLATE 23O | 383,69 Lei | |
| 51 | 605040-02 | 1 | BEARING | 12,71 Lei | |
| 52 | N544427 | 1 | SERVICE KIT SA FIELD SQ59X40 230V | 106,98 Lei | |
| 53 | N588464 | 1 | 2ERVICE KIT FAN BAFFLE -SDS PL | 21,85 Lei | |
| 53 | N588663 | 1 | RATING PLATE | 4,5 Lei | |
| 54 | 870052 | 1 | BEARING COVER | 4,57 Lei | |
| 56 | N433272 | 1 | SEAL SA | 13,5 Lei | |
| 57 | N374339 | 1 | INSERT | 15,12 Lei | |
| 58 | N038257 | 1 | FELT | 4,57 Lei | |
| 59 | N616792 | 1 | GEARCASE SA | 451,79 Lei | |
| 60 | 324006-15 | 8 | SCREW ,TAPTITE M4X20 ANU LOCK | 4,57 Lei | |
| 62 | N459291 | 1 | BEATPIECE 3KG QCC 2 | 57,81 Lei | |
| 63 | N388939 | 1 | WASHER | 10,29 Lei | |
| 64 | N412168 | 1 | O RING | 34,05 Lei | |
| 65 | N413186 | 1 | CIRCLIP | 4,57 Lei | |
| 66 | N394408 | 2 | O RING | 7,37 Lei | |
| 68 | N517447 | 1 | PISTON | 22,4 Lei | |
| 69 | N123257 | 1 | PIN | 15,12 Lei | |
| 70 | N390874 | 1 | CON ROD | 7,5 Lei | |
| 71 | N505552 | 1 | PISTON KIT | 123,6 Lei | |
| 72 | N505553 | 1 | RAM SA | 52,22 Lei | |
| 73 | N431392 | 1 | PLATE | 15,12 Lei | |
| 74 | N663642 | 1 | SPRING | 4,5 Lei | |
| 75 | N433763 | 1 | PIN | 5,21 Lei | |
| 76 | N502900 | 1 | WASHER | 8,64 Lei | |
| 77 | N605730 | 1 | CLUTCH SA | 264,01 Lei | |
| 78 | N452829 | 1 | CRANKSHAFT | 88,55 Lei | |
| 79 | N427179 | 1 | BEARING | 70,39 Lei | |
| 80 | N453028 | 1 | CLIP | 12,71 Lei | |
| 81 | N505555 | 1 | CRANKSHAFT | 195,02 Lei | |
| 82 | N264669 | 1 | COLLAR | 17,02 Lei | |
| 83 | 323763-10 | 1 | RING. SNAP 8 | 4,57 Lei | |
| 84 | N427177 | 2 | BEARING CAGE | 13,85 Lei | |
| 85 | N433668 | 1 | BUSH | 4,57 Lei | |
| 86 | N593071 | 1 | TRANSMISSION SA | 264,01 Lei | |
| 87 | N110358 | 1 | BEARING | 17,02 Lei | |
| 88 | 798846-02 | 1 | DEPTH STOP | 7,37 Lei | |
| 89 | N413662 | 1 | HANDLE SIDE SA | 106,98 Lei | |
| 90 | N513678 | 1 | GEAR SA | 218,1 Lei | |
| 91 | N423558 | 1 | O RING | 5,3 Lei | |
| 91 | N423558 | 2 | O RING | 5,3 Lei | |
| 94 | 324006-14 | 2 | SCREW,TAPTITE M4X10 ANU-LOCK | 4,57 Lei | |
| 96 | N468472 | 8 | PIN | 5,21 Lei | |
| 97 | N783458 | 1 | SPINDLE | 96,56 Lei | |
| 98 | N467014 | 2 | RETAINER | 5,21 Lei | |
| 99 | N502900 | 1 | WASHER | 8,64 Lei | |
| 137 | N515033 | 1 | SA C-CLIP 21 4KG HAMMERS (SERVICE) | 52,22 Lei | |
| 145 | N403112 | 1 | SPINDLE | 70,39 Lei | |
| 146 | N403284 | 1 | SPINDLE SA | 120,82 Lei | |
| 147 | 582512-02 | 1 | CHUCK, KEYLESS 1/2 INCH UNF 2 SLEEVE | 130,35 Lei | |
| 148 | 605256-02 | 1 | SCREW, CHUCK (1/4-28 UNF-LH) | 4,57 Lei | |
| 150 | N403113 | 1 | CHUCK AND SPINDLE SA | 169,36 Lei | |
| 800 | 578970-04 | 1 | GLK FLUID 249 PLUS NLGI 00 | 127,2 Lei | |
| 800 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 801 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei | |
| 821 | N579002 | 1 | RATING LABEL D25334-QS-TY2 | 13 Lei | |
| 837 | 1003968-99 | 1 | S.T.CIRCLIP INSERTER | 252,96 Lei | |
| 837 | 1003969-99 | 1 | S.T.CIRCLIP INSERTER | 255,37 Lei | |
| 838 | 1003967-99 | 1 | S.T.CIRCLIP INSERTER | 133,66 Lei | |
| 839 | 1003970-99 | 1 | S.T.DIS-ASSEMBLY JIG | 47,26 Lei | |
| 861 | N506514 | 1 | ZRP3 BT KITBOX NAKED | 120,82 Lei |
