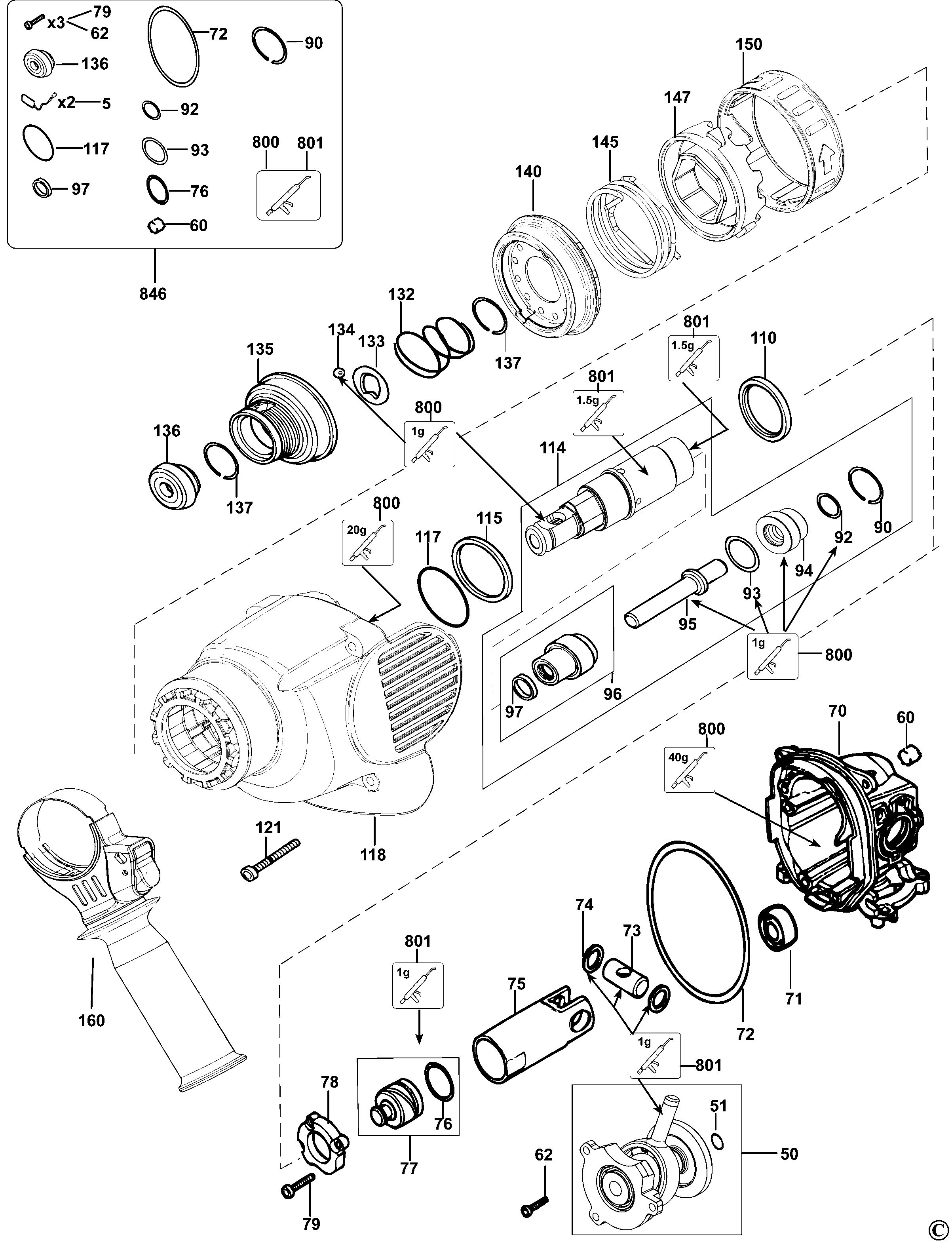

DEWALT CHIPPING HAMMER (Type 2)
SKU Produs: D25330K /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 576690-05 | 1 | SA FIELD ( SERVICE ) | 109,5 Lei | |
| 3 | 588724-00 | 1 | SWITCH, CHIPPER 230V | 173,3 Lei | |
| 5 | 584429-00 | 1 | BRUSH PAIR 230V SA (SUBA) | 59,2 Lei | |
| 6 | 320842-19 | 1 | CAPACITOR, 0.22uF | 7,5 Lei | |
| 7 | NA073534 | 1 | CORD PROTECTOR | 7,5 Lei | |
| 8 | 582319-17 | 1 | CORDSET, QS CHIPPER | 98,8 Lei | |
| 12 | 584304-10 | 1 | LEAD WIRE MQ BLUE /125/FSH3/FST | 7,5 Lei | |
| 16 | 582064-16 | 1 | LEADWIRE,BLUE 300/FSH/FST LONG | 8,8 Lei | |
| 18 | 930026-01 | 1 | BUMPER SPONGE | 4,7 Lei | |
| 19 | 588902-00 | 1 | LOCK BAR CHIPPER | 13,5 Lei | |
| 20 | 578220-00 | 1 | LEVER, FORWARD/REVERSE BLACK | 5,3 Lei | |
| 21 | 870052 | 1 | BEARING COVER | 4,7 Lei | |
| 22 | 579720-00 | 1 | BUSH, SCREW DOME | 17,4 Lei | |
| 23 | 326519-03 | 2 | SCREW, PLASTIC 3.5 X 30, COMBI TORX | 4,7 Lei | |
| 24 | 330003-19 | 1 | BEARING, BALL | 15,5 Lei | |
| 25 | 330003-64 | 1 | BEARING, BALL | 31,6 Lei | |
| 28 | 582877-00 | 1 | COVER, TOP | 7,5 Lei | |
| 30 | 577986-20 | 1 | HOUSING, MAIN, DEWALT YELLOW | 34,8 Lei | |
| 31 | 581808-00 | 1 | BAFFLE FAN L-SHAPE REVERSE (MOULD) | 15,5 Lei | |
| 32 | 577993-00 | 1 | HOUSING, MOTOR, DW YELLOW | 59,2 Lei | |
| 34 | 588675-00 | 1 | COVER, REAR HANDLE MILLED | 68,7 Lei | |
| 35 | 330065-08 | 6 | SCREW M4X18 | 4,7 Lei | |
| 36 | 821070 | 1 | CLAMP, CORD | 4,7 Lei | |
| 37 | 330065-09 | 1 | SCREW PLSTC THD FORM M4X25 T20 | 4,7 Lei | |
| 39 | 330065-26 | 4 | SCREW, PLASTIC THREAD FORM, M4 * 62 T20 | 4,7 Lei | |
| 40 | 330065-25 | 2 | SCREW PLSTC THD FORM M3X9 T10 | 4,7 Lei | |
| 51 | 580908-00 | 1 | O-RING, 7.5 * 1.0 | 4,5 Lei | |
| 60 | 582865-00 | 1 | FELT | 5,3 Lei | |
| 62 | 583981-00 | 3 | SCREW,TAPTITE 4 * 16 | 4,7 Lei | |
| 70 | 477212-00 | 1 | BEARING HOUSING, PACKED (SERVICE) | 127,2 Lei | |
| 71 | 330003-81 | 1 | BEARING, BALL | 22,4 Lei | |
| 72 | 578229-00 | 1 | O-RING SEAL | 6,4 Lei | |
| 73 | 577801-00 | 1 | BEARING BOLT-1 | 22,4 Lei | |
| 75 | 496246-00 | 1 | SA HOLLOW PISTON (SERVICE) | 81,9 Lei | |
| 76 | 579699-00 | 1 | O-RING 16X3 | 7,5 Lei | |
| 77 | 496245-00 | 1 | SA RAM (SERVICE) | 59,2 Lei | |
| 78 | N042808 | 1 | BEARING, SPINDLE | 20,4 Lei | |
| 79 | 324006-15 | 3 | SCREW ,TAPTITE M4X20 ANU LOCK | 4,7 Lei | |
| 90 | 577793-00 | 1 | RING SNAP | 4,7 Lei | |
| 92 | 580990-00 | 1 | RING RAMCATCHER | 8,8 Lei | |
| 93 | 577135-00 | 1 | O-RING 19.5X3.5 | 7,5 Lei | |
| 94 | 477215-00 | 1 | BUSH, RAM CATCHER CHIPPER (SERVICE) | 72 Lei | |
| 95 | 584424-01 | 1 | BEAT PIECE, QCC PACKED FOR SERVICE | 38,6 Lei | |
| 96 | 477216-00 | 1 | SA BEARING BEATPIECE QCC (SERVICE) | 109,5 Lei | |
| 97 | 577139-00 | 1 | SEAL | 7,5 Lei | |
| 110 | 577797-00 | 1 | RING, WASHER | 8,4 Lei | |
| 114 | 477217-00 | 1 | SA SPINDLE, CHIPPER (SERVICE) | 462,3 Lei | |
| 115 | 577814-00 | 1 | WASHER SPINDLE | 13 Lei | |
| 117 | 589186-00 | 1 | O-RING SPINDLE CHIPPER | 22,4 Lei | |
| 118 | 477218-00 | 1 | SA GEARCASE, CHIPPER (SERVICE) | 94,2 Lei | |
| 121 | 330065-28 | 4 | SCREW PLSTC THD FORM M4X30 T20 | 4,7 Lei | |
| 132 | 871690 | 1 | SPRING BEVEL | 4,7 Lei | |
| 133 | 578387-00 | 1 | SDS BALL PLATE (WASHER SDS 1.4MM) | 7,5 Lei | |
| 134 | 583890-00 | 1 | BALL 7.0 | 5,3 Lei | |
| 135 | N774198 | 1 | TUBE SA | 42,9 Lei | |
| 136 | 323489-00 | 1 | CAP | 7,5 Lei | |
| 137 | 579212-00 | 2 | RING SNAP 21 | 5,3 Lei | |
| 140 | 586892-00 | 1 | SLEEVE CHUCK CHIPPER | 42,9 Lei | |
| 145 | 586893-00 | 1 | SPRING CHUCK CHIPPER | 10,5 Lei | |
| 147 | 586894-00 | 1 | RING LOCK, CHIPPER | 14,2 Lei | |
| 150 | 586891-00 | 1 | SLEEVE TURNING, CHIPPER | 17,4 Lei | |
| 160 | 494661-00 | 1 | SA SIDE HANDLE D25112/113K | 72 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 53,4 Lei | |
| 801 | 487130-04 | 1 | GREASE,GLK FLUID, 10G SACHET - SERVICE | 26,1 Lei | |
| 846 | 477245-00 | 1 | 230V SERVICE KIT, D25330K | 185,8 Lei | |
| 861 | 578005-00 | 1 | KIT BOX, NR.4 (MOULD) | 141,6 Lei |
