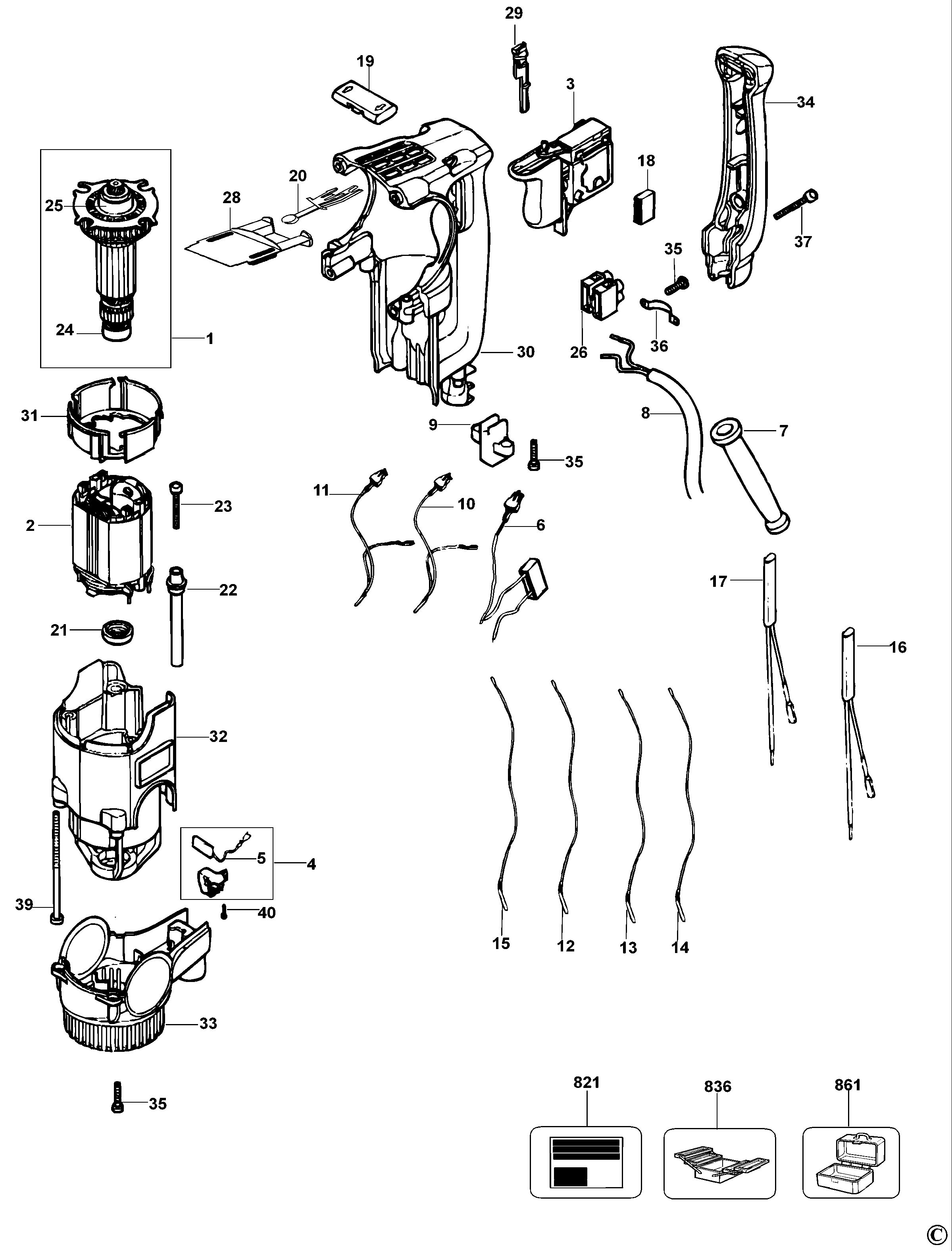

DEWALT HAMMER (Type 3)
SKU Produs: D25303K /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 576690-05 | 1 | SA FIELD ( SERVICE ) | 109,5 Lei | |
| 3 | 583748-08 | 1 | SWITCH, 230V NO LOCK-ON | 123,6 Lei | |
| 5 | 584429-00 | 1 | BRUSH PAIR 230V SA (SUBA) | 59,2 Lei | |
| 6 | 487505-00 | 1 | LV WIRE, XY CAP | 53,4 Lei | |
| 7 | NA073534 | 1 | CORD PROTECTOR | 7,5 Lei | |
| 8 | 582319-03 | 1 | CORDSET,QS 5000 | 109,5 Lei | |
| 9 | 578222-00 | 1 | PLUG, INTERFACE | 6,4 Lei | |
| 10 | 582064-23 | 1 | LEADWIRE FOR D25304 | 10,5 Lei | |
| 11 | 582064-24 | 1 | LEADWIRE FOR D25304 | 10,5 Lei | |
| 12 | 582064-15 | 1 | LEADWIRE,VIOLET 300/FSH/FST LONG | 8,8 Lei | |
| 14 | 582064-16 | 1 | LEADWIRE,BLUE 300/FSH/FST LONG | 8,8 Lei | |
| 15 | 582064-20 | 1 | LEADWIRE,BLACK 310/FSH2/FST | 7,5 Lei | |
| 16 | 582064-14 | 1 | LEADWIRE,RED W/CHOKE 300/105/FSH/SH | 22,4 Lei | |
| 17 | 582064-13 | 1 | LEADWIRE,YELLOW W/CHOKE 310/95/FSH/FSH | 22,4 Lei | |
| 18 | 930026-01 | 1 | BUMPER SPONGE | 4,7 Lei | |
| 19 | 578218-00 | 1 | BAR, FOWARD/REVERSE BLACK | 7,5 Lei | |
| 20 | 578220-00 | 1 | LEVER, FORWARD/REVERSE BLACK | 5,3 Lei | |
| 21 | 870052 | 1 | BEARING COVER | 4,7 Lei | |
| 22 | 579720-00 | 1 | BUSH, SCREW DOME | 17,4 Lei | |
| 23 | 326519-03 | 2 | SCREW, PLASTIC 3.5 X 30, COMBI TORX | 4,7 Lei | |
| 24 | 330003-19 | 1 | BEARING, BALL | 15,5 Lei | |
| 25 | 330003-64 | 1 | BEARING, BALL | 31,6 Lei | |
| 26 | 323534-00 | 1 | TERMINAL BLOCK | 6,4 Lei | |
| 28 | 582877-00 | 1 | COVER, TOP | 7,5 Lei | |
| 29 | 584551-00 | 1 | PIN REVERSE MQ | 10,5 Lei | |
| 30 | 577986-20 | 1 | HOUSING, MAIN, DEWALT YELLOW | 34,8 Lei | |
| 31 | 581808-00 | 1 | BAFFLE FAN L-SHAPE REVERSE (MOULD) | 15,5 Lei | |
| 32 | 577993-00 | 1 | HOUSING, MOTOR, DW YELLOW | 59,2 Lei | |
| 34 | 577987-10 | 1 | COVER, HANDLE REAR, BLACK MQ | 42,9 Lei | |
| 35 | 330065-08 | 8 | SCREW M4X18 | 4,7 Lei | |
| 36 | 821070 | 1 | CLAMP, CORD | 4,7 Lei | |
| 37 | 330065-13 | 1 | SCREW PLASTIC 4 X 30FORM 4X 30 | 4,7 Lei | |
| 39 | 330065-26 | 4 | SCREW, PLASTIC THREAD FORM, M4 * 62 T20 | 4,7 Lei | |
| 40 | 330065-25 | 2 | SCREW PLSTC THD FORM M3X9 T10 | 4,7 Lei | |
| 45 | 577791-00 | 1 | O-RING,45 2 | 4,7 Lei | |
| 51 | 580908-00 | 1 | O-RING, 7.5 * 1.0 | 4,5 Lei | |
| 52 | 578271-00 | 1 | SWITCHPLATE | 17,4 Lei | |
| 53 | 579564-00 | 1 | HOLDER, SWITCHPLATE (MOULD) | 10,5 Lei | |
| 54 | 579552-00 | 1 | LEVER, MODE SELECTOR | 20,4 Lei | |
| 55 | 584638-00 | 1 | O-RING,14.0 X 2.0 | 4,7 Lei | |
| 56 | 587269-00 | 1 | LEVER, GEAR MODE | 4,7 Lei | |
| 58 | 579184-00 | 1 | MODE, SELECTOR LOCK | 4,7 Lei | |
| 59 | 579179-00 | 1 | SPRING, SWITCHMODE LOCK | 4,7 Lei | |
| 60 | 582865-00 | 1 | FELT | 5,3 Lei | |
| 61 | 579185-00 | 1 | MODE, SELECTOR CAP | 8,8 Lei | |
| 62 | 583981-00 | 3 | SCREW,TAPTITE 4 * 16 | 4,7 Lei | |
| 71 | 330003-81 | 1 | BEARING, BALL | 22,4 Lei | |
| 72 | 578229-00 | 1 | O-RING SEAL | 6,4 Lei | |
| 73 | 577801-00 | 1 | BEARING BOLT-1 | 22,4 Lei | |
| 75 | 584420-00 | 1 | PISTON, HOLLOW PACKED FOR SERVICE | 81,9 Lei | |
| 76 | 579699-00 | 1 | O-RING 16X3 | 7,5 Lei | |
| 78 | N042808 | 1 | BEARING, SPINDLE | 20,4 Lei | |
| 79 | 324006-15 | 3 | SCREW ,TAPTITE M4X20 ANU LOCK | 4,7 Lei | |
| 80 | 587252-00 | 1 | FELT, MODE SELECTOR | 4,5 Lei | |
| 90 | 577793-00 | 1 | RING SNAP | 4,7 Lei | |
| 91 | 584426-00 | 1 | SA RAM CATCHER, PACKED FOR SERVICE | 31,6 Lei | |
| 92 | 580990-00 | 1 | RING RAMCATCHER | 8,8 Lei | |
| 93 | 577135-00 | 1 | O-RING 19.5X3.5 | 7,5 Lei | |
| 94 | 584425-00 | 1 | BUSH, DAMPER PACKED FOR SERVICE | 38,6 Lei | |
| 95 | 584424-00 | 1 | BEAT PIECE, NQCC PACKED FOR SERVICE | 42,9 Lei | |
| 96 | 584423-00 | 1 | SA BEARING, BEATPIECE NQCC PACKED | 81,9 Lei | |
| 97 | 577139-00 | 1 | SEAL | 7,5 Lei | |
| 110 | 577797-00 | 1 | RING, WASHER | 8,4 Lei | |
| 111 | 577744-00 | 1 | O RING, 26 X 2 HNBR | 13 Lei | |
| 112 | 587482-00 | 1 | SA CLUTCH, PACKED | 161,6 Lei | |
| 113 | 579178-00 | 1 | SPRING, SWITCHMODE WHEEL | 7,5 Lei | |
| 114 | 584422-00 | 1 | SPINDLE, NQCC PACKED FOR SERVICE | 218,1 Lei | |
| 115 | 577814-00 | 1 | WASHER SPINDLE | 13 Lei | |
| 116 | 330065-05 | 2 | SCEW PLSTC THD FORM M4X10 T20 | 4,7 Lei | |
| 117 | 580291-00 | 1 | LOCK PLATE, SPINDLE | 13 Lei | |
| 118 | 584433-00 | 1 | HOUSING SA | 148,5 Lei | |
| 121 | 330065-13 | 4 | SCREW PLASTIC 4 X 30FORM 4X 30 | 4,7 Lei | |
| 132 | 871690 | 1 | SPRING BEVEL | 4,7 Lei | |
| 133 | 578387-00 | 1 | SDS BALL PLATE (WASHER SDS 1.4MM) | 7,5 Lei | |
| 134 | 583890-00 | 1 | BALL 7.0 | 5,3 Lei | |
| 135 | N504215 | 1 | TUBE | 26,1 Lei | |
| 136 | 323489-00 | 1 | CAP | 7,5 Lei | |
| 160 | 589467-00 | 1 | SA SIDE HANDLE | 34,8 Lei | |
| 170 | 798846-02 | 1 | DEPTH STOP | 7,5 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 53,4 Lei | |
| 801 | 487130-04 | 1 | GREASE,GLK FLUID, 10G SACHET - SERVICE | 26,1 Lei | |
| 821 | 569037-00 | 1 | RATING PLATE, DeWALT, BLANK | 17,4 Lei | |
| 836 | 559638-99 | 1 | SERVICE TOOL | 97,5 Lei | |
| 846 | 585146-00 | 1 | SERVICE KIT 230V | 190,3 Lei | |
| 861 | 578005-00 | 1 | KIT BOX, NR.4 (MOULD) | 141,6 Lei |
