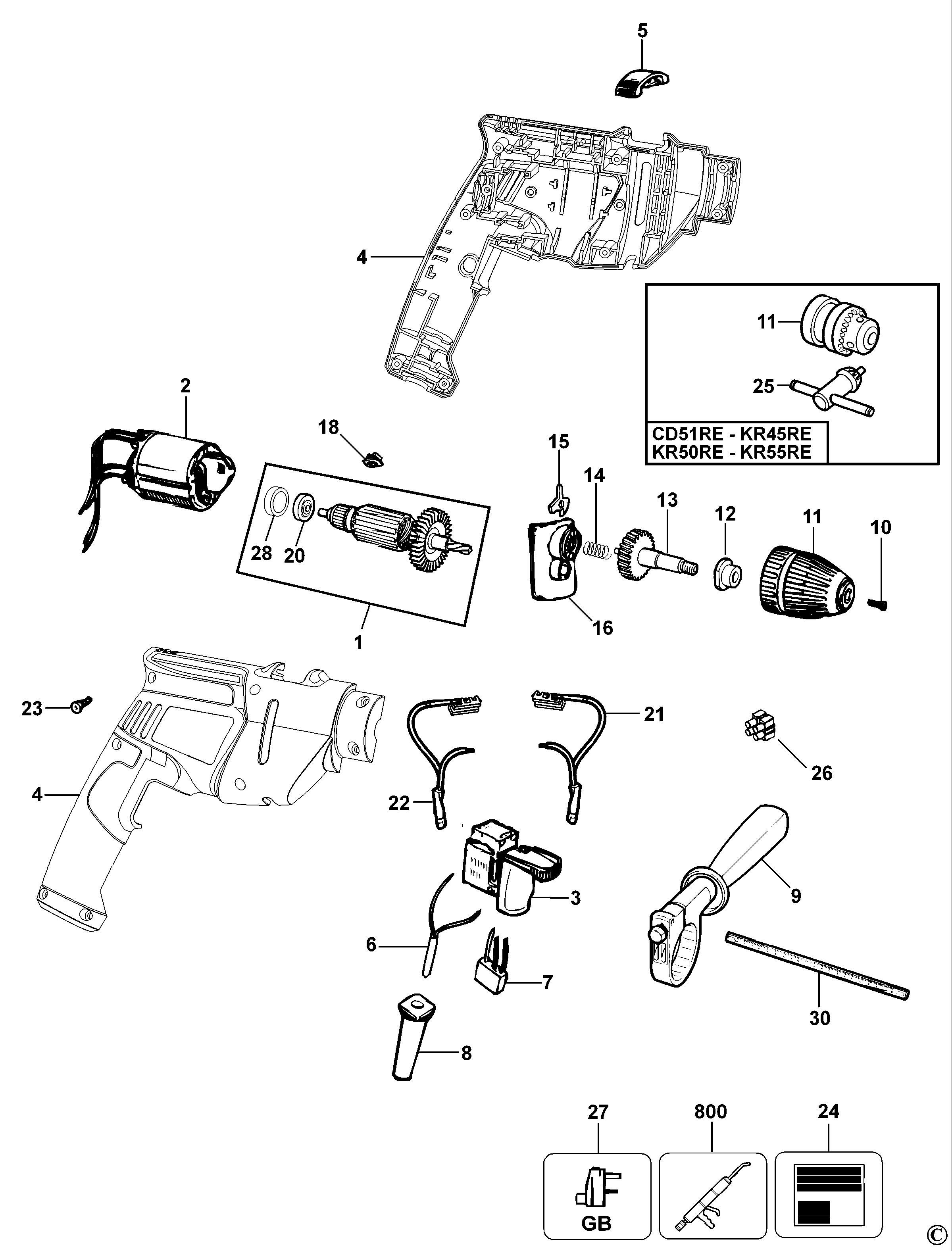

BLACK+DECKER DRILL (Type 1)
SKU Produs: CD71CRE /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 492684-00 | 1 | FIELD | 56,4 Lei | |
| 6 | 330080-03 | 1 | CORDSET QS | 31,6 Lei | |
| 8 | 770236 | 1 | CORD PROTECTOR | 4,7 Lei | |
| 10 | 805434 | 1 | Screw M5X18 | 4,7 Lei | |
| 11 | 330033-23 | 1 | CHUCK | 72 Lei | |
| 12 | 574297-00 | 1 | SLEEVE BEARING | 5,3 Lei | |
| 15 | 375156-00 | 1 | THRUST PLATE | 4,7 Lei | |
| 18 | 875735 | 1 | BRUSH BOX HOLDER | 4,7 Lei | |
| 20 | 574853-08 | 1 | BEARING | 7,5 Lei | |
| 20 | 606290-01 | 1 | BEARING | 8,8 Lei | |
| 21 | 587211-04 | 1 | BRUSHBOX AND CHOKE | 17,4 Lei | |
| 22 | 587211-05 | 1 | BRUSHBOX AND CHOKE | 17,4 Lei | |
| 23 | 747329 | 8 | SCREW | 4,7 Lei | |
| 25 | 330034-07 | 1 | Drill Chuck Key | 6,4 Lei | |
| 28 | 635176-00 | 1 | SLEEVE | 4,5 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 31,6 Lei |
