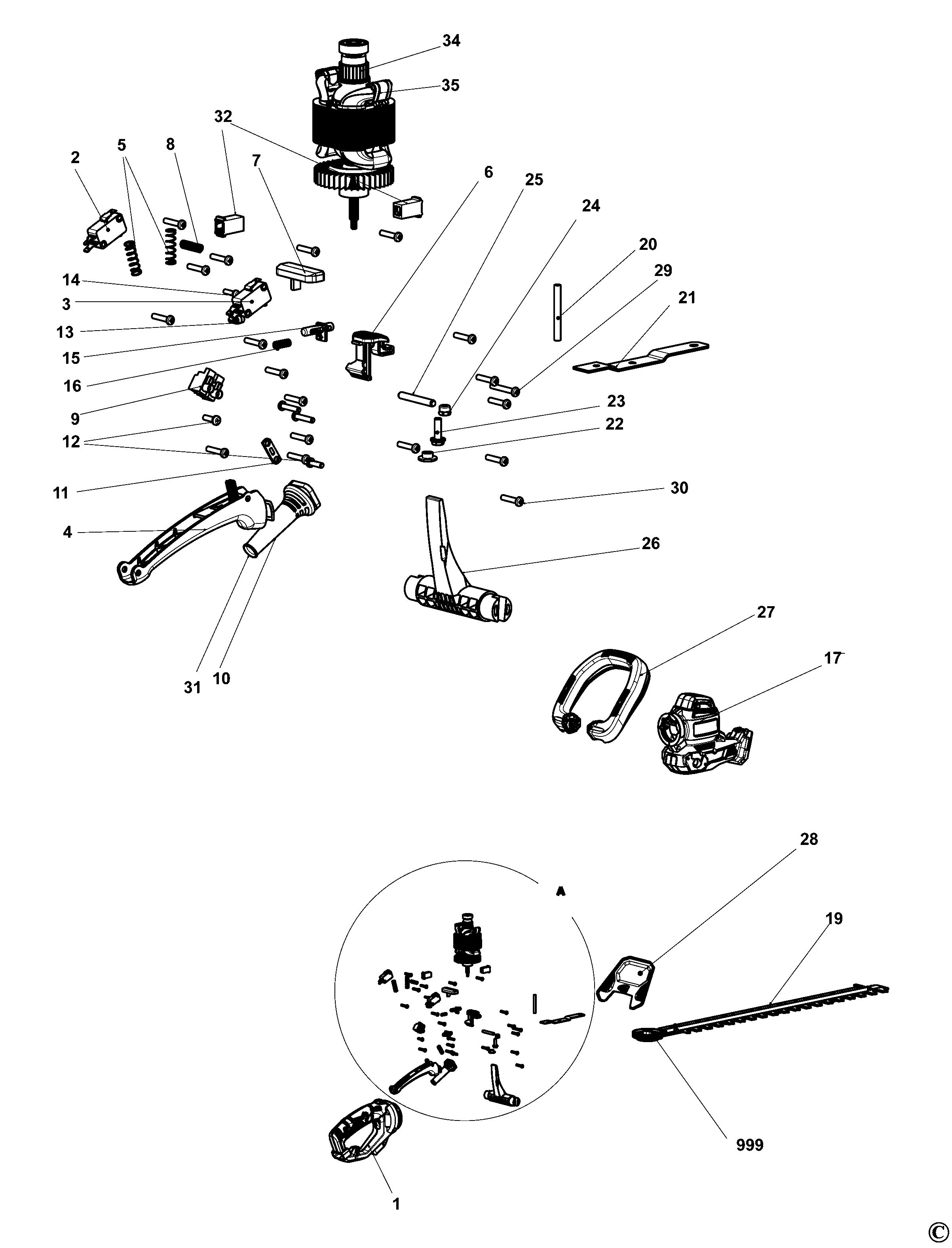

BLACK+DECKER HEDGE TRIMMER (Type 1)
SKU Produs: BEHTS551 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N702474 | 1 | HANDLE SA | 37,73 Lei | |
| 2 | 479253-00 | 1 | SWITCH | 13,85 Lei | |
| 3 | 479254-00 | 1 | SWITCH | 10,29 Lei | |
| 4 | N726545 | 1 | TRIGGER | 12,71 Lei | |
| 5 | 90572096 | 2 | SPRING | 4,57 Lei | |
| 6 | N727931 | 1 | BUTTON | 5,21 Lei | |
| 7 | N727933 | 1 | BUTTON | 4,57 Lei | |
| 8 | N738885 | 1 | SPRING | 4,57 Lei | |
| 9 | 373883 | 1 | TERMINAL BLOCK | 5,21 Lei | |
| 11 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 12 | 373158 | 1 | SCREW | 4,57 Lei | |
| 13 | 90611771 | 1 | CLIP | 4,57 Lei | |
| 14 | 330019-31 | 1 | SCREW | 4,57 Lei | |
| 15 | N704256 | 1 | PLUNGER | 4,57 Lei | |
| 16 | N739403 | 1 | SPRING | 4,57 Lei | |
| 17 | N702477 | 1 | HOUSING MOTOR | 80,04 Lei | |
| 19 | N528748 | 1 | BLADE AND GEAR SA | 200,99 Lei | |
| 20 | N506433 | 1 | Gear | 4,57 Lei | |
| 21 | N506447 | 1 | SUPPORT | 7,37 Lei | |
| 22 | 376614-01 | 1 | BLADE SPACER | 4,57 Lei | |
| 23 | 90527921 | 1 | BOLT | 4,57 Lei | |
| 24 | 148641-00 | 1 | LOCK NUT | 4,57 Lei | |
| 25 | N506421 | 1 | SUPPORT | 4,57 Lei | |
| 26 | N691358 | 1 | LINK | 7,37 Lei | |
| 27 | N714819 | 1 | HANDLE SA | 52,22 Lei | |
| 28 | N695339 | 1 | GUARD | 7,37 Lei | |
| 29 | N546037 | 1 | SCREW | 4,57 Lei | |
| 30 | 747329 | 20 | SCREW | 4,57 Lei | |
| 31 | N741974 | 1 | CORD | 17,02 Lei | |
| 32 | N597333 | 2 | BRUSH HOLDER | 4,57 Lei | |
| 34 | N696083 | 1 | ARMATURE | 96,56 Lei | |
| 35 | N696111 | 1 | FIELD | 120,82 Lei |
