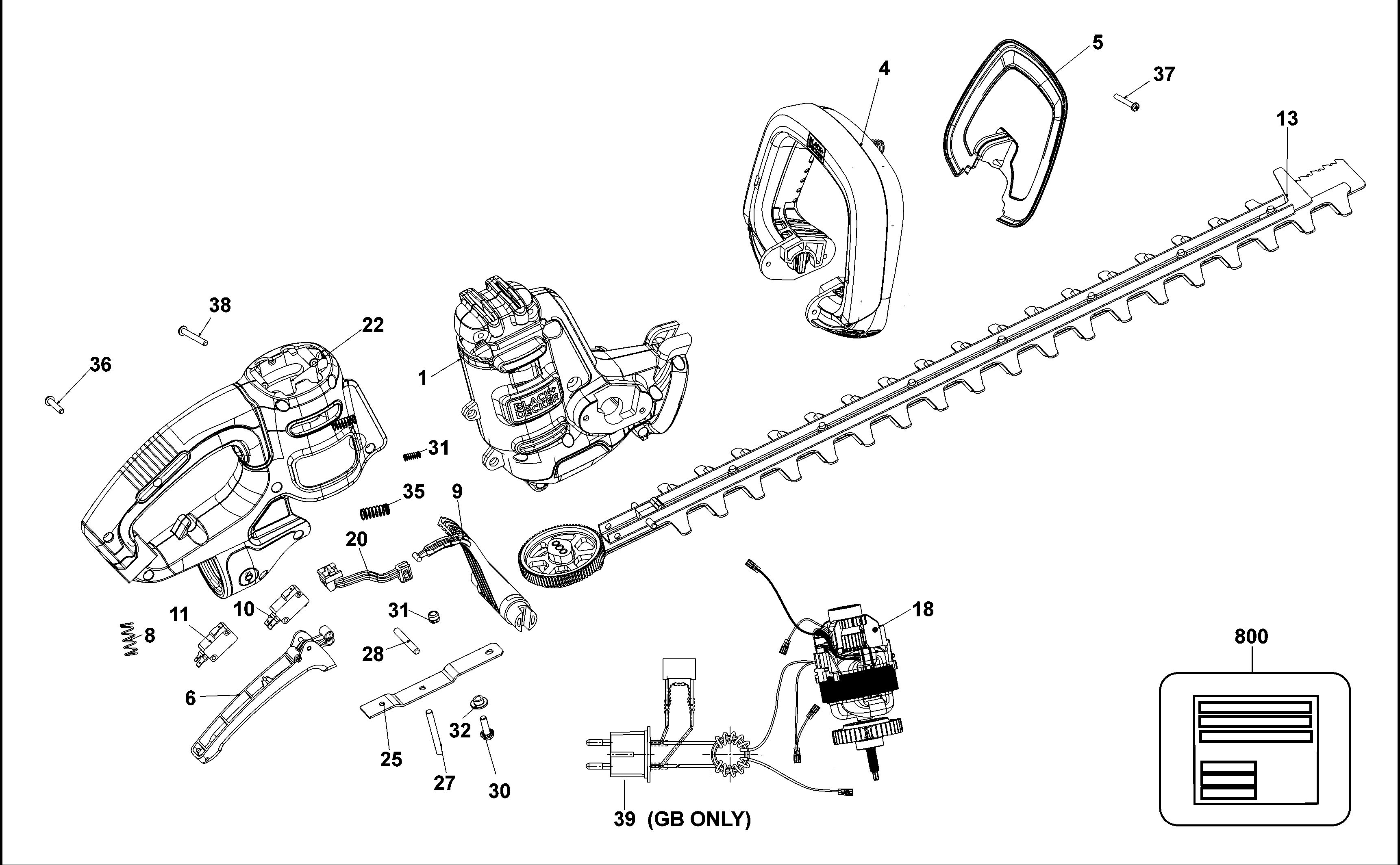

BLACK+DECKER HEDGE TRIMMER (Type 1)
SKU Produs: BEHTS451 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N517771 | 1 | HOUSING MOTOR | 37,73 Lei | |
| 4 | N524980 | 1 | HANDLE | 30,87 Lei | |
| 5 | N538676 | 1 | GUARD | 13 Lei | |
| 6 | N524867 | 1 | TRIGGER | 7,37 Lei | |
| 8 | 806128 | 1 | SPRING | 4,57 Lei | |
| 9 | N510833 | 1 | YOKE | 12,71 Lei | |
| 10 | 479254-00 | 1 | SWITCH | 10,29 Lei | |
| 11 | 479253-00 | 1 | SWITCH | 13,85 Lei | |
| 13 | N528748 | 1 | BLADE AND GEAR SA | 200,99 Lei | |
| 18 | N510829 | 1 | MOTOR SA | 181,55 Lei | |
| 20 | N516981 | 1 | LINK | 4,57 Lei | |
| 22 | N517761 | 1 | HOUSING SA | 34,05 Lei | |
| 25 | N506447 | 1 | SUPPORT | 7,37 Lei | |
| 27 | N506433 | 1 | Gear | 4,57 Lei | |
| 28 | N506421 | 1 | SUPPORT | 4,57 Lei | |
| 30 | 90527921 | 1 | BOLT | 4,57 Lei | |
| 31 | 148641-00 | 1 | LOCK NUT | 4,57 Lei | |
| 32 | 376614-01 | 1 | BLADE SPACER | 4,57 Lei | |
| 35 | N539104 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 36 | 747329 | 1 | SCREW | 4,57 Lei | |
| 37 | N546037 | 1 | SCREW | 4,57 Lei | |
| 38 | N547676 | 1 | SCREW | 4,57 Lei | |
| 800 | NA020870 | 1 | RATING PLATE | 4,57 Lei |
