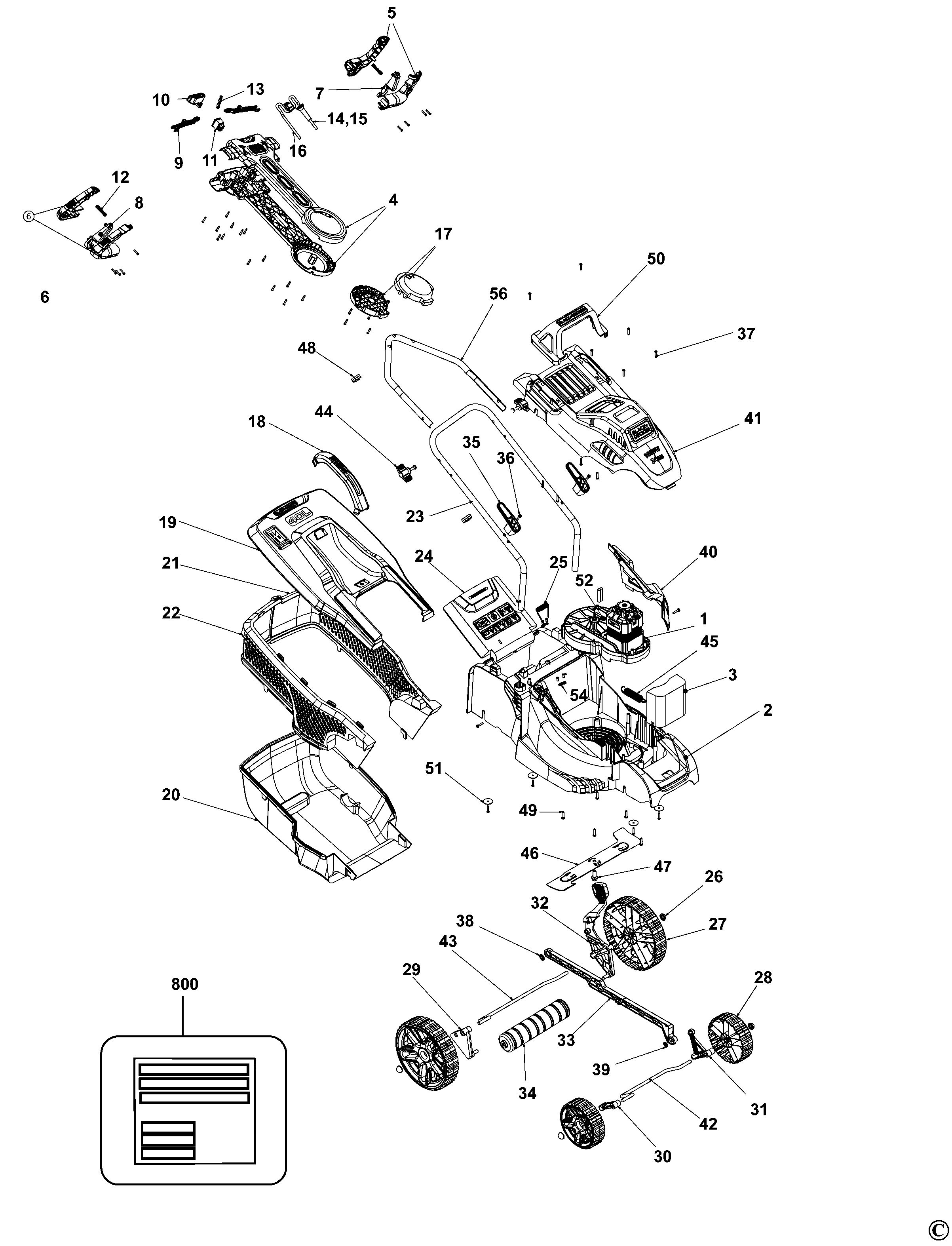

BLACK+DECKER MOWER (Type 1)
SKU Produs: BDMOW1400 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | N518522 | 1 | BASE | 145,09 Lei | |
| 3 | N547145 | 1 | WEIGHT | 57,81 Lei | |
| 4 | N549268 | 1 | HOUSING SWITCH | 70,39 Lei | |
| 5 | N549271 | 1 | HANDLE LH | 25,54 Lei | |
| 6 | N549272 | 1 | HANDLE RH | 25,54 Lei | |
| 7 | N528681 | 1 | TRIGGER | 5,21 Lei | |
| 8 | N528682 | 1 | TRIGGER | 5,21 Lei | |
| 9 | N529479 | 2 | LINK | 4,57 Lei | |
| 10 | N529480 | 1 | BUTTON LOCK-OFF | 5,21 Lei | |
| 11 | 90562582 | 1 | SWITCH | 15,12 Lei | |
| 12 | N549280 | 1 | SPRING | 4,57 Lei | |
| 13 | N568719 | 1 | SPRING | 4,57 Lei | |
| 14 | 90573702 | 1 | CORDSET | 17,02 Lei | |
| 16 | N549261 | 1 | CABLE | 30,87 Lei | |
| 17 | N549399 | 2 | HOUSING | 34,05 Lei | |
| 18 | 90567333 | 1 | HANDLE | 10,29 Lei | |
| 19 | N550117 | 1 | COVER | 34,8 Lei | |
| 20 | N572320 | 1 | GRASSBOX | 57,81 Lei | |
| 21 | 90567929 | 1 | GRASSBOX LEFT | 25,54 Lei | |
| 22 | 90567930 | 1 | GRASSBOX RIGHT | 25,54 Lei | |
| 23 | N530346 | 2 | TUBE LOWER | 70,39 Lei | |
| 24 | 90566433-02 | 1 | GRASSFLAP | 19,95 Lei | |
| 25 | N564205 | 1 | SPRING TORSION | 5,21 Lei | |
| 26 | 90574276 | 4 | WASHER LOCK | 5,21 Lei | |
| 27 | N525968 | 2 | WHEEL | 30,87 Lei | |
| 28 | N525967 | 2 | WHEEL FRONT | 13,85 Lei | |
| 29 | 90561676-01 | 1 | BRACKET | 12,71 Lei | |
| 30 | 90561653 | 1 | BRACKET | 4,57 Lei | |
| 31 | 90561677 | 1 | BRACKET | 6,23 Lei | |
| 32 | 90567592-02 | 1 | LEVER | 21,85 Lei | |
| 33 | 90562576 | 1 | LEVER | 19,95 Lei | |
| 35 | 90571019-01 | 2 | CLIP CABLE | 4,57 Lei | |
| 36 | 90589823 | 2 | SCREW | 4,57 Lei | |
| 37 | 747329 | 18 | SCREW | 4,57 Lei | |
| 38 | 90579432 | 2 | WASHER LOCK | 4,57 Lei | |
| 39 | 90579431 | 2 | WASHER LOCK | 4,57 Lei | |
| 40 | 90565736 | 1 | COVER | 12,71 Lei | |
| 41 | N546825 | 1 | COVER SA | 57,81 Lei | |
| 42 | 90561652 | 1 | SPINDLE | 19,95 Lei | |
| 43 | 90561606 | 1 | AXLE REAR | 19,95 Lei | |
| 44 | N548691 | 1 | NUT PACK | 7,37 Lei | |
| 45 | 90569681 | 1 | SPRING | 7,37 Lei | |
| 46 | N520726 | 1 | BLADE | 52,22 Lei | |
| 47 | 90516533 | 1 | BOLT | 4,57 Lei | |
| 48 | 90571653 | 1 | CLAMP | 4,57 Lei | |
| 49 | 330019-13 | 5 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 50 | N525936 | 1 | HANDLE | 13,85 Lei | |
| 51 | 90573272 | 4 | WASHER | 4,57 Lei | |
| 52 | 90606208 | 1 | TUBE | 4,57 Lei | |
| 54 | 821070 | 2 | CLAMP, CORD | 4,57 Lei | |
| 56 | N528692 | 1 | TUBE | 34,05 Lei | |
| 800 | N644144 | 1 | RATING LABEL | 4,7 Lei |
