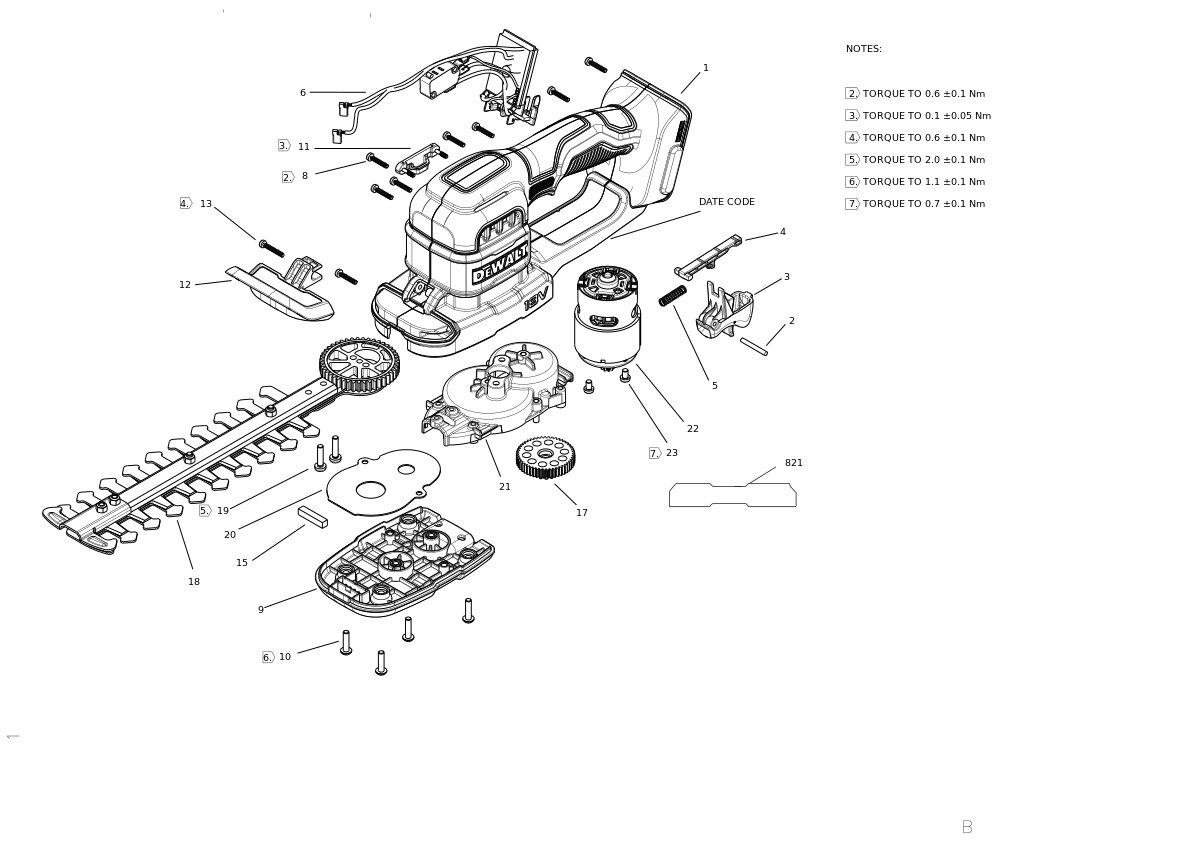

DEWALT MASINA DE TUNS GARD VIU CU ACUMULATOR (Type 1)
SKU Produs: DCMHT520N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA752074 | 1 | HOUSING SA | 47,78 Lei | |
| 2 | 5119820-00 | 1 | PIN | 4,57 Lei | |
| 3 | NA608435 | 1 | TRIGGER | 8,51 Lei | |
| 4 | NA600814 | 1 | LINKAGE SA | 3,78 Lei | |
| 5 | N829448 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 8 | 330019-00 | 8 | SCREW, PLASTIC THREAD FORM M3 * 16 T10 | 4,57 Lei | |
| 9 | NA700175 | 1 | COVER | 14,07 Lei | |
| 10 | 330024-06 | 4 | MAX16-PR-M-BK | 4,57 Lei | |
| 11 | N791558 | 1 | COVER | 3,78 Lei | |
| 12 | NA571669 | 1 | GUARD | 6,09 Lei | |
| 13 | 330019-24 | 1 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,57 Lei | |
| 15 | NA608391 | 1 | SEAL | 3,78 Lei | |
| 17 | NA696796 | 1 | Gear | 16,49 Lei | |
| 18 | NA772960 | 1 | BLADE | 130,52 Lei | |
| 19 | N093602 | 2 | SCREW | 4,57 Lei | |
| 20 | NA571664 | 1 | PLATE | 5,15 Lei | |
| 21 | NA577285 | 1 | GEARCASE SA | 47,78 Lei | |
| 22 | NB415900 | 1 | MOTOR SA | 88,41 Lei | |
| 23 | 90577146 | 2 | SCREW MACHINE | 4,57 Lei | |
| 821 | NA772612 | 1 | RATING LABEL | 3,78 Lei |
