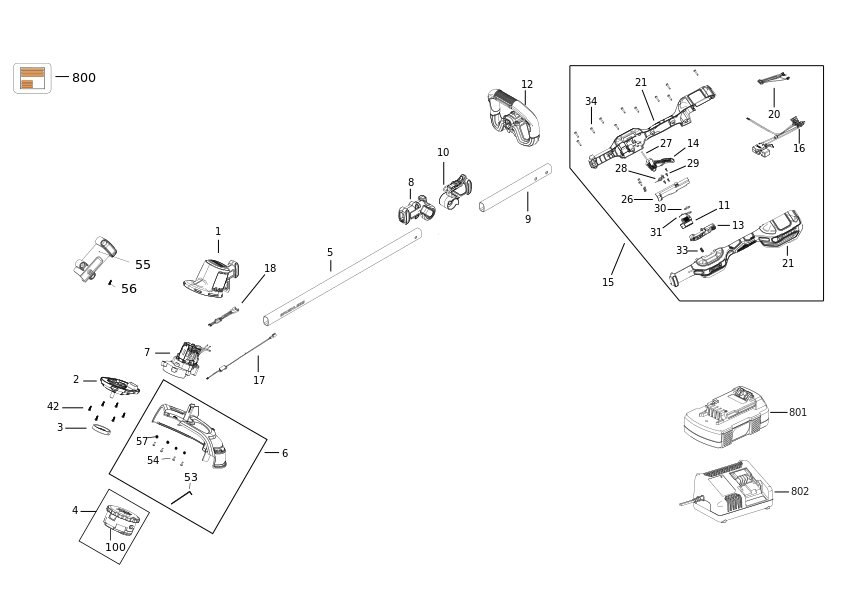

DEWALT TRIMER CU FIR (Type 2)
SKU Produs: DCMST561N /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N856240 | 1 | GEARCASE COVER | 41,93 Lei | |
| 2 | NA004869 | 1 | GEARCASE SA | 70,39 Lei | |
| 3 | N718639 | 1 | PLATE LOCK | 10,29 Lei | |
| 4 | N865076 | 1 | SPOOL | 96,56 Lei | |
| 5 | N859832 | 1 | POLE PIECE | 57,81 Lei | |
| 6 | N890077 | 1 | GUARD SA | 57,81 Lei | |
| 7 | NA408401 | 1 | MOTOR SA | 341,25 Lei | |
| 8 | N746945 | 1 | COVER SA | 70,39 Lei | |
| 9 | N857452 | 1 | POLE PIECE | 30,87 Lei | |
| 10 | N746857 | 1 | LATCH | 80,04 Lei | |
| 11 | N721005 | 1 | ACTUATOR | 4,57 Lei | |
| 12 | N787701 | 1 | HANDLE SA | 80,04 Lei | |
| 13 | N857643 | 1 | BUTTON | 10,5 Lei | |
| 14 | N857645 | 1 | TRIGGER | 6,09 Lei | |
| 15 | N877343 | 1 | HOUSING HANDLE | 120,82 Lei | |
| 16 | N877389 | 1 | WIRE HARNESS | 130,35 Lei | |
| 17 | N784811 | 1 | WIRE HARNESS | 17,02 Lei | |
| 18 | N784892 | 1 | WIRE HARNESS | 37,73 Lei | |
| 20 | NA035282 | 1 | WIRE HARNESS | 34,65 Lei | |
| 21 | N877343 | 1 | HOUSING HANDLE | 120,82 Lei | |
| 26 | N718170 | 1 | GUIDE | 4,57 Lei | |
| 27 | 90608942 | 1 | PIN | 4,57 Lei | |
| 28 | N746415 | 1 | SPRING | 4,57 Lei | |
| 29 | N086775 | 5 | SCREW | 4,57 Lei | |
| 30 | N703719 | 2 | CLAMP | 4,57 Lei | |
| 31 | NA073768 | 1 | LEAF SPRING | 3,78 Lei | |
| 33 | N703704 | 1 | SPRING | 4,57 Lei | |
| 34 | 330019-04 | 21 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 42 | 330045-06 | 6 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 53 | 90641326 | 1 | WRENCH SPECIAL | 7,37 Lei | |
| 54 | 747329 | 4 | SCREW | 4,57 Lei | |
| 55 | N849706 | 1 | CLAMP | 10,29 Lei | |
| 56 | 582193-00 | 1 | SCREW | 4,57 Lei | |
| 57 | 330016-26 | 4 | WASHER | 4,57 Lei | |
| 100 | N807718 | 1 | CAP | 10,5 Lei | |
| 800 | NA121288 | 1 | RATING LABEL | 4,57 Lei |
