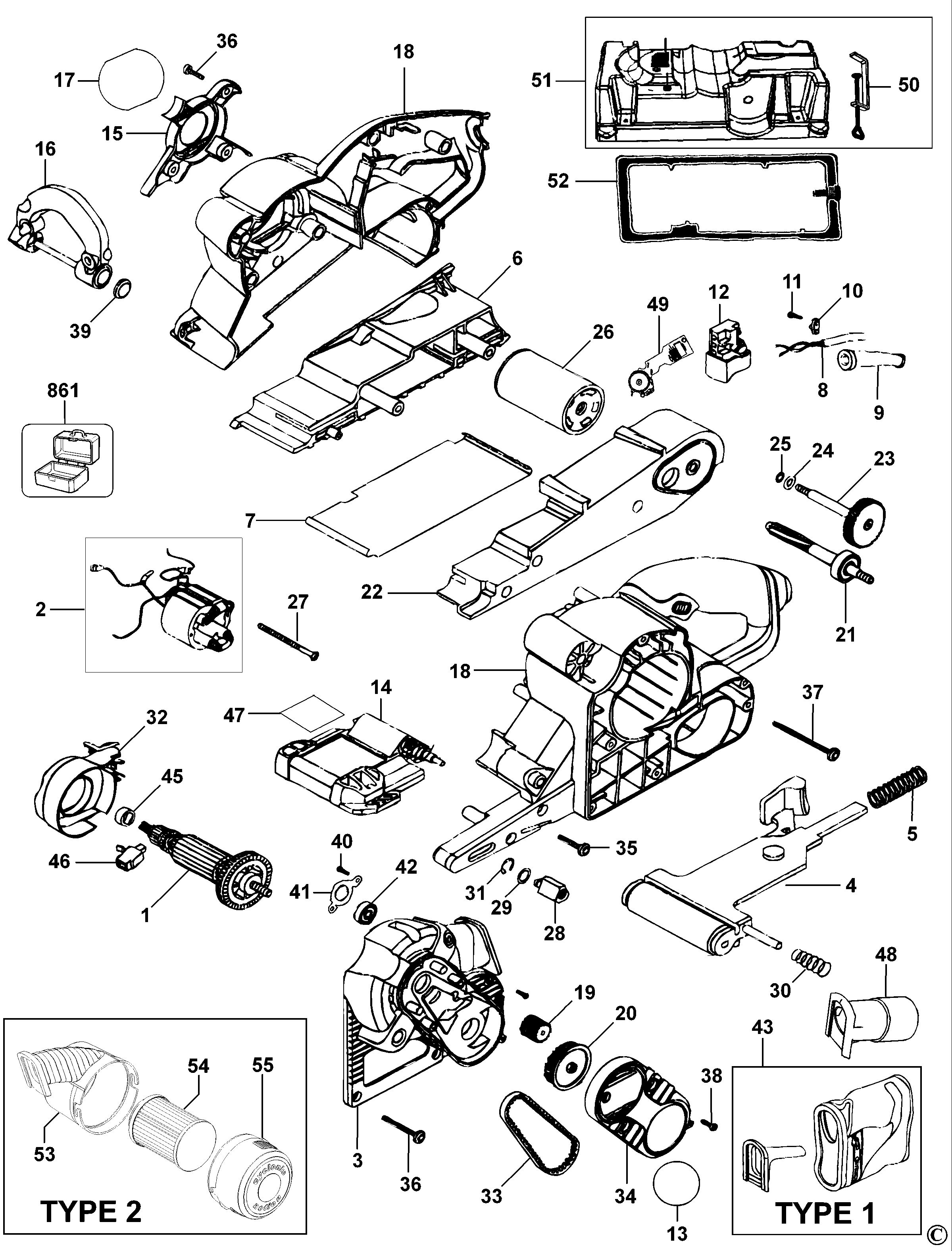

BLACK+DECKER BELT SANDER (Type 1 - 2)
SKU Produs: XTA80E /Type: 1 - 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 587202-00 | 1 | COVER | 25,54 Lei | |
| 4 | 589384-00N | 1 | SA CARRIER W/FRONT ROLLER | 52,22 Lei | |
| 5 | 587248-00 | 1 | SPRING | 4,57 Lei | |
| 7 | 587249-00 | 1 | SANDING PLATE | 13,85 Lei | |
| 9 | 148481-00 | 1 | PROTECTOR | 4,57 Lei | |
| 10 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 11 | 370748 | 2 | SCREW | 4,57 Lei | |
| 12 | 587233-00 | 1 | SWITCH SA | 17,02 Lei | |
| 19 | 587261-00 | 1 | DRIVE PULLEY | 7,37 Lei | |
| 20 | 587262-00 | 1 | DRIVE PULLEY | 13,85 Lei | |
| 21 | 588489-00 | 1 | SHAFT SA | 30,87 Lei | |
| 23 | 588477-00 | 1 | Drive Shaft | 25,54 Lei | |
| 24 | 587230-00 | 1 | WASHER THRUST | 4,57 Lei | |
| 25 | 587229-00 | 1 | WASHER THRUST | 4,57 Lei | |
| 27 | 330065-21 | 2 | SCREW, PLASTIC THREAD FORM M4*50 | 4,57 Lei | |
| 28 | 587224-00 | 1 | KNOB SA | 10,29 Lei | |
| 30 | 477505-00 | 1 | SPRING | 4,57 Lei | |
| 33 | 587263-00 | 1 | BELT | 21,85 Lei | |
| 35 | 330065-16 | 3 | SCREW | 4,57 Lei | |
| 36 | 330065-08 | 11 | SCREW M4X18 | 4,57 Lei | |
| 37 | 330065-12 | 2 | SCREW | 4,57 Lei | |
| 38 | 330065-06 | 5 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 39 | 590465-00 | 1 | INSERT | 4,57 Lei | |
| 40 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 43 | 588562-01 | 1 | DUST BAG SA | 21,85 Lei | |
| 45 | 605040-05 | 1 | BEARING, BALL CW/MFG | 7,37 Lei | |
| 46 | 588563-01 | 2 | BRUSH AND HOLDER SA | 19,95 Lei | |
| 47 | 587266-00 | 1 | LABEL | 4,57 Lei | |
| 48 | 587843-00 | 1 | VACUUM ADAPTOR | 7,37 Lei | |
| 55 | 90501537 | 1 | BOWL | 13,85 Lei |
