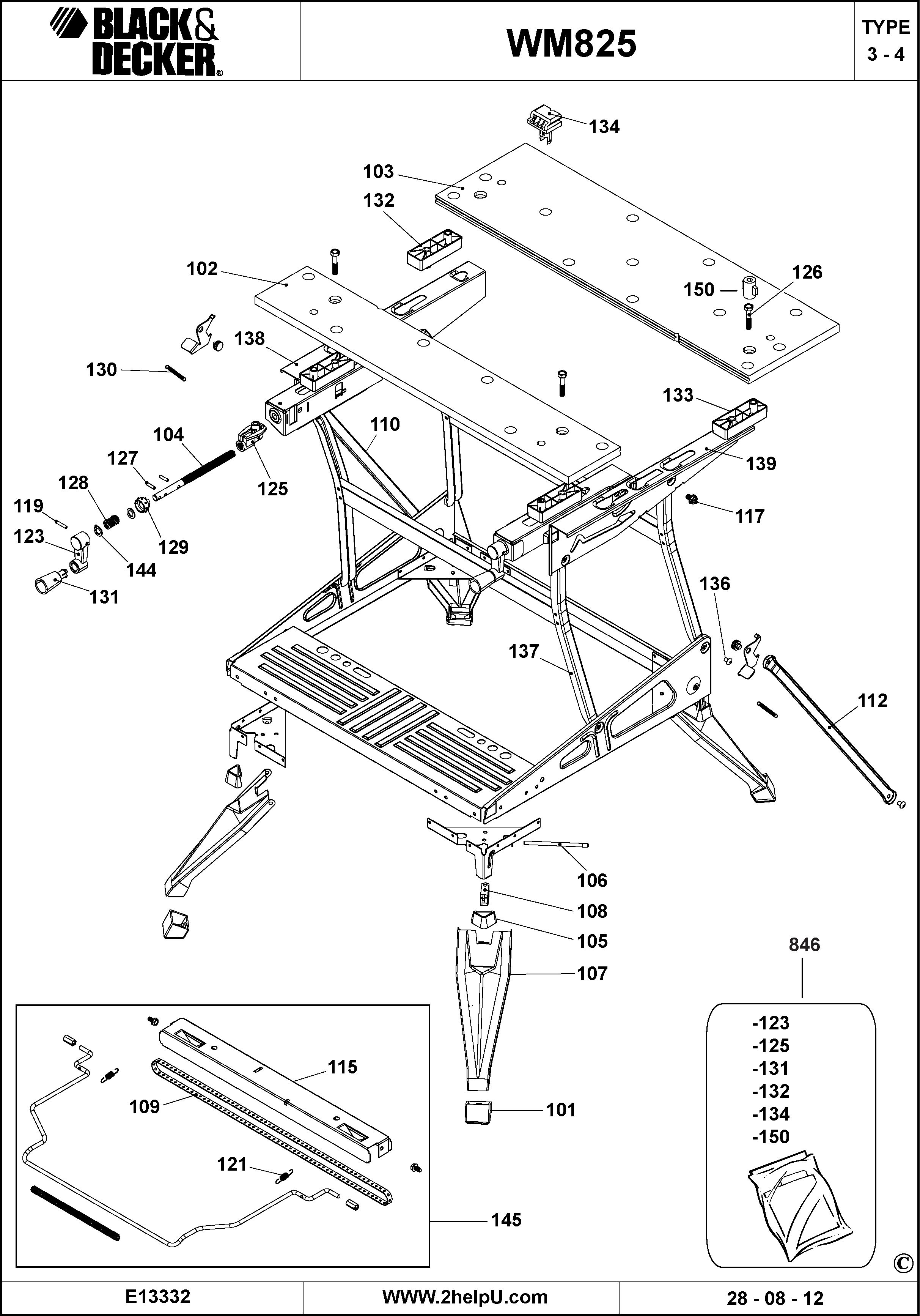

BLACK+DECKER WORKMATE (Type 3)
SKU Produs: WM825 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | 723206 | 4 | WORKMATE FOOT | 7,37 Lei | |
| 102 | 569296-00 | 1 | JAWS | 200,99 Lei | |
| 103 | 569296-00 | 1 | JAWS | 200,99 Lei | |
| 104 | 574171-00 | 2 | VICE SCREW | 19,95 Lei | |
| 105 | 723557 | 4 | FOOT | 6,23 Lei | |
| 106 | 374561 | 4 | AXLE | 4,57 Lei | |
| 107 | 723745-49 | 4 | LEG | 52,22 Lei | |
| 108 | 373195-01 | 4 | LEG CATCH | 4,57 Lei | |
| 109 | 242821-02 | 1 | BELT DRIVE | 41,93 Lei | |
| 115 | 572789-00 | 1 | LABEL | 19,95 Lei | |
| 117 | 823385 | 2 | SCREW | 8,64 Lei | |
| 119 | 807532 | 2 | PIN | 6,23 Lei | |
| 121 | 576465-00 | 1 | SPRING | 4,57 Lei | |
| 123 | 723541 | 2 | HANDLE ARM | 5,21 Lei | |
| 125 | 577199-00 | 2 | NUT | 5,21 Lei | |
| 126 | 98025-40 | 4 | BOLT | 4,57 Lei | |
| 127 | 807531 | 2 | SPIROL PIN | 6,23 Lei | |
| 128 | 572764-00 | 2 | SPRING | 8,64 Lei | |
| 129 | 242836-00 | 2 | SPROCKET | 4,57 Lei | |
| 130 | 797516 | 2 | SPRING | 7,37 Lei | |
| 131 | 820728 | 2 | KNOB | 7,37 Lei | |
| 132 | 1004683-00 | 2 | BLOCK REAR | 12,71 Lei | |
| 133 | 820261 | 2 | SLIDE BLOCK | 6,23 Lei | |
| 134 | 807530-02 | 4 | PEG SWIVEL (SUBC) | 7,37 Lei | |
| 136 | 1004688-16 | 10 | RIVET | 6,23 Lei | |
| 144 | 809486 | 4 | WASHER SPECIAL | 4,57 Lei | |
| 145 | 572760-01 | 1 | BRACKET SA | 213,19 Lei | |
| 150 | 723742 | 1 | WRENCH | 4,57 Lei | |
| 846 | 572780-00 | 1 | PARTS PACK | 57,81 Lei |
