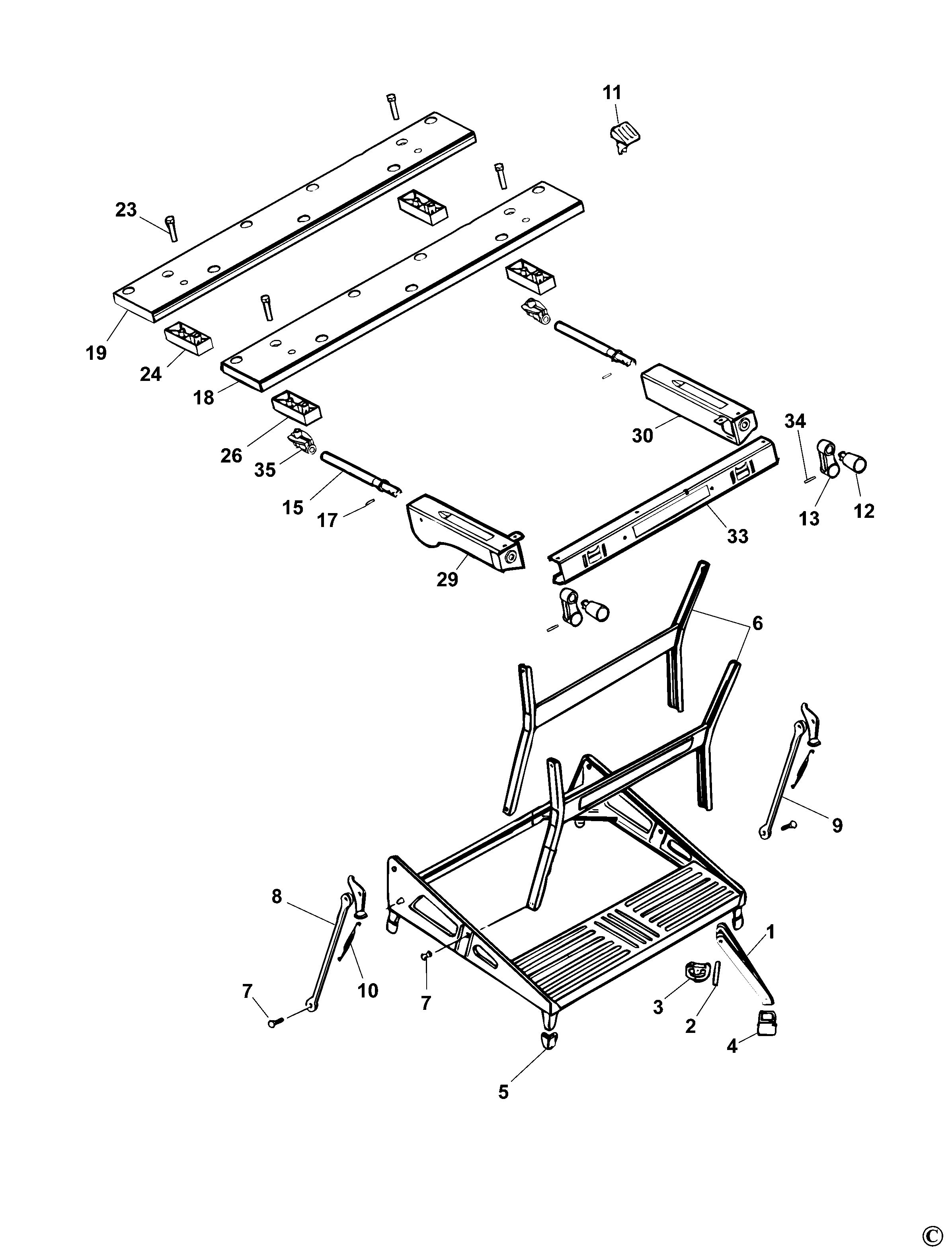

BLACK+DECKER WORKMATE (Type 1)
SKU Produs: WM225-----C /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 242415-02 | 4 | LEG WM225 | 26,1 Lei | |
| 2 | 242400-01 | 4 | PIN | 4,57 Lei | |
| 3 | 242416-00 | 4 | CATCH | 5,21 Lei | |
| 4 | 242393-00 | 4 | FOOT WM225 | 4,57 Lei | |
| 5 | 242394-00 | 4 | FOOT WM225 | 4,57 Lei | |
| 7 | 242434-00 | 10 | RIVET | 4,57 Lei | |
| 8 | 242431-02 | 1 | STAY LH WM225 | 24,9 Lei | |
| 9 | 242430-02 | 1 | STAY RH | 41,93 Lei | |
| 10 | 242425-00 | 2 | SPRING | 7,37 Lei | |
| 11 | 820834 | 4 | SWIVEL GRIP | 10,29 Lei | |
| 12 | 242440-00 | 2 | KNOB WM225 | 5,21 Lei | |
| 13 | 242302-00 | 1 | ARM WM225 | 6,23 Lei | |
| 22 | 242836-00 | 2 | SPROCKET | 4,57 Lei | |
| 23 | 98025-40 | 4 | BOLT | 4,57 Lei | |
| 24 | 243024-00 | 2 | BOLT WM225 | 8,64 Lei | |
| 26 | 242436-02 | 2 | LOC FRONT | 6,23 Lei | |
| 32 | 242832-00 | 1 | GUARD SA WM225 | 13,5 Lei | |
| 34 | 807532 | 1 | PIN | 6,23 Lei | |
| 35 | 820263 | 2 | PIVOT NUT | 6,23 Lei |
