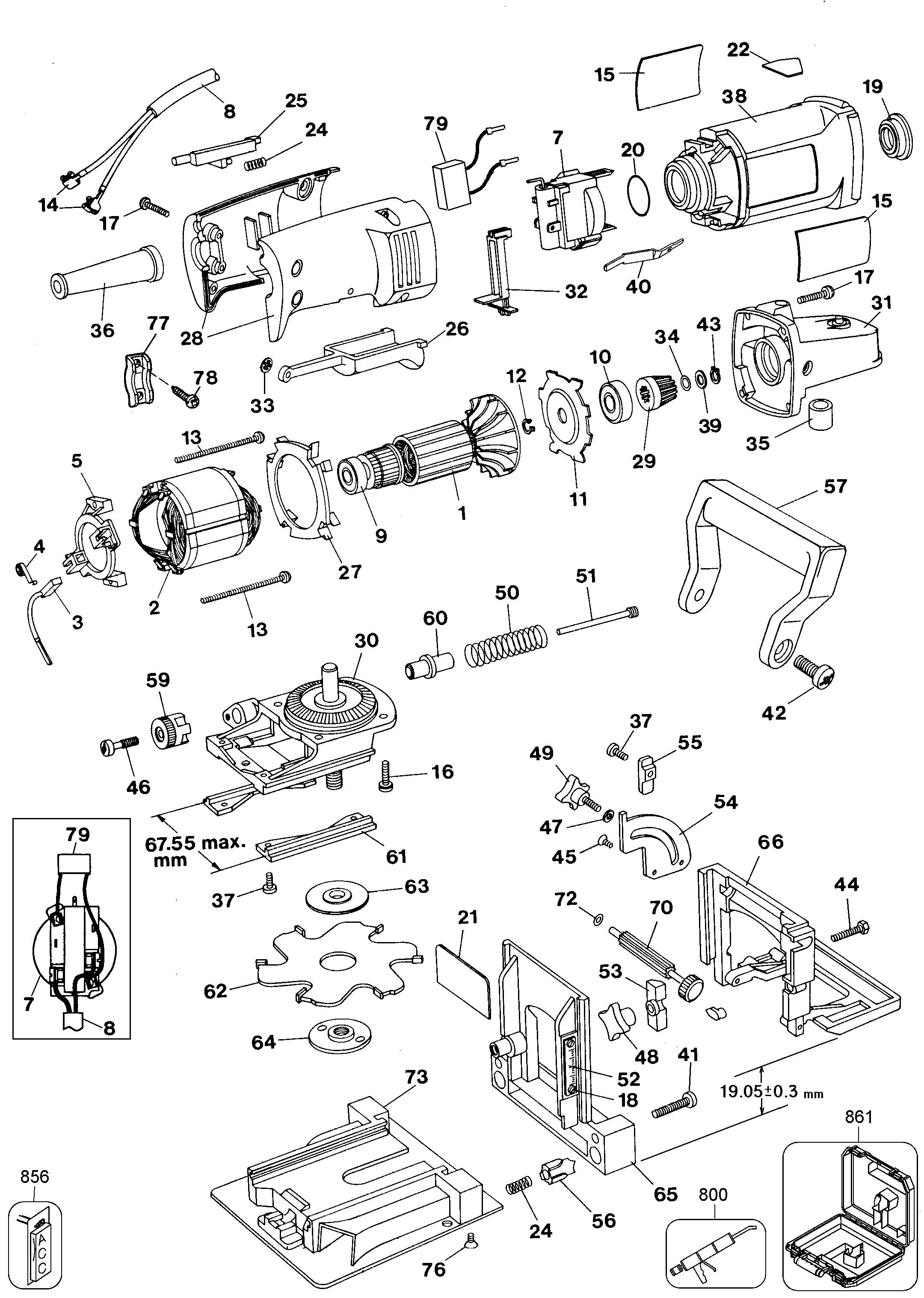

PLATE JOINER GERMANY
SKU Produs: MBR100-30
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 445861-30 | 2 | BRUSH AND LEAD | 12,71 Lei | |
| 4 | 445860-00 | 2 | SPRING, BRUSH | 4,57 Lei | |
| 5 | 449899-05 | 1 | RING | 30,87 Lei | |
| 9 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 10 | 605040-15 | 1 | BEARING, BALL | 17,02 Lei | |
| 11 | 150057-00 | 1 | BEARING | 5,21 Lei | |
| 12 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 13 | 445880-00 | 2 | SCREW | 4,57 Lei | |
| 14 | 151169-00 | 2 | TERMINAL | 4,5 Lei | |
| 16 | 146929-00 | 4 | SCREW | 4,57 Lei | |
| 17 | 330019-13 | 8 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 18 | 330045-43 | 2 | SCREW TAPTITE | 4,57 Lei | |
| 19 | 445217-02 | 1 | SLEEVE | 5,21 Lei | |
| 24 | 147809-00 | 3 | SPRING | 4,57 Lei | |
| 27 | 445876-00 | 1 | BAFFLE | 7,37 Lei | |
| 29 | 152487-01 | 1 | PINION | 13,85 Lei | |
| 30 | NA065769 | 1 | GEARCASE COVER | 225,26 Lei | |
| 31 | N835822 | 1 | GEARCASE SA | 96,56 Lei | |
| 34 | 050050-00 | 1 | O RING DW831 | 4,57 Lei | |
| 36 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 37 | 330045-05 | 5 | SCREW.TEMP | 4,57 Lei | |
| 39 | 449559-00 | 1 | WASHER | 4,57 Lei | |
| 41 | 330045-16 | 2 | Screw Metal | 4,57 Lei | |
| 42 | 330045-32 | 2 | SCREW | 5,21 Lei | |
| 43 | 38751-00 | 1 | RING | 4,57 Lei | |
| 44 | 098022-25 | 1 | SCREW | 4,57 Lei | |
| 45 | 098102-10 | 2 | SCREW, FLAT HEAD | 5,21 Lei | |
| 46 | 147791-00 | 1 | SCREW | 4,57 Lei | |
| 47 | 330016-07 | 1 | WASHER | 4,57 Lei | |
| 48 | 396991-00 | 1 | KNOB | 4,57 Lei | |
| 49 | 396992-00 | 1 | KNOB | 4,57 Lei | |
| 50 | 147758-00 | 1 | SPRING | 7,37 Lei | |
| 51 | 147759-00 | 1 | SHAFT | 7,37 Lei | |
| 52 | 147797-01 | 1 | SCALE | 13,85 Lei | |
| 53 | 147749-00 | 1 | CLAMP | 6,23 Lei | |
| 54 | 147795-00 | 1 | QUADRANT | 21,85 Lei | |
| 55 | 147786-00 | 1 | STOP | 5,21 Lei | |
| 56 | 147753-00 | 2 | PIN | 7,37 Lei | |
| 57 | 147793-00 | 1 | HANDLE | 25,54 Lei | |
| 59 | 147760-00 | 1 | STOP | 25,54 Lei | |
| 60 | 147785-00 | 1 | GUIDE | 7,37 Lei | |
| 61 | 147736-01 | 2 | PAD | 8,64 Lei | |
| 63 | 147725-00 | 1 | WASHER | 21,85 Lei | |
| 64 | 151001-00 | 1 | NUT | 19,95 Lei | |
| 65 | 147741-00 | 1 | SUPPORT | 106,98 Lei | |
| 70 | 147745-00SV | 1 | PINION | 106,98 Lei | |
| 72 | 147799-00 | 2 | RING | 4,57 Lei | |
| 73 | 385914-00 | 1 | BASEPLATE SA MBR100 TYPE 2 | 213,19 Lei | |
| 76 | 385915-01 | 4 | SCREW | 4,57 Lei | |
| 77 | 450877-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 78 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 80 | 385946-00 | 4 | WASHER SPRING MBR100 TYPE 2 | 4,57 Lei | |
| 856 | 147794-00 | 1 | ADAPTOR | 13,85 Lei | |
| 856 | 151002-00 | 1 | DUST DEFLECTOR | 19,95 Lei | |
| 856 | 152693-00 | 1 | KEY | 8,64 Lei | |
| 856 | 445871-00 | 1 | SPANNER | 13,85 Lei |
