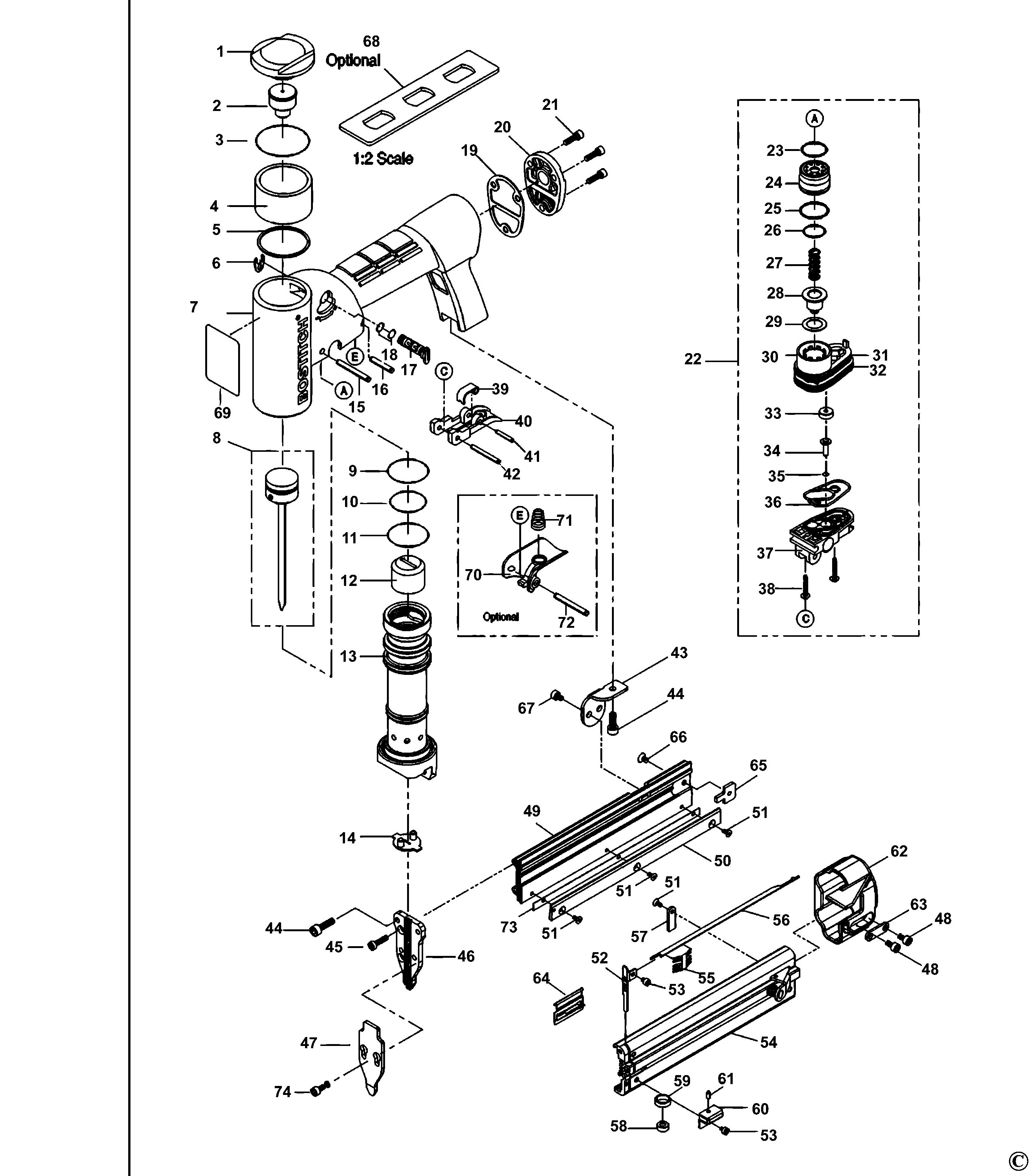

BOSTITCH NAILER (Type REV A)
SKU Produs: TU-216-1825K-E /Type: REV A
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 174288 | 1 | CAP | 25,52 Lei | |
| 2 | P2860000600 | 1 | BUMPER , PISTON STOP | 16,49 Lei | |
| 3 | 100353 | 1 | O-RING,1.301X.070 | 5,15 Lei | |
| 4 | 174329 | 1 | SPACER,CAP | 16,49 Lei | |
| 5 | 174328 | 1 | GASKET | 5,15 Lei | |
| 6 | 174290 | 1 | RETAINER,CLIP | 5,15 Lei | |
| 7 | G4227800 | 1 | FRAME UNIT | 99,86 Lei | |
| 9 | 174309 | 1 | O-RING,1.049X.103 | 5,15 Lei | |
| 10 | 174310 | 1 | O-RING,.989X.070 | 5,15 Lei | |
| 12 | P3240000200 | 1 | BUMPER | 5,15 Lei | |
| 13 | G0505800 | 1 | CYLINDER | 139,97 Lei | |
| 15 | 174305 | 1 | PIN,COILED,M4X30 | 5,15 Lei | |
| 16 | 174304 | 1 | PIN,COILED,M4X18 | 5,15 Lei | |
| 18 | 174311 | 1 | O-RING,.217X.059 | 5,15 Lei | |
| 19 | 174295 | 1 | GASKET, END CAP | 5,15 Lei | |
| 20 | 174296 | 1 | CAP, END | 16,49 Lei | |
| 21 | 174306 | 1 | SCREW SHCS M4X0.7X14 | 5,15 Lei | |
| 22 | TVA13 | 1 | ASSEMBLY, TRIGGER VALVE | 58,17 Lei | |
| 24 | 174278 | 1 | HEAD VALVE | 16,49 Lei | |
| 25 | 174312 | 1 | O-RING,.700X.072 | 5,15 Lei | |
| 26 | 102163 | 1 | O-RING,.591 X .059 | 66,15 Lei | |
| 27 | 174280 | 1 | SPRING,COMPRESSION | 5,15 Lei | |
| 28 | 174279 | 1 | SEAL, EXHAUST | 5,15 Lei | |
| 29 | 174281 | 1 | WASHER,SPECIAL | 8,51 Lei | |
| 30 | 174277 | 1 | HOUSING, HEAD VALVE ASSY | 10,5 Lei | |
| 31 | 108467 | 1 | O-RING,1.237X.103 | 43,16 Lei | |
| 33 | 174282 | 1 | SEAL, TRIGGER STEM | 5,15 Lei | |
| 34 | 174283 | 1 | STEM | 5,15 Lei | |
| 35 | 174313 | 1 | O-RING,.042X.050 | 5,15 Lei | |
| 36 | 174284 | 1 | SEAL, VALVE | 5,15 Lei | |
| 37 | 174276 | 1 | HOUSING, TRIGGER | 5,15 Lei | |
| 38 | 174285 | 1 | SCREW, M3 X 16 | 5,15 Lei | |
| 39 | 174269 | 1 | ASSEMBLY, TRIGGER | 10,5 Lei | |
| 42 | 180475 | 1 | PIN | 5,15 Lei | |
| 43 | P2866300565 | 1 | TAIL HANGER | 5,15 Lei | |
| 44 | MSC4070-12 | 1 | SCREW | 5,15 Lei | |
| 48 | S0110408100 | 1 | HEX.SOC.HD.BOLT | 5,15 Lei | |
| 50 | P1245200362 | 1 | NAIL SLIDE GUIDE | 14,07 Lei | |
| 51 | S0310306100 | 1 | FLAT HD. SOC. SCREW | 5,15 Lei | |
| 52 | P1245200662 | 1 | STOP PLATE A | 5,15 Lei | |
| 53 | S0110304100 | 1 | HEX. SOC. HD. BOLT | 5,15 Lei | |
| 54 | P2860000700 | 1 | MAGAZINE B UNIT | 79,8 Lei | |
| 55 | P1240000800 | 1 | SPRING | 5,15 Lei | |
| 57 | P1245200762 | 1 | STOP PLATE B | 5,15 Lei | |
| 58 | P1245201762 | 1 | BUSHING | 5,15 Lei | |
| 59 | P1240001600 | 1 | SPRING | 5,15 Lei | |
| 60 | P1246301465 | 1 | SPRING BRACKET | 5,15 Lei | |
| 61 | S0803006000 | 1 | SPRING PIN | 5,15 Lei | |
| 62 | P2860000100 | 1 | END COVER | 5,15 Lei | |
| 63 | JA4501I1 | 1 | END COVER PLATE | 5,15 Lei | |
| 65 | P0645201462 | 1 | REAR PLATE | 5,15 Lei | |
| 66 | 9R199443 | 1 | SCREW | 4,57 Lei | |
| 68 | 174322 | 1 | WRENCH | 21,11 Lei | |
| 70 | 9R209571 | 1 | TRIGGER | 6,23 Lei | |
| 71 | 174300 | 1 | SPRING, COMPRESSION, CONICAL | 5,15 Lei | |
| 72 | 177685 | 1 | PIN-M4x32 | 5,15 Lei | |
| 74 | S2710408100 | 1 | BOLT | 3,78 Lei |
