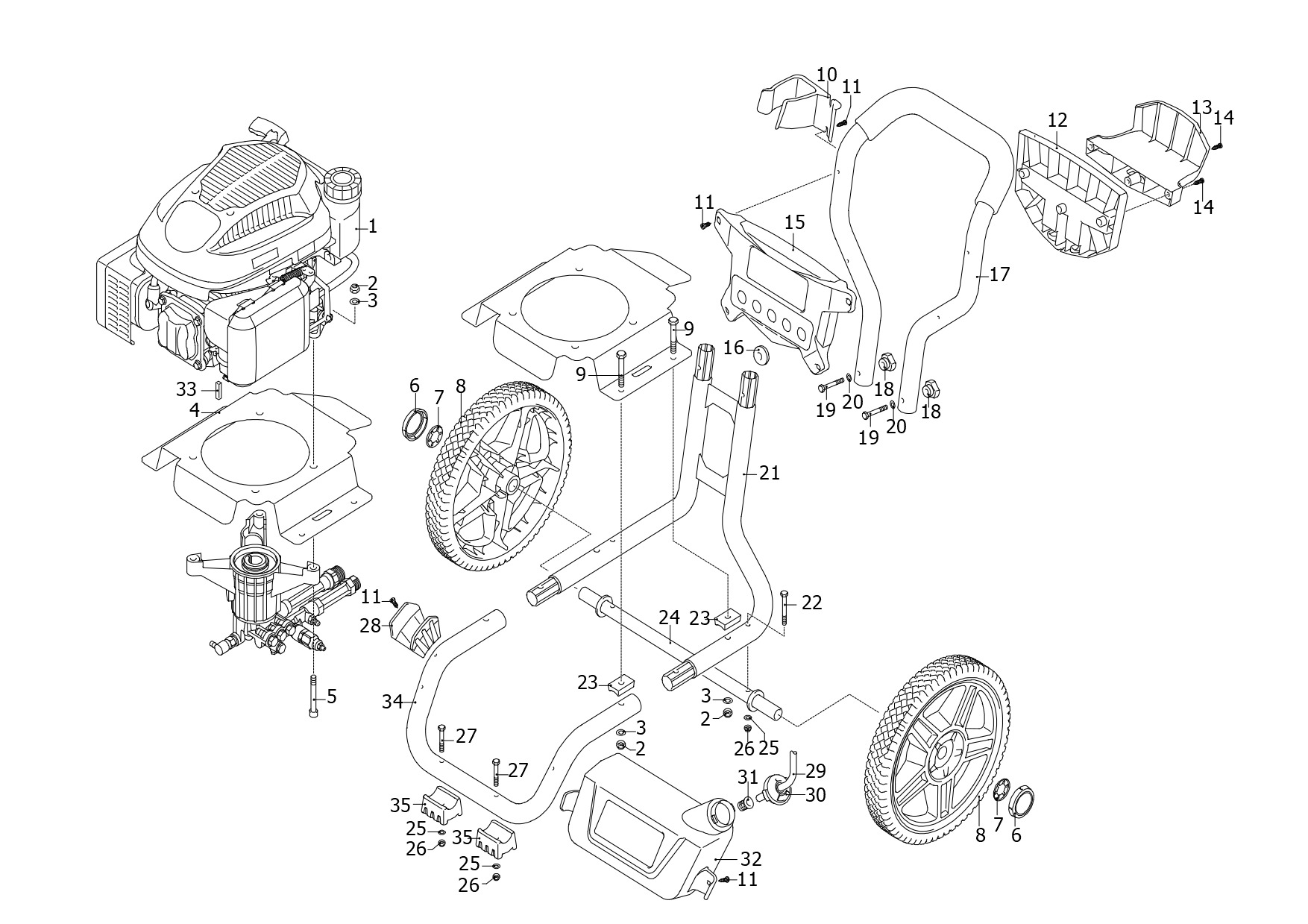

STANLEY PRESSURE WASHER (Type 1)
SKU Produs: SXPW240TRA /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004784-64 | 1 | MOTOR SA | 1947,04 Lei | |
| 2 | 1004709-57 | 8 | NUT | 12,71 Lei | |
| 3 | 1004709-70 | 8 | WASHER | 5,21 Lei | |
| 4 | 1004784-65 | 1 | SUPPORT | 570,96 Lei | |
| 5 | 1004784-66 | 4 | SCREW | 12,71 Lei | |
| 6 | 1004784-67 | 2 | COVER | 195,02 Lei | |
| 7 | 380620 | 2 | WASHER | 6,23 Lei | |
| 8 | 1004784-68 | 2 | WHEEL | 145,09 Lei | |
| 9 | 1004784-69 | 4 | SCREW | 12,71 Lei | |
| 10 | 1004784-70 | 1 | CARRIER | 169,36 Lei | |
| 11 | 1004712-12 | 8 | SCREW | 5,21 Lei | |
| 12 | 1004784-71 | 1 | GUARD | 213,19 Lei | |
| 13 | 1004784-72 | 1 | CARRIER | 181,55 Lei | |
| 14 | 1004712-13 | 3 | SCREW | 5,21 Lei | |
| 15 | 1004784-73 | 1 | SUPPORT | 181,55 Lei | |
| 16 | 1004784-74 | 5 | HOLDER | 12,71 Lei | |
| 17 | 1004784-75 | 1 | HANDLE | 750,36 Lei | |
| 18 | 1004774-14 | 2 | KNOB | 30,87 Lei | |
| 19 | 1004784-76 | 2 | SCREW | 5,21 Lei | |
| 20 | 1004784-77 | 2 | WASHER | 5,21 Lei | |
| 21 | 1004784-78 | 1 | FRAME SA | 980,83 Lei | |
| 22 | 1004784-79 | 2 | SCREW | 5,21 Lei | |
| 23 | 1004784-80 | 4 | SPACER | 12,71 Lei | |
| 24 | 1004784-81 | 1 | AXLE | 318,26 Lei | |
| 25 | 1004784-82 | 4 | WASHER | 7,37 Lei | |
| 26 | 3000170 | 4 | NUT | 5,21 Lei | |
| 27 | 1004784-83 | 2 | SCREW | 6,23 Lei | |
| 28 | 1004784-84 | 1 | CARRIER | 145,09 Lei | |
| 29 | 1004710-70 | 1 | HOSE | 19,95 Lei | |
| 30 | 1004784-85 | 1 | PLUG | 80,04 Lei | |
| 31 | 1004784-86 | 1 | FILTER | 12,71 Lei | |
| 32 | 1004784-87 | 1 | TANK | 252,58 Lei | |
| 33 | 1004784-88 | 1 | KEY | 34,05 Lei | |
| 34 | 1004784-89 | 1 | FRAME | 451,79 Lei | |
| 35 | 1004784-90 | 2 | BASE | 34,05 Lei | |
| 36 | 1004710-34 | 1 | NUT | 5,21 Lei | |
| 37 | 1004709-74 | 1 | SCREW | 5,21 Lei | |
| 38 | 1004784-91 | 1 | INSERT | 195,02 Lei | |
| 39 | 1004711-87 | 2 | PLATE | 5,21 Lei | |
| 41 | 1004712-59 | 1 | SPRING | 19,95 Lei | |
| 42 | 1004784-92 | 1 | PISTON | 57,81 Lei | |
| 43 | 1004712-21 | 1 | O RING | 7,37 Lei | |
| 44 | 1004709-88 | 1 | O RING | 5,21 Lei | |
| 45 | 1004712-52 | 1 | RING | 10,29 Lei | |
| 46 | 1004784-93 | 1 | GUIDE | 570,96 Lei | |
| 47 | 1004709-90 | 2 | O RING | 5,21 Lei | |
| 48 | 1004710-05 | 1 | O RING | 5,21 Lei | |
| 49 | 1004784-94 | 1 | SHUTTER | 57,81 Lei | |
| 50 | 1004784-95 | 1 | SEAT | 30,87 Lei | |
| 51 | 1004711-57 | 1 | O RING | 5,21 Lei | |
| 52 | 3700240 | 1 | COUPLING | 15,12 Lei | |
| 53 | 1004709-78 | 1 | O RING | 5,21 Lei | |
| 54 | 1004710-50 | 1 | BALL | 5,21 Lei | |
| 55 | 1004711-70 | 1 | SPRING | 5,21 Lei | |
| 56 | 1004712-70 | 1 | SCREW | 12,71 Lei | |
| 57 | 1004784-96 | 1 | PLUG | 70,39 Lei | |
| 58 | 1004784-97 | 6 | VALVE | 34,05 Lei | |
| 59 | 1004784-98 | 1 | HEAD SA | 157,92 Lei | |
| 60 | 1004712-18 | 3 | SEAL | 7,37 Lei | |
| 61 | 1004784-99 | 3 | BUSHING | 5,21 Lei | |
| 62 | 1004711-74 | 3 | SEAL | 8,64 Lei | |
| 63 | 1004785-00 | 1 | PLUG | 12,71 Lei | |
| 64 | 1004785-01 | 1 | PUMP SA | 240,38 Lei | |
| 65 | 1004785-02 | 3 | SCREW | 5,21 Lei | |
| 66 | 1004785-03 | 1 | FITTING | 276,84 Lei | |
| 67 | 1004785-04 | 1 | FITTING | 80,04 Lei | |
| 68 | 1004711-50 | 1 | O RING | 5,21 Lei | |
| 69 | 1004785-05 | 1 | VALVE | 30,87 Lei | |
| 70 | 1004785-06 | 1 | SPRING | 5,21 Lei | |
| 71 | 1004710-00 | 2 | O RING | 5,21 Lei | |
| 72 | 3700200 | 1 | VALVE | 70,39 Lei | |
| 73 | 1004785-07 | 1 | FITTING | 130,35 Lei | |
| 74 | 1004785-08 | 3 | SPRING | 5,21 Lei | |
| 75 | 1004785-09 | 3 | PISTON | 21,85 Lei | |
| 76 | 1004712-64 | 3 | LOCK | 5,21 Lei | |
| 77 | 1004785-10 | 1 | WHEEL | 80,04 Lei | |
| 78 | 1004785-11 | 1 | WHEEL | 52,22 Lei | |
| 79 | 1004785-12 | 1 | WHEEL | 19,95 Lei | |
| 80 | 1004785-13 | 1 | PLATE | 130,35 Lei | |
| 81 | 1004785-14 | 1 | BEARING | 145,09 Lei | |
| 82 | 1004785-15 | 1 | RING | 10,29 Lei | |
| 83 | 1004785-16 | 1 | RING | 25,54 Lei | |
| 84 | 1004712-71 | 3 | O RING | 5,21 Lei | |
| 86 | 1004785-17 | 1 | SEAT | 12,71 Lei | |
| 88 | 1004709-81 | 1 | O RING | 5,21 Lei | |
| 91 | 1004785-18 | 3 | VALVE | 96,56 Lei | |
| 92 | 2841520 | 1 | O RING | 5,21 Lei | |
| 93 | 1004785-19 | 1 | O RING | 5,21 Lei | |
| 94 | 1004785-20 | 1 | HANDLE | 240,38 Lei | |
| 95 | 1004709-73 | 1 | O RING | 5,21 Lei | |
| 96 | 1004785-21 | 1 | EXTENSION | 145,09 Lei | |
| 98 | 1004712-02 | 1 | O RING | 10,29 Lei | |
| 99 | 1004785-23 | 1 | NOZZLE | 80,04 Lei | |
| 100 | 1004785-24 | 1 | NOZZLE | 80,04 Lei | |
| 101 | 1004785-25 | 1 | NOZZLE | 80,04 Lei | |
| 102 | 1004785-26 | 1 | NOZZLE | 80,04 Lei |
