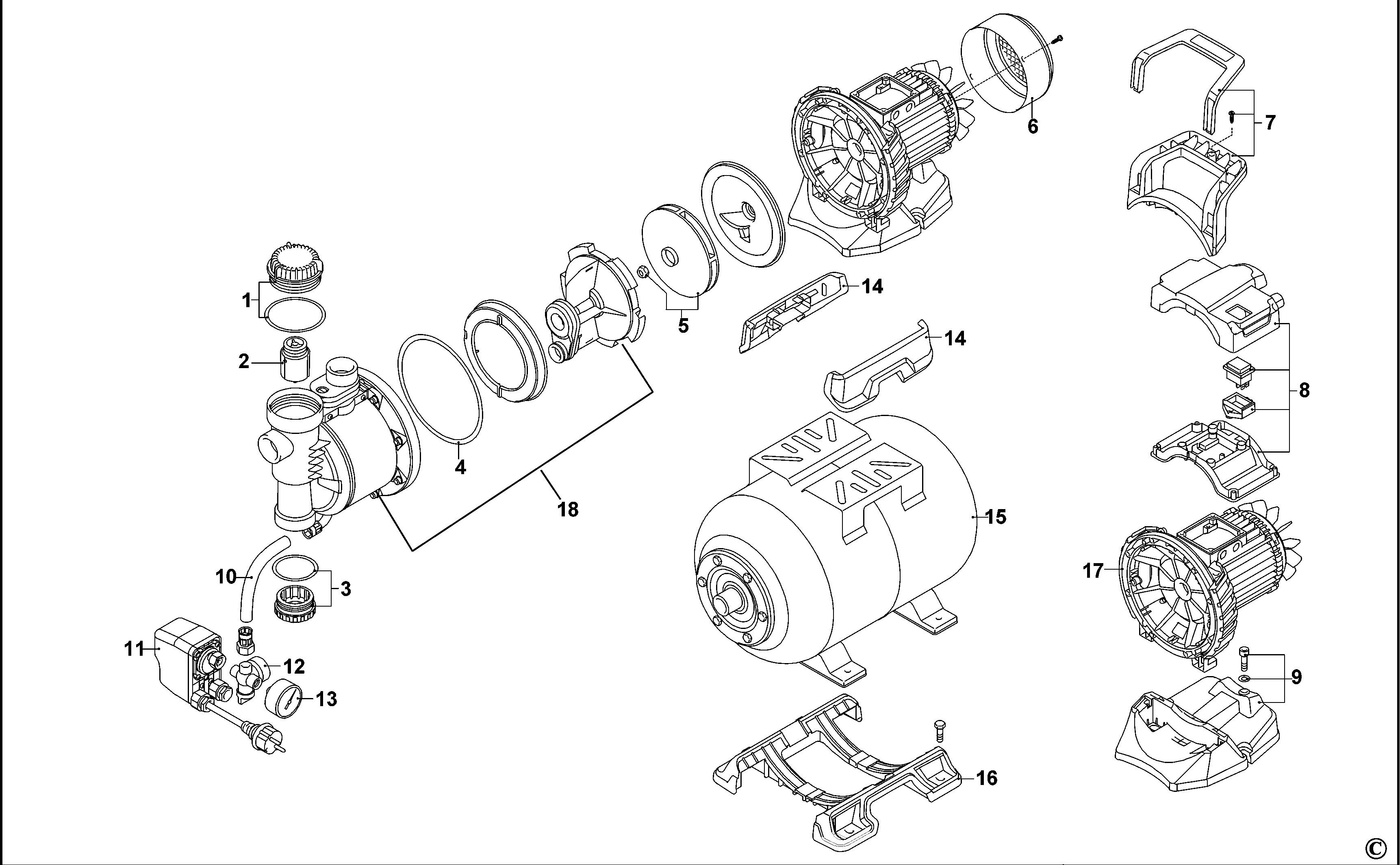

STANLEY PUMP (Type 1)
SKU Produs: SXGP1300XFB /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004735-19 | 1 | PLUG | 7,37 Lei | |
| 2 | 1004735-05 | 1 | FILTER | 57,81 Lei | |
| 3 | 1004735-50 | 1 | PLUG | 6,23 Lei | |
| 4 | 1004735-10 | 1 | O RING | 52,22 Lei | |
| 5 | 1004735-51 | 1 | FAN SA | 130,35 Lei | |
| 6 | 1004735-20 | 1 | FAN COVER | 96,56 Lei | |
| 7 | 1004735-16 | 1 | HANDLE SA | 130,35 Lei | |
| 8 | 1004735-52 | 1 | BOX | 289,04 Lei | |
| 9 | 1004735-18 | 1 | BASE SA | 361,33 Lei | |
| 10 | 1004735-06 | 1 | PIPE | 300,47 Lei | |
| 11 | 1004735-07 | 1 | SWITCH AND CABLE SA | 145,09 Lei | |
| 12 | 1004735-09 | 1 | COUPLING | 145,09 Lei | |
| 13 | 1004735-08 | 1 | PRESSURE GAUGE | 130,35 Lei | |
| 14 | 1004735-23 | 2 | GUARD | 213,19 Lei | |
| 15 | 1004735-39 | 1 | TANK | 433,24 Lei | |
| 16 | 1004735-22 | 1 | FOOT | 433,24 Lei | |
| 17 | 1004735-46 | 1 | MOTOR 230V | 819,98 Lei | |
| 18 | 1004761-85 | 1 | HEAD SA | 252,58 Lei |
