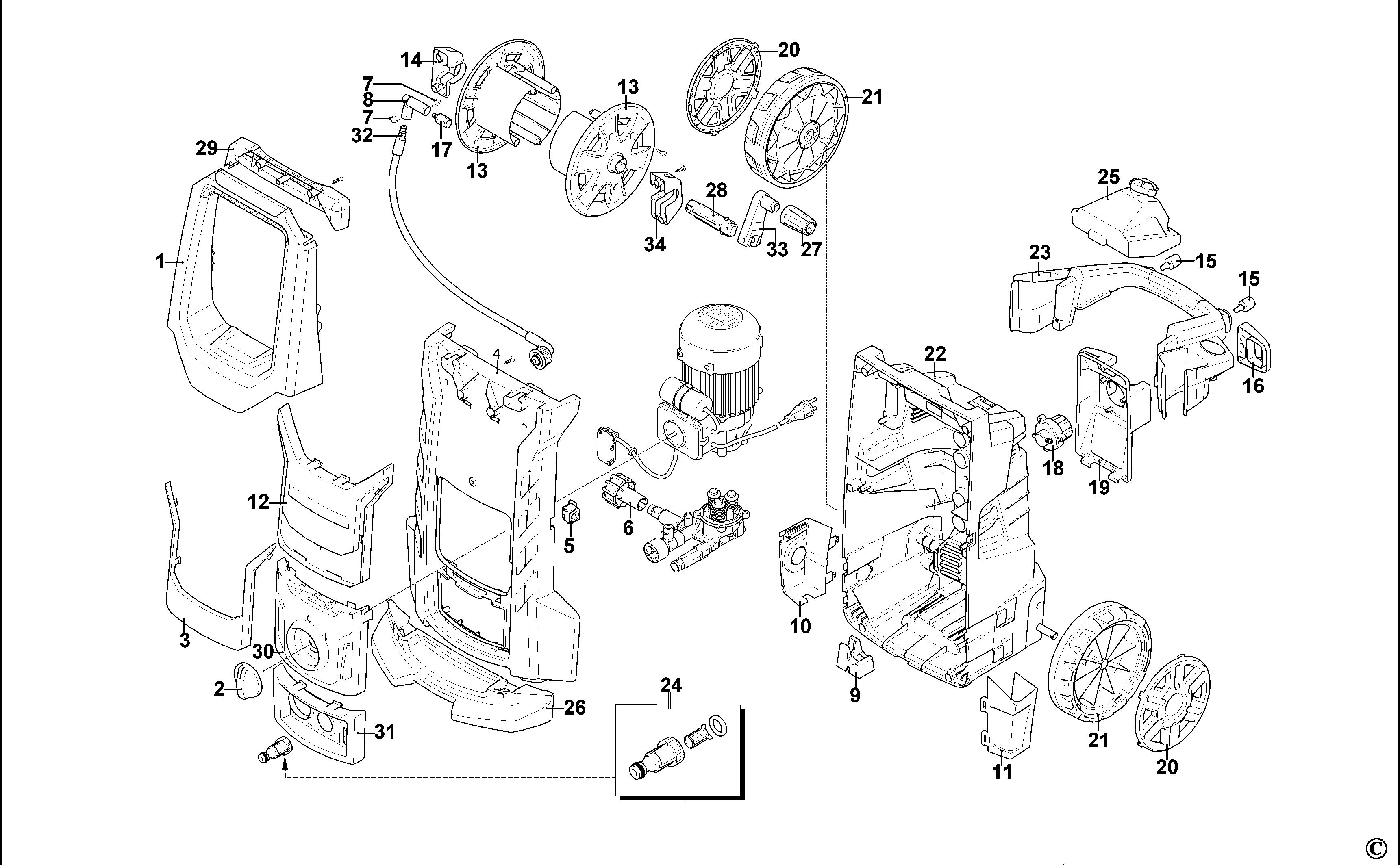

STANLEY PRESSURE WASHER (Type 1)
SKU Produs: SXFPW30E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 4381020 | 1 | HANDLE UPPER | 106,98 Lei | |
| 2 | 4381120 | 1 | KNOB | 31,6 Lei | |
| 3 | 4381950 | 1 | GUARD | 30,87 Lei | |
| 4 | 4380970 | 1 | COVER | 161,6 Lei | |
| 6 | 4381220 | 1 | KNOB | 52,22 Lei | |
| 7 | 3081650 | 2 | FORK | 13 Lei | |
| 8 | 4101250 | 1 | COUPLING | 98,8 Lei | |
| 9 | 4381150 | 1 | SUPPORT | 10,29 Lei | |
| 10 | 4381070 | 1 | CARRIER | 72 Lei | |
| 11 | 4381060 | 1 | CARRIER | 22,4 Lei | |
| 12 | 4381940 | 1 | GUARD | 52,22 Lei | |
| 13 | 4381840 | 2 | PLATE | 148,5 Lei | |
| 14 | 4381170 | 1 | BRACKET | 8,8 Lei | |
| 15 | 1004712-16 | 2 | FOOT | 25,54 Lei | |
| 16 | 4381050 | 1 | HANDLE | 13 Lei | |
| 17 | 4101030 | 1 | PLUG | 98,8 Lei | |
| 18 | 1004512-37 | 1 | REGULATOR | 34,8 Lei | |
| 19 | 4381040 | 1 | COVER | 199,6 Lei | |
| 20 | 4381110 | 2 | GUARD | 59,2 Lei | |
| 21 | 4381100 | 2 | WHEEL | 145,09 Lei | |
| 22 | 4380960 | 1 | BASE SA | 246 Lei | |
| 23 | 4380230 | 1 | CARRIER | 53,4 Lei | |
| 24 | 1004700-77 | 1 | COUPLING SA | 34,8 Lei | |
| 25 | 4381080 | 1 | TANK | 98,8 Lei | |
| 26 | 4381230 | 1 | FOOT | 218,1 Lei | |
| 27 | 4381180 | 1 | KNOB | 12,71 Lei | |
| 28 | 4381200 | 1 | PIN | 31,6 Lei | |
| 29 | 4381030 | 1 | HANDLE | 34,8 Lei | |
| 30 | 4381960 | 1 | GUARD | 57,81 Lei | |
| 31 | 4381680 | 1 | GUARD | 34,05 Lei | |
| 32 | 4381240 | 1 | HOSE | 173,3 Lei | |
| 33 | 4381190 | 1 | LEVER | 26,1 Lei | |
| 34 | 4381160 | 1 | BRACKET | 13 Lei | |
| 35 | 3720730 | 1 | PLUG | 57,81 Lei | |
| 36 | 3400970 | 1 | HEAD | 570,96 Lei | |
| 37 | 1004709-97 | 3 | SCREW | 7,37 Lei | |
| 38 | 1004710-05 | 1 | O RING | 5,21 Lei | |
| 39 | 3401000 | 1 | COUPLING | 80,04 Lei | |
| 40 | 2841520 | 4 | O RING | 5,21 Lei | |
| 41 | 3960430 | 1 | COUPLING | 130,35 Lei | |
| 42 | 1004709-78 | 1 | O RING | 5,21 Lei | |
| 43 | 2849051 | 1 | VALVE | 80,04 Lei | |
| 44 | 1004712-18 | 6 | SEAL | 7,37 Lei | |
| 45 | 1004709-93 | 3 | O RING | 5,21 Lei | |
| 46 | 1004712-69 | 3 | BUSHING | 41,93 Lei | |
| 47 | 1004712-68 | 3 | BUSHING | 12,71 Lei | |
| 48 | 1004711-74 | 3 | SEAL | 8,64 Lei | |
| 49 | 1004712-82 | 4 | SCREW | 7,37 Lei | |
| 49 | 1004712-83 | 4 | BASE SA | 195,02 Lei | |
| 49 | 1004712-84 | 4 | AXLE | 68,7 Lei | |
| 50 | 1004713-41 | 1 | GUIDE | 96,56 Lei | |
| 51 | 1004712-87 | 3 | SPRING | 10,29 Lei | |
| 52 | 1004712-67 | 3 | PISTON | 41,93 Lei | |
| 53 | 1004712-64 | 3 | LOCK | 5,21 Lei | |
| 54 | 4240270 | 1 | FORK | 30,87 Lei | |
| 55 | 1004711-50 | 1 | O RING | 5,21 Lei | |
| 56 | 1004712-73 | 3 | PLUG | 25,54 Lei | |
| 57 | 3960440 | 1 | PLUG | 96,56 Lei | |
| 58 | 1004712-92 | 1 | O RING | 5,21 Lei | |
| 59 | 1004730-85 | 1 | PRESSURE GAUGE | 130,35 Lei | |
| 60 | 1004711-70 | 1 | SPRING | 5,21 Lei | |
| 61 | 1004710-50 | 1 | BALL | 5,21 Lei | |
| 62 | 1004709-78 | 1 | O RING | 5,21 Lei | |
| 63 | 3700240 | 1 | COUPLING | 15,12 Lei | |
| 64 | 1004711-49 | 1 | O RING | 5,21 Lei | |
| 65 | 1004712-85 | 1 | SHUTTER | 19,95 Lei | |
| 66 | 1004713-55 | 1 | SPRING | 5,21 Lei | |
| 67 | 1004710-00 | 2 | O RING | 5,21 Lei | |
| 68 | 3700200 | 1 | VALVE | 70,39 Lei | |
| 69 | 1004710-43 | 1 | O RING | 5,21 Lei | |
| 70 | 1004709-81 | 1 | O RING | 5,21 Lei | |
| 71 | 1004712-08 | 1 | PIN | 21,85 Lei | |
| 72 | 1004712-05 | 1 | SPRING | 5,21 Lei | |
| 73 | 1004712-06 | 1 | WASHER | 5,21 Lei | |
| 74 | 1004710-62 | 1 | O RING | 5,21 Lei | |
| 75 | 1004711-06 | 1 | BOLT | 52,22 Lei | |
| 76 | 1004709-35 | 1 | KIT | 120,82 Lei | |
| 77 | 2901270 | 1 | SEAT | 70,39 Lei | |
| 78 | 1004709-81 | 1 | O RING | 5,21 Lei | |
| 79 | 1004711-46 | 1 | PISTON | 41,93 Lei | |
| 80 | 1004712-07 | 1 | PISTON | 57,81 Lei | |
| 81 | 1004710-38 | 1 | O RING | 5,21 Lei | |
| 82 | 1004709-81 | 1 | O RING | 5,21 Lei | |
| 83 | 1004710-41 | 1 | RING | 5,21 Lei | |
| 84 | 1004710-05 | 1 | O RING | 5,21 Lei | |
| 85 | 1004709-90 | 1 | O RING | 5,21 Lei | |
| 86 | 1004711-07 | 1 | GUIDE | 106,98 Lei | |
| 87 | 1004710-96 | 1 | PLATE | 12,71 Lei | |
| 88 | 1004711-47 | 1 | SPRING | 5,21 Lei | |
| 89 | 1004711-87 | 1 | PLATE | 5,21 Lei | |
| 90 | 1004710-36 | 1 | PIN | 8,64 Lei | |
| 91 | 1004711-08 | 1 | INSERT | 96,56 Lei | |
| 92 | 1004711-90 | 1 | SCREW | 5,21 Lei | |
| 93 | 1004710-34 | 1 | NUT | 5,21 Lei | |
| 94 | 4240530 | 1 | KNOB | 34,05 Lei | |
| 95 | 1004710-49 | 2 | O RING | 5,21 Lei | |
| 96 | 1004730-86 | 1 | VALVE KIT | 195,02 Lei | |
| 97 | 1004759-44 | 1 | HEAD SA | 980,83 Lei | |
| 98 | 1004712-71 | 1 | O RING | 5,21 Lei | |
| 99 | 1004708-87 | 1 | VALVE KIT | 70,39 Lei | |
| 100 | 1004708-88 | 1 | PISTON KIT | 57,81 Lei | |
| 101 | 1004709-23 | 1 | SEALS KIT | 41,93 Lei | |
| 102 | 1004730-87 | 1 | GASKET SET | 106,98 Lei | |
| 104 | 3400600 | 1 | PLATE | 70,39 Lei | |
| 105 | 3081750 | 1 | WASHER | 4,7 Lei | |
| 106 | 3441000 | 1 | RING | 4,7 Lei | |
| 107 | 1004712-31 | 4 | SCREW | 13,85 Lei | |
| 108 | 1004714-14 | 1 | BODY | 145,09 Lei | |
| 109 | 1004711-53 | 1 | BEARING | 8,64 Lei | |
| 110 | 1004711-45 | 1 | COVER | 130,35 Lei | |
| 111 | 1004711-54 | 1 | SEAL | 10,29 Lei | |
| 112 | 1004709-75 | 1 | O RING | 5,21 Lei | |
| 114 | 1004714-15 | 1 | CONVEYOR | 70,39 Lei | |
| 115 | 1004711-73 | 2 | WASHER | 5,21 Lei | |
| 116 | 1004711-51 | 2 | SCREW | 5,21 Lei | |
| 117 | 1004709-87 | 1 | O RING | 5,21 Lei | |
| 118 | 1004712-32 | 1 | BOX | 41,93 Lei | |
| 119 | 1004710-65 | 1 | WASHER | 5,21 Lei | |
| 120 | 1004712-03 | 3 | SCREW | 5,21 Lei | |
| 121 | 1004714-13 | 1 | COVER | 41,93 Lei | |
| 122 | 1004744-81 | 1 | SWITCH | 70,39 Lei | |
| 123 | 1004712-04 | 1 | GLAND | 17,02 Lei | |
| 124 | 1004714-18 | 1 | CORDSET | 145,09 Lei | |
| 125 | 1004712-35 | 1 | O RING | 5,21 Lei | |
| 126 | 1004711-98 | 1 | CAPACITOR | 120,82 Lei | |
| 127 | 4381930 | 1 | MOTOR SA | 2410,27 Lei | |
| 128 | 1004712-09 | 1 | FORK | 12,71 Lei | |
| 128 | 1004712-10 | 1 | BOX | 154,1 Lei | |
| 129 | 1004770-85 | 1 | BOX | 145,09 Lei | |
| 130 | 1004712-01 | 2 | SCREW | 5,21 Lei | |
| 131 | 1004712-04 | 2 | GLAND | 17,02 Lei | |
| 132 | 1004712-17 | 1 | O RING | 12,71 Lei | |
| 133 | 1004709-71 | 1 | O RING | 5,21 Lei | |
| 134 | 4381910 | 1 | HANDLE SA | 283,3 Lei | |
| 135 | 1004775-13 | 1 | EXTENSION | 195,02 Lei | |
| 136 | 4382350 | 1 | EXTENSION | 218,1 Lei | |
| 137 | 4382170 | 1 | HOSE | 1003,6 Lei | |
| 138 | 3083690 | 1 | O RING | 4,7 Lei | |
| 139 | 3083380 | 2 | O RING | 5,21 Lei |
