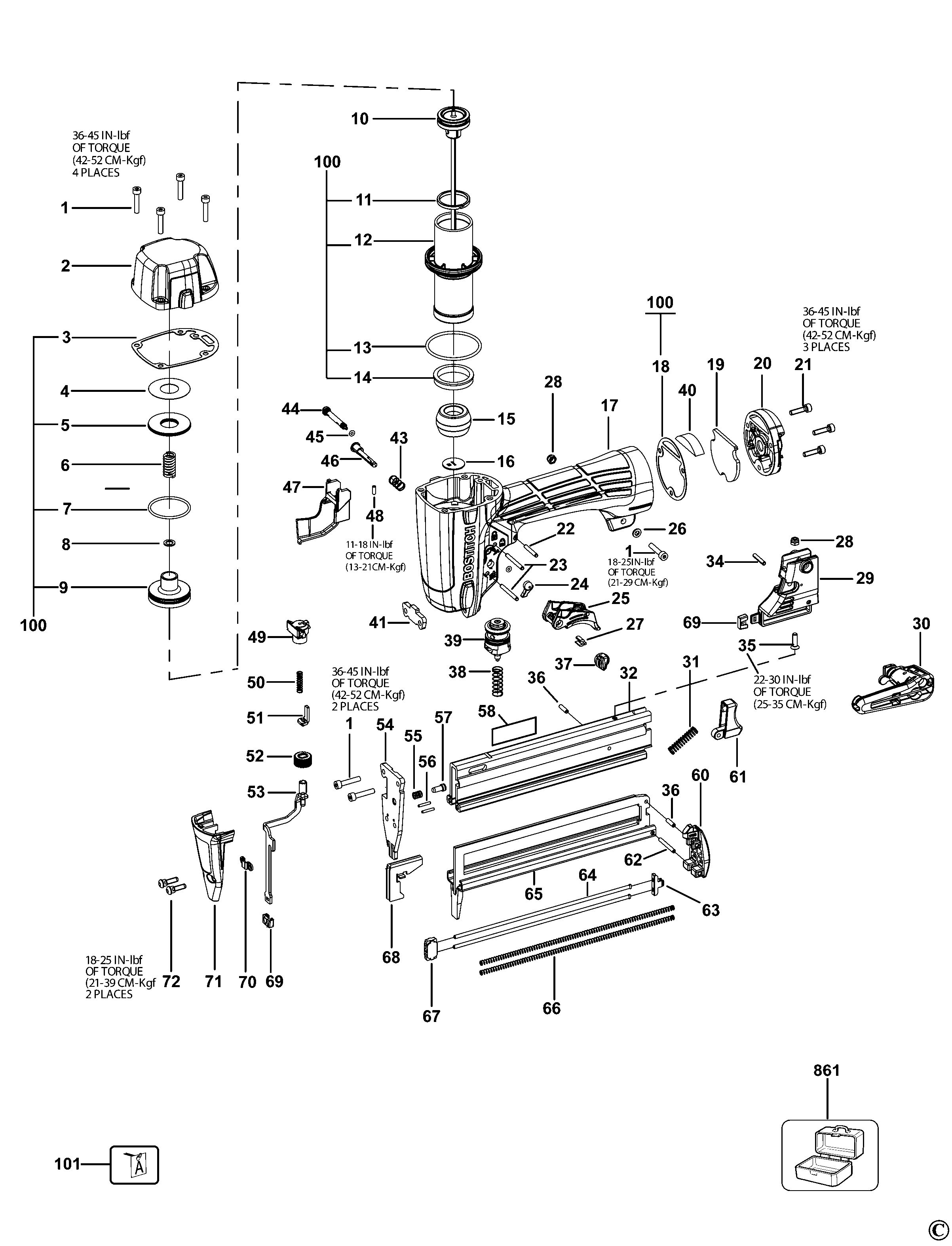

BOSTITCH PNEUMATIC STAPLER (Type 1)
SKU Produs: SX1838-E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N906076 | 1 | SCREW | 3,78 Lei | |
| 2 | 9R207412 | 1 | CAP SA | 47,78 Lei | |
| 3 | 175682 | 1 | GASKET | 5,15 Lei | |
| 5 | 180446 | 1 | SEAL | 5,15 Lei | |
| 6 | 180447 | 1 | SPRING | 5,15 Lei | |
| 7 | 180448 | 1 | O RING | 5,15 Lei | |
| 8 | 180449 | 1 | WASHER | 5,15 Lei | |
| 9 | 180450-S | 1 | BODY, HEAD VALVE (NEW 05/AP/2011) | 5,15 Lei | |
| 10 | 180205-K | 1 | DRIVER SA | 28,14 Lei | |
| 12 | 180458 | 1 | CYLINDER | 7,14 Lei | |
| 13 | 180459 | 1 | O RING | 5,15 Lei | |
| 14 | 180460 | 1 | SEAL | 5,15 Lei | |
| 15 | 180461 | 1 | BUMPER | 5,15 Lei | |
| 16 | N906034 | 1 | GUIDE | 3,78 Lei | |
| 17 | 175656-2 | 1 | HOUSING | 248,33 Lei | |
| 18 | 180463 | 1 | GASKET | 5,15 Lei | |
| 19 | 182235 | 1 | FILTER | 5,15 Lei | |
| 20 | 180465 | 1 | CAP | 16,49 Lei | |
| 21 | 182237 | 1 | SCREW | 5,15 Lei | |
| 22 | 180475 | 1 | PIN | 5,15 Lei | |
| 23 | 174345 | 1 | PIN | 5,15 Lei | |
| 24 | 184518 | 1 | BUTTON, TRIGGER LOCK | 5,15 Lei | |
| 25 | 184513 | 1 | ASSEMBLY, TRIGGER | 18,06 Lei | |
| 27 | 184508 | 1 | BUSHING | 5,15 Lei | |
| 28 | MHE4070-100 | 1 | NUT | 5,15 Lei | |
| 30 | 182272 | 1 | HOOK | 14,07 Lei | |
| 31 | 180528 | 1 | SPRING, LATCH | 5,15 Lei | |
| 32 | 180192 | 1 | MAGAZINE, FIXED, MACHINING | 43,16 Lei | |
| 34 | 107583 | 1 | SPIROL PIN | 5,15 Lei | |
| 35 | 174307 | 1 | SCREW | 5,15 Lei | |
| 36 | MPG030012 | 1 | PIN-M4x12 | 5,15 Lei | |
| 37 | 184506 | 1 | BUTTON | 5,15 Lei | |
| 38 | 180476 | 1 | SPRING | 5,15 Lei | |
| 39 | 9R202265-TW | 1 | VALVE-KIT | 21,11 Lei | |
| 40 | 180577 | 1 | MUFFLER | 5,15 Lei | |
| 41 | 180208 | 1 | PLATE | 5,15 Lei | |
| 43 | 180481 | 1 | SPRING | 5,15 Lei | |
| 44 | 184519 | 1 | PIN, TRIGGER LOCK | 6,09 Lei | |
| 45 | MRG002514 | 1 | O-RING,.098X.055 | 5,15 Lei | |
| 46 | 184507 | 1 | PIN | 10,5 Lei | |
| 47 | 180530 | 1 | GUIDE | 5,15 Lei | |
| 48 | 180484 | 1 | SCREW | 5,15 Lei | |
| 50 | N906013 | 1 | SPRING | 7,14 Lei | |
| 51 | N905944 | 1 | ARM | 7,14 Lei | |
| 52 | 180509 | 1 | ADJUSTER | 5,15 Lei | |
| 53 | 180318 | 1 | ASSEMBLY, TRIP | 16,49 Lei | |
| 54 | 180190 | 1 | NOSE | 18,06 Lei | |
| 54 | 180319 | 1 | SUPPORT | 5,15 Lei | |
| 55 | 180521 | 1 | SPRING, LOCK OUT | 5,15 Lei | |
| 56 | 180490 | 1 | PIN | 5,15 Lei | |
| 57 | 180522 | 1 | PLUNGER, LOCK OUT | 5,15 Lei | |
| 58 | N762108 | 1 | LABEL | 3,78 Lei | |
| 60 | 180201 | 1 | END CAP, MAGAZINE | 5,15 Lei | |
| 61 | 180529 | 1 | LATCH | 5,15 Lei | |
| 62 | 180567 | 1 | PIN | 5,15 Lei | |
| 63 | 180200 | 1 | SUPPORT, SLIDING GUIDE | 5,15 Lei | |
| 64 | 180526 | 1 | ROD, SPRING GUIDE | 5,15 Lei | |
| 65 | 180206 | 1 | ASSEMBLY, MAGAZINE CORE | 43,16 Lei | |
| 66 | 180527 | 1 | SPRING, PUSHER | 5,15 Lei | |
| 67 | 180199 | 1 | GUIDE, SLIDING | 5,15 Lei | |
| 68 | 180198 | 1 | PUSHER | 5,15 Lei | |
| 69 | 179760 | 1 | FOOT, CONTACT (NO-MAR) | 5,15 Lei | |
| 70 | 180207 | 1 | BRACKET, TRIP | 5,15 Lei | |
| 71 | 180194 | 1 | COVER, NOSE | 5,15 Lei | |
| 72 | 180587 | 1 | SHOULDER SCREW, M4.0X12MM | 3,78 Lei | |
| 100 | BT55/SX38-RK | 1 | BT1855/SX1838 REBUILD KIT | 73,19 Lei | |
| 101 | BT55-SX38-TIPS | 1 | BT1855/SX1838 NO MAR TIP PACK (6PCS) | 6,09 Lei | |
| 861 | 180583 | 1 | CARRY CASE FOR SX1838-BT1855-FN1650 | 66,15 Lei |
