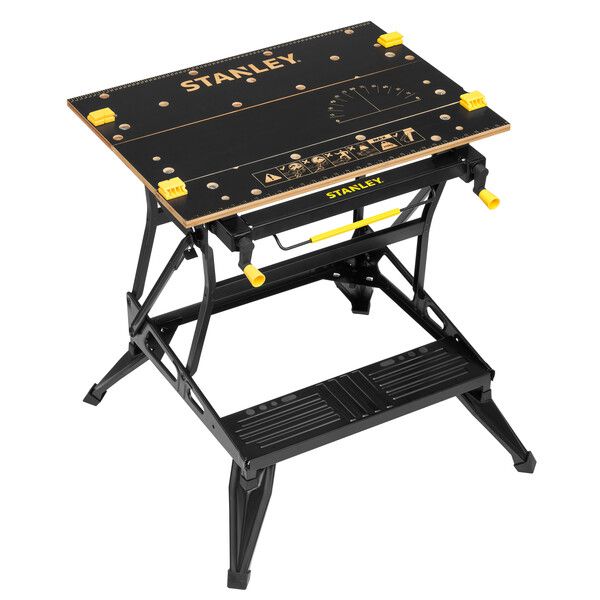

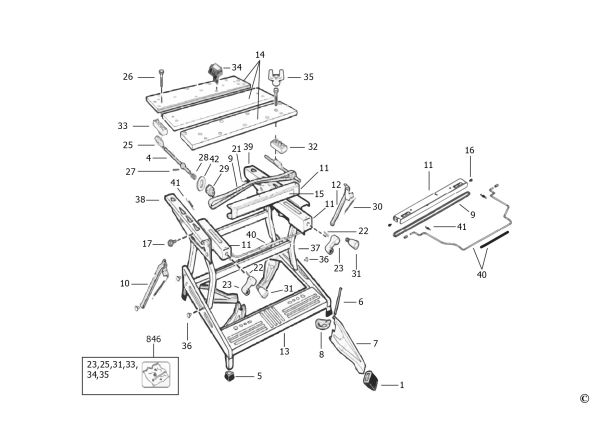

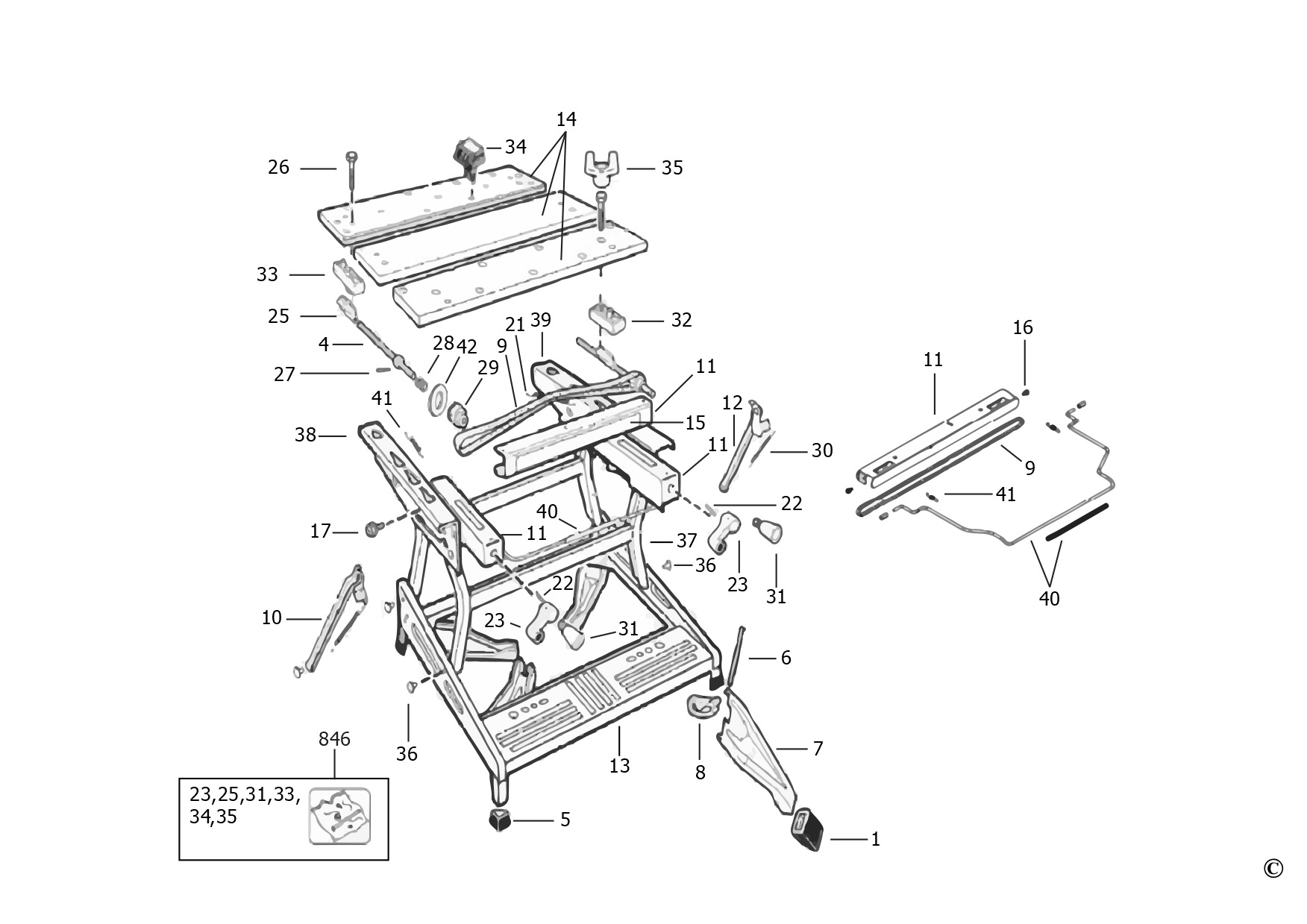

STANLEY WORKBENCH (Type 1)
SKU Produs: STST83800-1 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 242393-00 | 4 | FOOT WM225 | 4,57 Lei | |
| 4 | 574170-00 | 2 | VISE SCREW | 80,04 Lei | |
| 5 | 242394-00 | 4 | FOOT WM225 | 4,57 Lei | |
| 6 | 242400-01 | 4 | PIN | 4,57 Lei | |
| 7 | 242415-02 | 4 | LEG WM225 | 26,1 Lei | |
| 8 | 242416-00 | 4 | CATCH | 5,21 Lei | |
| 9 | 242821-02 | 1 | BELT DRIVE | 41,93 Lei | |
| 10 | 242431-01 | 1 | STAY LH | 88,55 Lei | |
| 11 | 243060-01 | 1 | BRACKET SA | 195,02 Lei | |
| 12 | 242430-02 | 1 | STAY RH | 41,93 Lei | |
| 13 | 242418-04 | 1 | BASEFRAME | 300,47 Lei | |
| 14 | 1004785-59 | 1 | VICE JAW | 472,24 Lei | |
| 15 | 1004785-60 | 1 | RATING PLATE | 25,54 Lei | |
| 17 | 823386-00 | 2 | SCREW.SPECIAL | 10,29 Lei | |
| 22 | 242311-00 | 2 | PIN WM225 | 7,37 Lei | |
| 23 | 242302-00 | 2 | ARM WM225 | 6,23 Lei | |
| 26 | 98025-40 | 6 | BOLT | 4,57 Lei | |
| 29 | 242836-00 | 2 | SPROCKET | 4,57 Lei | |
| 30 | 242425-00 | 2 | SPRING | 7,37 Lei | |
| 31 | 1004785-61 | 2 | KNOB | 4,57 Lei | |
| 32 | 242436-02 | 2 | LOC FRONT | 6,23 Lei | |
| 33 | 243024-00 | 4 | BOLT WM225 | 8,64 Lei | |
| 34 | 1004785-62 | 4 | GRIP | 13,85 Lei | |
| 36 | 242434-00 | 10 | RIVET | 4,57 Lei | |
| 37 | 242408-04 | 2 | FRAME | 181,55 Lei | |
| 38 | 242975-02 | 1 | BRACKET,VISE LH | 34,05 Lei | |
| 39 | 242974-02 | 1 | BRACKET,VISE RH | 34,05 Lei | |
| 40 | 1004785-63 | 1 | GRIP | 5,21 Lei | |
| 41 | 242979-00 | 2 | SPRING | 7,37 Lei | |
| 846 | 242829-04 | 1 | HARDWARE BAG | 96,56 Lei |
