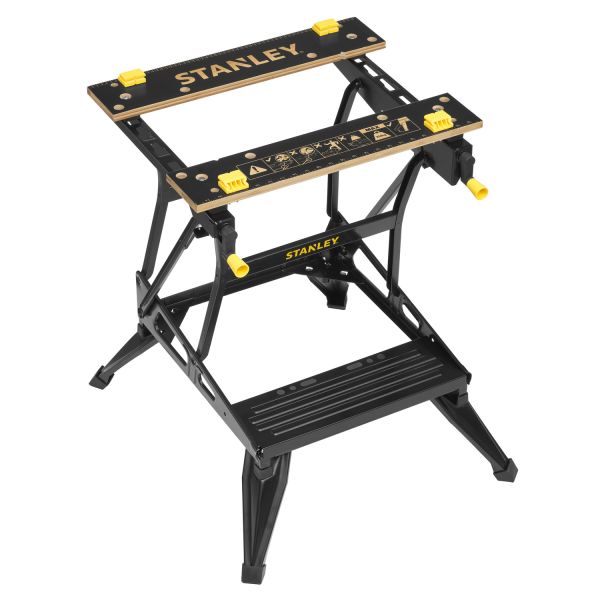

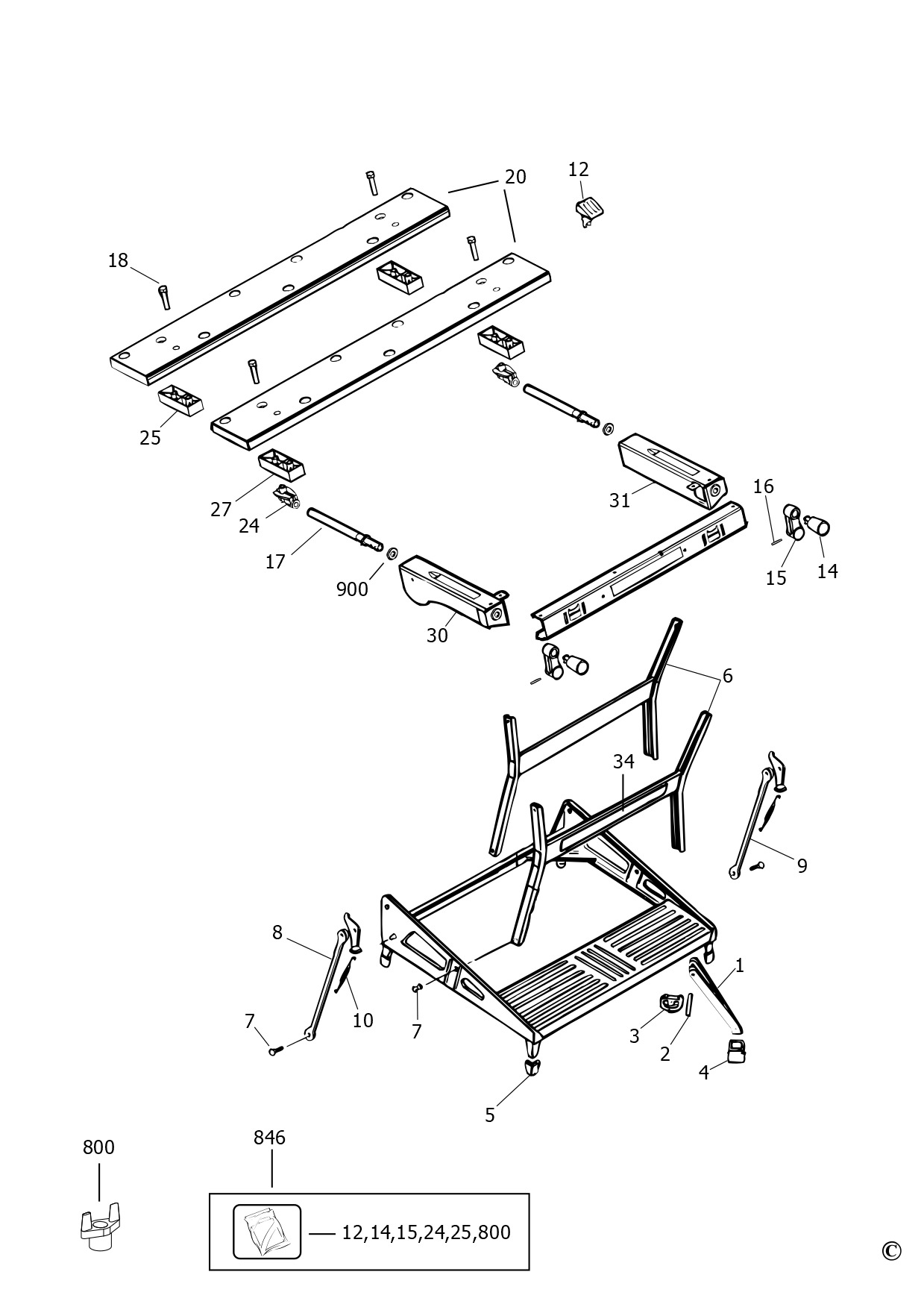

STANLEY WORKBENCH (Type 1)
SKU Produs: STST83400-1 /Type: 1

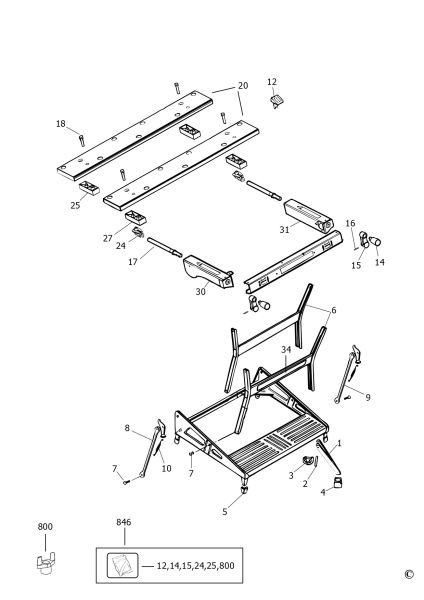

| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 242415-01 | 4 | LEG | 21,11 Lei | |
| 2 | 242400-01 | 4 | PIN | 4,57 Lei | |
| 3 | 242416-00 | 4 | CATCH | 5,21 Lei | |
| 4 | 242393-00 | 4 | FOOT WM225 | 4,57 Lei | |
| 5 | 242394-00 | 4 | FOOT WM225 | 4,57 Lei | |
| 6 | 5140127-24 | 1 | FRAME, H | 240,38 Lei | |
| 7 | 1004688-08 | 10 | RIVET | 5,21 Lei | |
| 8 | 1004688-09 | 1 | STAY LH | 80,04 Lei | |
| 9 | 1004688-10 | 1 | STAY RH | 80,04 Lei | |
| 10 | 242854-00 | 1 | SPRING | 3,78 Lei | |
| 12 | 1004785-54 | 4 | GRIP | 13,85 Lei | |
| 14 | 1004785-55 | 2 | KNOB | 4,57 Lei | |
| 15 | 723541 | 2 | HANDLE ARM | 5,21 Lei | |
| 16 | 242311-00 | 2 | PIN WM225 | 7,37 Lei | |
| 17 | 429922-00 | 2 | VICE SCREW | 28,14 Lei | |
| 18 | 98025-40 | 2 | BOLT | 4,57 Lei | |
| 20 | 1004785-56 | 1 | VICE JAW | 169,36 Lei | |
| 24 | 242445-01 | 2 | NUT | 18,06 Lei | |
| 25 | 243024-00 | 2 | BOLT WM225 | 8,64 Lei | |
| 27 | 242436-02 | 2 | LOC FRONT | 6,23 Lei | |
| 30 | 1004688-11 | 1 | BRACKET RH | 88,55 Lei | |
| 31 | 1004688-12 | 1 | BRACKET LH | 88,55 Lei | |
| 34 | 1004785-57 | 1 | RATING PLATE | 19,95 Lei | |
| 800 | 242437-00 | 1 | SOCKET | 5,15 Lei | |
| 846 | 242829-03 | 1 | BAG,HARDWARE | 80,04 Lei | |
| 900 | 242995-00 | 2 | WASHER | 3,78 Lei |
