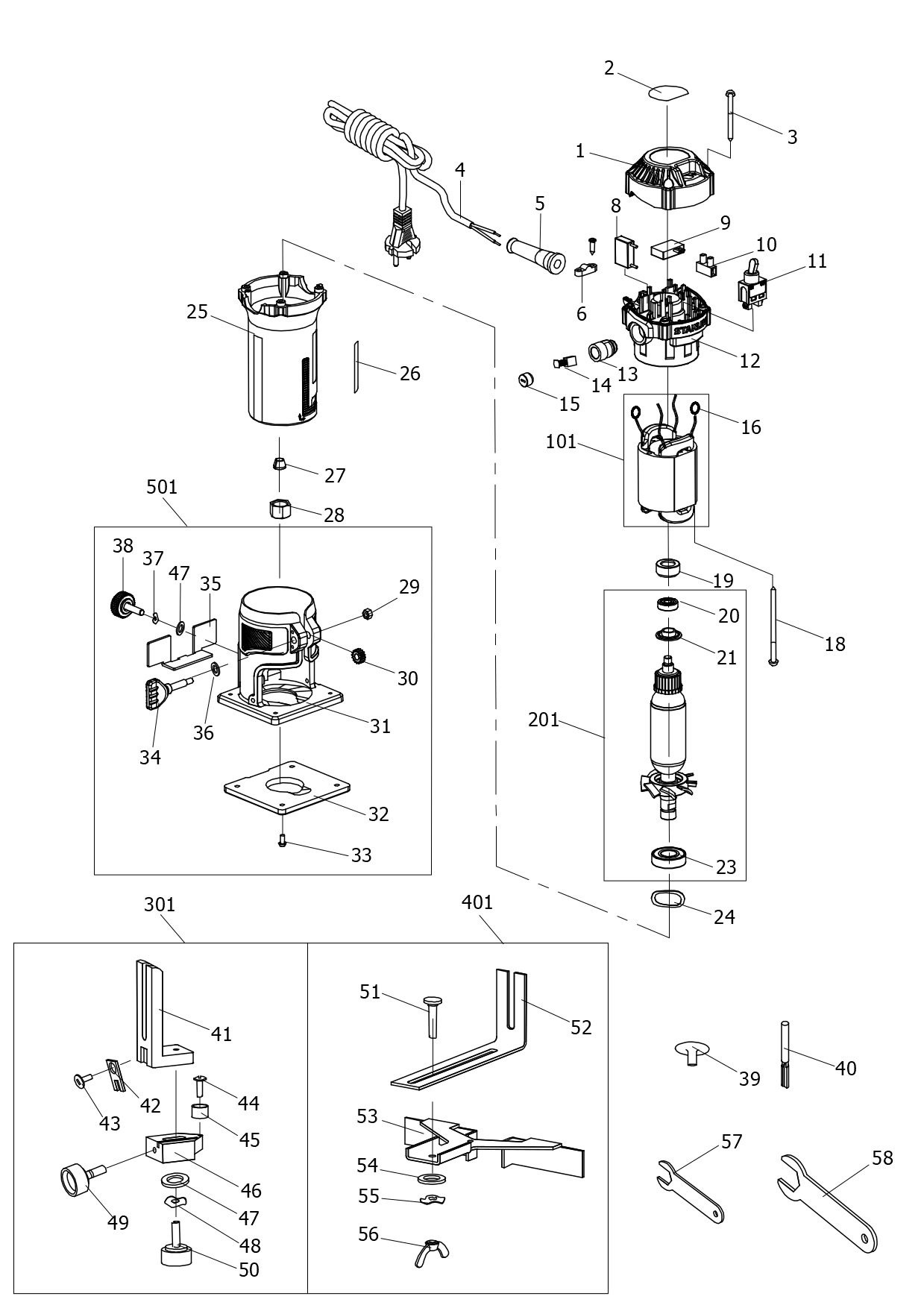

STANLEY LAMINATE TRIMMER (Type 1)
SKU Produs: ST55 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N895570 | 1 | COVER REAR | 15,12 Lei | |
| 3 | N895591 | 4 | SCREW | 4,57 Lei | |
| 4 | N895798 | 1 | CORDSET | 57,81 Lei | |
| 5 | N895800 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 6 | NA045121 | 1 | DIAL PLATE | 4,57 Lei | |
| 8 | N895807 | 1 | CAPACITOR | 8,64 Lei | |
| 9 | N895808 | 1 | MODULE | 41,93 Lei | |
| 10 | N895809 | 1 | TERMINAL | 4,57 Lei | |
| 11 | N895810 | 1 | SWITCH | 21,85 Lei | |
| 12 | N895811 | 1 | BRACKET | 34,05 Lei | |
| 13 | N895812 | 2 | BRUSH AND HOLDER | 15,12 Lei | |
| 14 | NA034177 | 1 | BRUSH PAIR SA | 21,85 Lei | |
| 15 | N895815 | 2 | BRUSH CAP | 4,57 Lei | |
| 16 | N895833 | 2 | RING | 4,57 Lei | |
| 18 | N895836 | 2 | SCREW | 4,57 Lei | |
| 19 | N895837 | 1 | RUBBER SEAL | 13,85 Lei | |
| 20 | N895840 | 1 | BEARING BALL | 19,95 Lei | |
| 21 | N895842 | 1 | WASHER | 4,57 Lei | |
| 23 | N895845 | 1 | BEARING BALL | 34,05 Lei | |
| 24 | N895846 | 1 | WASHER | 4,57 Lei | |
| 25 | N895847 | 1 | MOTOR HOUSING SA | 41,93 Lei | |
| 26 | N885776 | 1 | SCALE | 4,57 Lei | |
| 27 | N895849 | 1 | COLLET | 21,85 Lei | |
| 28 | N895850 | 1 | COLLET NUT | 17,02 Lei | |
| 29 | N895851 | 1 | NUT | 4,57 Lei | |
| 30 | N895861 | 1 | Gear | 5,21 Lei | |
| 31 | N895862 | 1 | BASE | 37,73 Lei | |
| 32 | N895863 | 1 | BASEPLATE | 21,85 Lei | |
| 33 | N895864 | 4 | SCREW | 4,57 Lei | |
| 34 | N895865 | 1 | SCREW | 13,85 Lei | |
| 35 | N895866 | 1 | DEFLECTOR | 8,64 Lei | |
| 36 | N895867 | 1 | WASHER | 4,57 Lei | |
| 37 | N895868 | 1 | WASHER | 4,57 Lei | |
| 38 | N895869 | 1 | SCREW | 8,64 Lei | |
| 39 | N895870 | 1 | GUIDE | 15,12 Lei | |
| 40 | N895873 | 1 | BLADE | 25,54 Lei | |
| 41 | N895875 | 1 | PLATE | 25,54 Lei | |
| 42 | N895876 | 1 | PLATE | 4,57 Lei | |
| 43 | N895877 | 1 | SCREW | 4,57 Lei | |
| 44 | N895878 | 1 | NUT | 8,64 Lei | |
| 45 | N895879 | 1 | ROLLER | 8,64 Lei | |
| 46 | N895880 | 1 | HOOK | 17,02 Lei | |
| 47 | N895881 | 2 | WASHER | 4,57 Lei | |
| 48 | N895882 | 1 | WASHER | 4,57 Lei | |
| 49 | N895885 | 1 | SCREW | 6,23 Lei | |
| 50 | N895886 | 1 | SCREW | 8,64 Lei | |
| 51 | N895888 | 1 | NUT | 4,57 Lei | |
| 52 | N895889 | 1 | GUIDE | 17,02 Lei | |
| 53 | N895890 | 1 | GUIDE | 19,95 Lei | |
| 54 | N895891 | 1 | WASHER | 4,57 Lei | |
| 55 | N895892 | 1 | WASHER | 4,57 Lei | |
| 56 | N895893 | 1 | NUT | 4,57 Lei | |
| 57 | N895894 | 1 | WRENCH | 17,02 Lei | |
| 58 | N895895 | 1 | WRENCH | 17,02 Lei | |
| 101 | N895831 | 1 | STATOR SA | 130,35 Lei | |
| 201 | N895838 | 1 | ROTOR SA | 289,04 Lei | |
| 301 | N895874 | 1 | BEARING | 88,55 Lei | |
| 401 | N895887 | 1 | GUIDE SA | 41,93 Lei | |
| 501 | NA006258 | 1 | BASE SA | 120,82 Lei |
