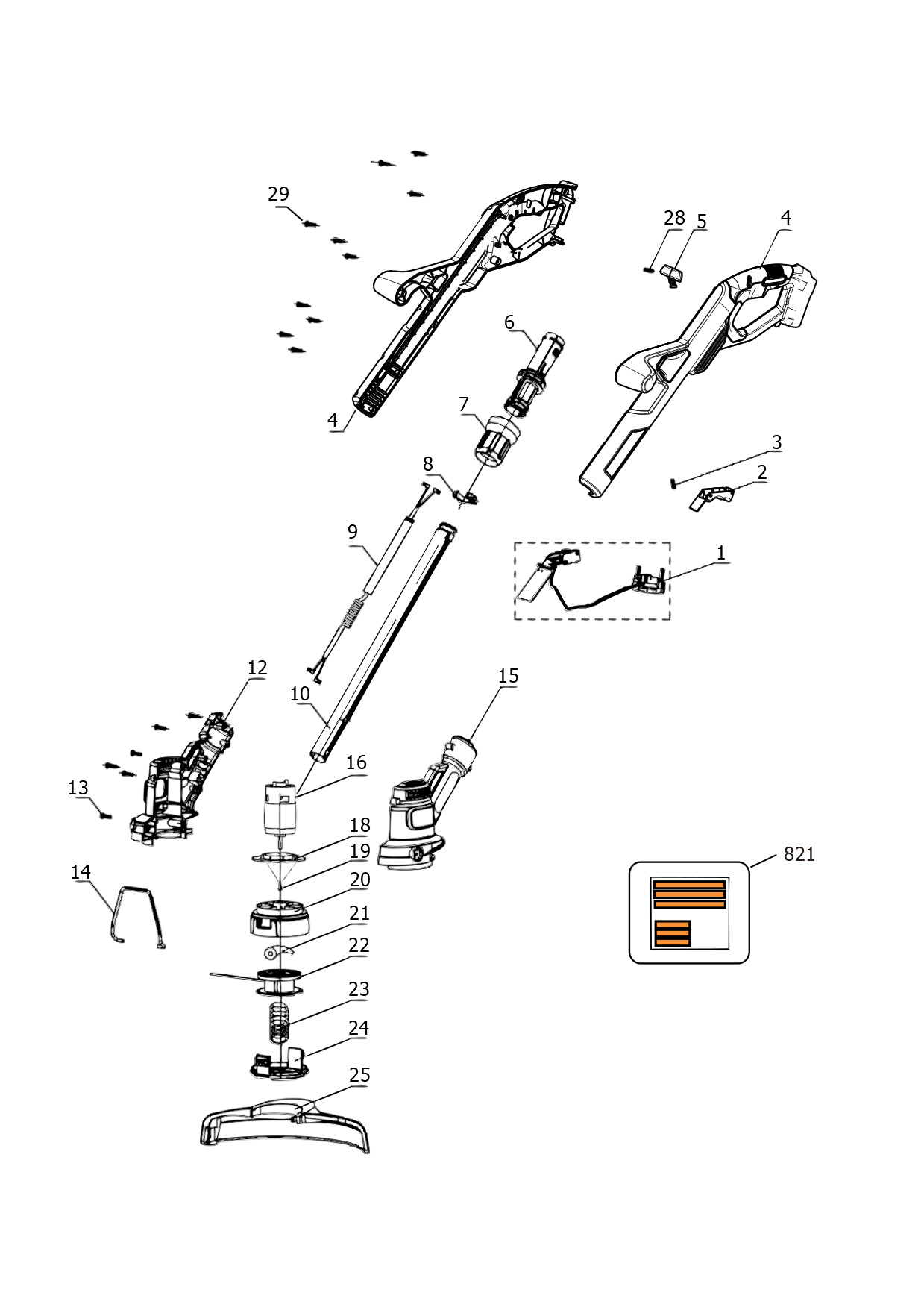

BLACK+DECKER CORDLESS STRING TRIMMER (Type 4)
SKU Produs: ST1823B /Type: 4
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 244053-00 | 1 | SPRING | 4,57 Lei | |
| 4 | N548695 | 1 | HANDLE SA | 41,93 Lei | |
| 5 | 90553935 | 1 | BUTTON LOCK-OFF | 4,57 Lei | |
| 6 | 90641488 | 1 | SLEEVE | 7,37 Lei | |
| 7 | 90641487 | 1 | KNOB | 10,29 Lei | |
| 8 | 90562234-01 | 1 | GUIDE BLOCK | 4,57 Lei | |
| 9 | 90642210 | 1 | TUBE | 25,54 Lei | |
| 10 | 90634043 | 1 | CABLE SA | 34,05 Lei | |
| 12 | 90640132 | 1 | HOUSING RH | 17,02 Lei | |
| 13 | 370748-01 | 7 | SCREW | 4,57 Lei | |
| 14 | 90633178 | 1 | GUIDE | 7,37 Lei | |
| 15 | 90640131 | 1 | HOUSING LH | 19,95 Lei | |
| 19 | N501433 | 2 | SCREW | 4,57 Lei | |
| 20 | N506229 | 1 | FAN | 25,54 Lei | |
| 21 | 90567075 | 1 | LEVER | 5,21 Lei | |
| 22 | 90601198N | 1 | SPOOL AND LINE | 13,85 Lei | |
| 23 | 90566944 | 1 | SPRING | 4,57 Lei | |
| 24 | 385022-03N | 1 | COVER HOUSING | 6,23 Lei | |
| 25 | N563941 | 1 | GUARD SA | 30,87 Lei | |
| 28 | 90559867 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 29 | 373158 | 11 | SCREW | 4,57 Lei | |
| 30 | NA009511 | 1 | RATING LABEL | 4,57 Lei |
