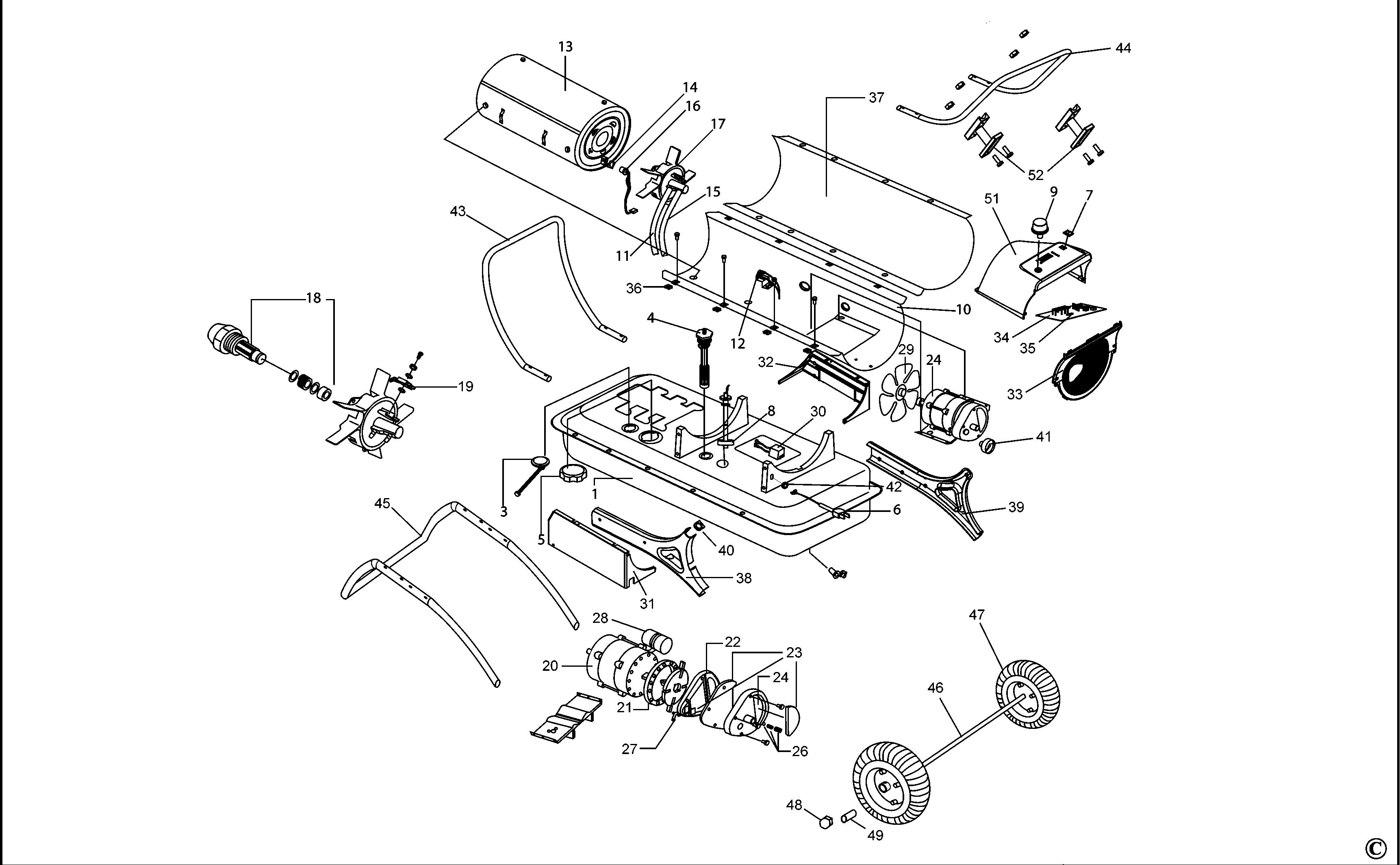

STANLEY HEATER (Type 1)
SKU Produs: ST-215T-KFA-E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004748-91 | 1 | FUEL TANK | 1947,04 Lei | |
| 3 | 1004748-58 | 1 | GAUGE | 70,39 Lei | |
| 4 | 1004748-59 | 1 | FILTER SA | 80,04 Lei | |
| 5 | 1004747-58 | 1 | FUEL CAP | 106,98 Lei | |
| 6 | 1004748-92 | 1 | CORDSET | 120,82 Lei | |
| 7 | 1004747-17 | 1 | SWITCH | 17,02 Lei | |
| 8 | 1004748-61 | 1 | SENSOR | 264,01 Lei | |
| 9 | 1004748-62 | 1 | KNOB | 8,64 Lei | |
| 10 | 1004748-93 | 1 | COVER | 433,24 Lei | |
| 11 | 1004760-60 | 1 | HOSE | 25,54 Lei | |
| 12 | 1004751-12 | 1 | SWITCH SA | 17,02 Lei | |
| 13 | 1004749-08 | 1 | CYLINDER | 530,69 Lei | |
| 14 | 1004747-33 | 1 | BRACKET | 8,64 Lei | |
| 15 | 1004784-20 | 1 | HOSE | 19,95 Lei | |
| 16 | 1004747-35 | 1 | SENSOR | 70,39 Lei | |
| 17 | 1004748-66 | 1 | HEAD SA | 120,82 Lei | |
| 18 | 1004749-09 | 1 | NOZZLE | 252,58 Lei | |
| 19 | 1004748-68 | 1 | SPARK PLUG | 88,55 Lei | |
| 20 | 1004748-97 | 1 | MOTOR SA | 667,9 Lei | |
| 21 | 1004748-70 | 1 | PUMP SA | 195,02 Lei | |
| 22 | 1004747-42 | 1 | COVER | 157,92 Lei | |
| 23 | 1004747-52 | 1 | FILTER SA | 264,01 Lei | |
| 24 | 1004747-43 | 1 | COVER | 80,04 Lei | |
| 26 | 1004748-98 | 1 | ADJUSTER | 17,02 Lei | |
| 27 | 1004748-72 | 1 | ROTOR | 433,24 Lei | |
| 29 | 1004748-99 | 1 | FAN SA | 96,56 Lei | |
| 30 | 1004747-87 | 1 | STARTER SA | 389,28 Lei | |
| 31 | 1004749-00 | 1 | COVER RH | 120,82 Lei | |
| 32 | 1004749-01 | 1 | COVER LH | 120,82 Lei | |
| 33 | 1004748-77 | 1 | GUARD | 70,39 Lei | |
| 34 | 1004748-78 | 1 | PCB | 451,79 Lei | |
| 35 | 1004747-48 | 1 | FUSE | 6,23 Lei | |
| 36 | 1004747-49 | 1 | NUT | 17,02 Lei | |
| 37 | 1004749-02 | 1 | COVER-TOP | 530,69 Lei | |
| 38 | 1004748-80 | 1 | COVER | 169,36 Lei | |
| 39 | 1004748-81 | 1 | COVER | 169,36 Lei | |
| 41 | 1004748-47 | 1 | GAUGE | 120,82 Lei | |
| 42 | 1004748-82 | 1 | BUSHING | 6,23 Lei | |
| 43 | 1004749-03 | 1 | HANDLE | 240,38 Lei | |
| 44 | 1004749-04 | 1 | HANDLE | 240,38 Lei | |
| 45 | 1004749-05 | 1 | FRAME | 252,58 Lei | |
| 46 | 1004749-06 | 1 | AXLE | 70,39 Lei | |
| 47 | 1004749-07 | 1 | WHEEL | 145,09 Lei | |
| 48 | 1004748-87 | 1 | NUT | 8,64 Lei | |
| 49 | 1004748-88 | 1 | BUSHING | 7,37 Lei | |
| 51 | 1004748-89 | 1 | COVER-TOP | 145,09 Lei | |
| 52 | 1004748-90 | 1 | BRACKET | 37,73 Lei |
