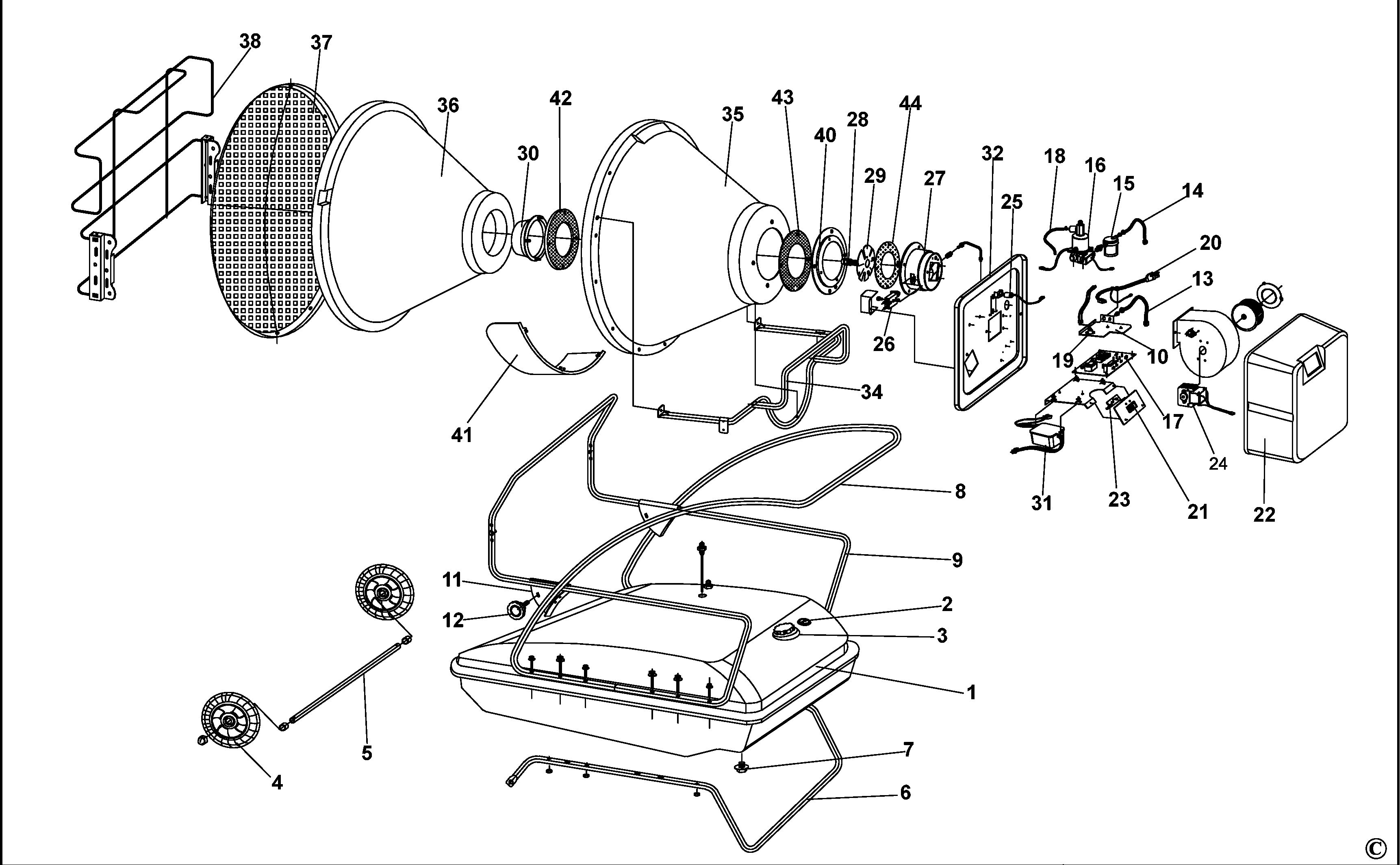

STANLEY HEATER (Type 1)
SKU Produs: ST-125-OFR-E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004748-06 | 1 | FUEL TANK | 1947,04 Lei | |
| 2 | 1004748-07 | 1 | GAUGE | 52,22 Lei | |
| 3 | 1004748-08 | 1 | CAP SA | 30,87 Lei | |
| 4 | 1004748-09 | 1 | WHEEL | 157,92 Lei | |
| 5 | 1004748-10 | 1 | AXLE | 80,04 Lei | |
| 6 | 1004748-11 | 1 | FRAME | 433,24 Lei | |
| 7 | 1004748-12 | 1 | BOLT | 96,56 Lei | |
| 8 | 1004748-13 | 1 | FRAME | 570,96 Lei | |
| 9 | 1004748-14 | 1 | FRAME | 375,31 Lei | |
| 10 | 1004748-15 | 1 | SUPPORT | 37,73 Lei | |
| 11 | 1004748-16 | 1 | SUPPORT | 213,19 Lei | |
| 12 | 1004748-17 | 1 | KNOB | 34,05 Lei | |
| 13 | 1004747-60 | 1 | TUBE | 34,8 Lei | |
| 14 | 1004748-18 | 1 | TUBE | 289,04 Lei | |
| 15 | 1004748-19 | 1 | FILTER SA | 195,02 Lei | |
| 16 | 1004751-11 | 1 | PUMP SA | 750,36 Lei | |
| 17 | 1004748-20 | 1 | PCB | 530,69 Lei | |
| 18 | 1004748-21 | 1 | HOSE | 225,26 Lei | |
| 19 | 1004747-62 | 1 | SENSOR | 106,98 Lei | |
| 20 | 1004748-22 | 1 | CORDSET | 195,02 Lei | |
| 21 | 1004748-23 | 1 | SWITCH | 96,56 Lei | |
| 22 | 1004748-24 | 1 | COVER | 57,81 Lei | |
| 23 | 1004748-25 | 1 | PANEL | 8,64 Lei | |
| 24 | 1004748-26 | 1 | MOTOR | 318,26 Lei | |
| 25 | 1004747-83 | 1 | SENSOR | 70,39 Lei | |
| 26 | 1004747-78 | 1 | SPARK PLUG | 52,22 Lei | |
| 27 | 1004748-27 | 1 | BODY | 88,55 Lei | |
| 28 | 1004748-28 | 1 | NOZZLE | 289,04 Lei | |
| 29 | 1004748-29 | 1 | BLADE | 80,04 Lei | |
| 30 | 1004748-30 | 1 | CAP SA | 52,22 Lei | |
| 31 | 1004747-87 | 1 | STARTER SA | 389,28 Lei | |
| 32 | 1004748-31 | 1 | SUPPORT | 157,92 Lei | |
| 34 | 1004748-32 | 1 | SUPPORT | 570,96 Lei | |
| 35 | 1004748-33 | 1 | CONE | 1947,04 Lei | |
| 36 | 1004748-34 | 1 | INSULATOR | 1565,13 Lei | |
| 37 | 1004748-35 | 1 | PLATE | 980,83 Lei | |
| 38 | 1004748-36 | 1 | GUARD SA | 613,14 Lei | |
| 40 | 1004748-37 | 1 | BRACKET | 130,35 Lei | |
| 41 | 1004748-38 | 1 | HEATSHIELD | 169,36 Lei | |
| 42 | 1004748-39 | 1 | GASKET | 52,22 Lei | |
| 43 | 1004748-40 | 1 | GASKET | 41,93 Lei | |
| 44 | 1004748-41 | 1 | GASKET | 37,73 Lei |
