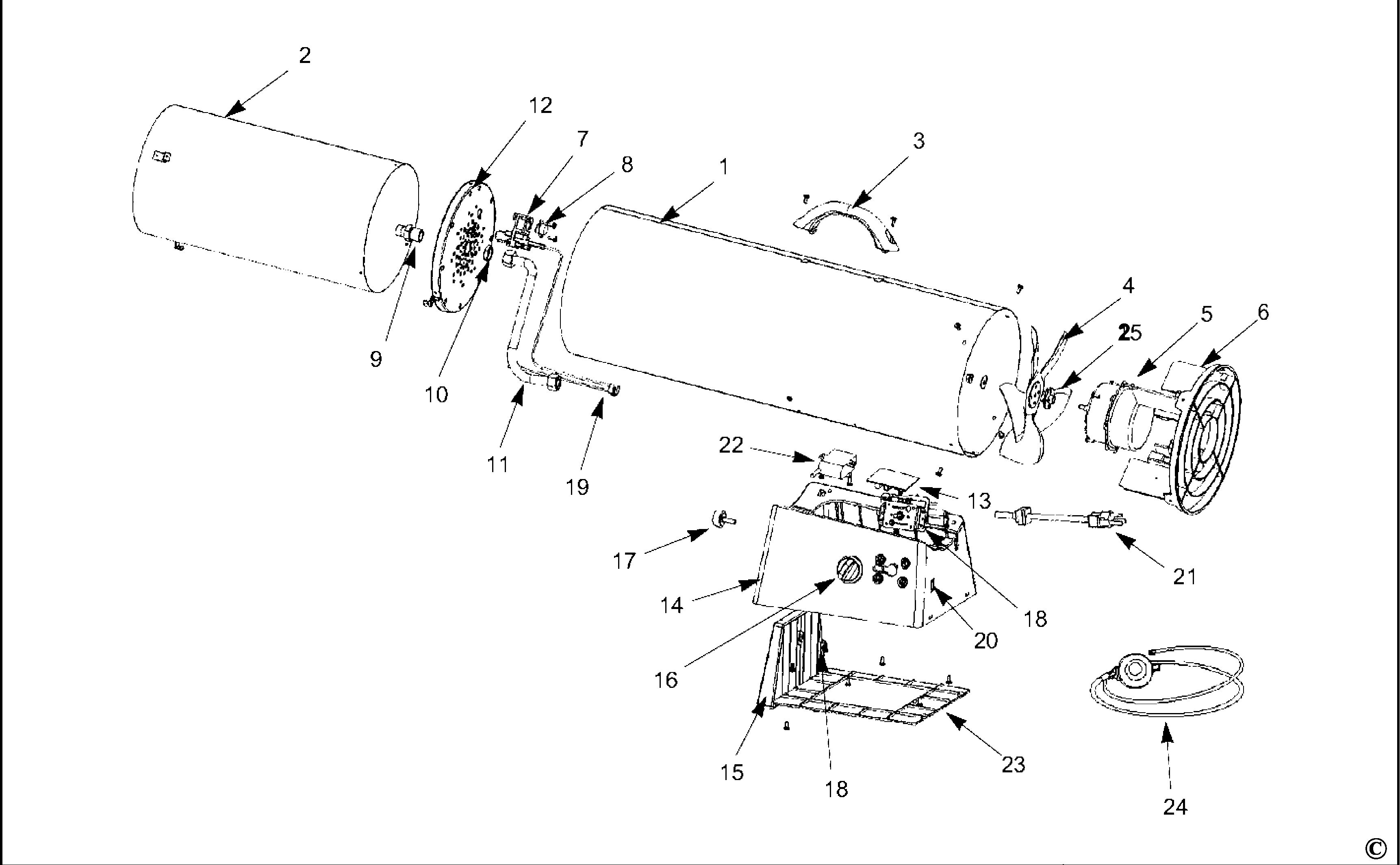

STANLEY HEATER (Type 1)
SKU Produs: ST-100V-GFA-E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004746-90 | 1 | HOUSING | 850,09 Lei | |
| 2 | 1004746-91 | 1 | HOUSING | 349,13 Lei | |
| 3 | 1004746-74 | 1 | HANDLE | 25,54 Lei | |
| 4 | 1004746-92 | 1 | BLADE | 80,04 Lei | |
| 5 | 1004746-93 | 1 | MOTOR SA | 433,24 Lei | |
| 6 | 1004746-94 | 1 | GUARD | 120,82 Lei | |
| 7 | 1004746-95 | 1 | BRACKET | 34,05 Lei | |
| 8 | 1004746-96 | 1 | SWITCH TERMINAL | 13,85 Lei | |
| 9 | 1004747-12 | 1 | NOZZLE | 80,04 Lei | |
| 10 | 1004747-13 | 1 | NUT | 5,21 Lei | |
| 11 | 1004747-14 | 1 | TUBE | 213,19 Lei | |
| 12 | 1004747-15 | 1 | CAP SA | 145,09 Lei | |
| 13 | 1004746-73 | 1 | PCB | 106,98 Lei | |
| 14 | 1004747-01 | 1 | BASE SA | 412,91 Lei | |
| 15 | 1004747-02 | 1 | CONTROLLER | 120,82 Lei | |
| 16 | 1004746-75 | 1 | KNOB | 13,85 Lei | |
| 17 | 1004747-03 | 1 | BOLT | 13,85 Lei | |
| 18 | 1004747-16 | 1 | VALVE | 433,24 Lei | |
| 19 | 1004746-76 | 1 | CABLE | 25,54 Lei | |
| 20 | 1004747-17 | 1 | SWITCH | 17,02 Lei | |
| 21 | 1004746-89 | 1 | CORDSET | 80,04 Lei | |
| 22 | 1004746-78 | 1 | SOLENOID ASSEMBLY | 195,02 Lei | |
| 23 | 1004747-06 | 1 | COVER SA | 120,82 Lei | |
| 24 | 1004747-22 | 1 | REGULATOR | 300,47 Lei | |
| 25 | 1004750-62 | 1 | PAD SA | 5,21 Lei |
