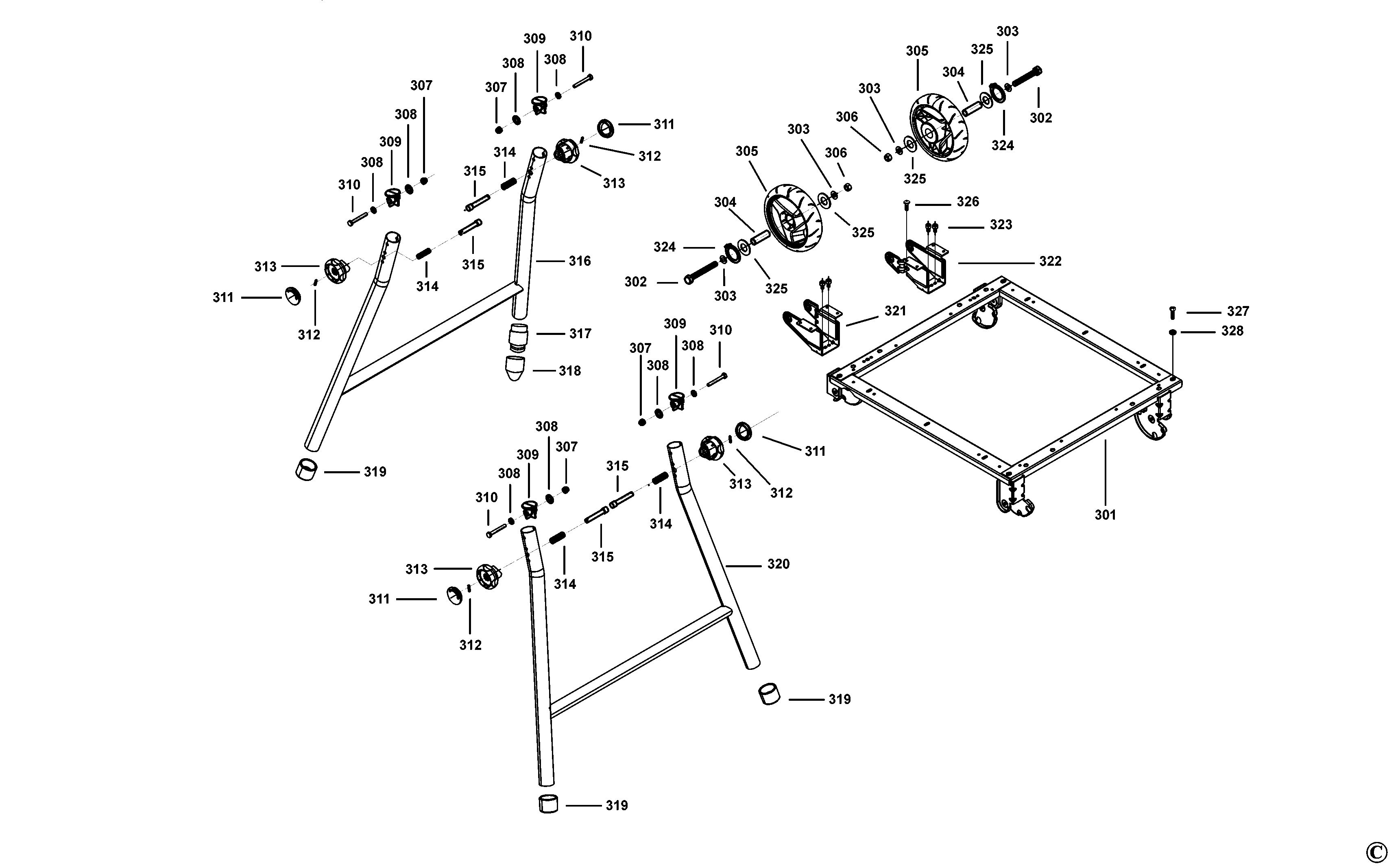

STANLEY TABLE SAW (Type 1)
SKU Produs: SST1800 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004740-59 | 2 | SCREW | 5,21 Lei | |
| 2 | 5140147-55 | 4 | SCREW | 3,78 Lei | |
| 3 | 5140147-58 | 8 | SCREW | 3,78 Lei | |
| 4 | 1004740-61 | 1 | SWITCH COVER | 7,37 Lei | |
| 5 | 1004740-62 | 1 | SWITCH | 12,71 Lei | |
| 6 | 1004740-63 | 1 | INDUCTOR | 5,21 Lei | |
| 7 | 1004740-64 | 1 | CAPACITOR | 7,37 Lei | |
| 8 | 1004740-65 | 1 | OVERLOAD PROTECTOR | 13,85 Lei | |
| 9 | 1004740-66 | 1 | SWITCH | 120,82 Lei | |
| 10 | 1004740-67 | 2 | SCREW | 4,57 Lei | |
| 12 | 5140147-63 | 2 | LOCK NUT | 3,78 Lei | |
| 13 | 5140147-64 | 1 | WHEEL | 18,06 Lei | |
| 14 | 5140146-75 | 18 | WASHER | 3,78 Lei | |
| 15 | 5140147-65 | 1 | HANDLE | 4,31 Lei | |
| 16 | 5140147-66 | 2 | WASHER | 3,78 Lei | |
| 17 | 5140147-67 | 1 | SCREW | 6,09 Lei | |
| 18 | 5140147-69 | 2 | ANGLE | 4,57 Lei | |
| 19 | 1004740-69 | 2 | SCREW | 4,57 Lei | |
| 20 | 5140147-72 | 1 | RACK | 3,78 Lei | |
| 21 | 5140147-73 | 3 | SCREW | 3,78 Lei | |
| 22 | 5140147-36 | 19 | SCREW | 3,78 Lei | |
| 23 | 5140147-74 | 1 | POINTER | 3,78 Lei | |
| 24 | 5140146-14 | 6 | WASHER SPRING | 3,78 Lei | |
| 25 | 5140147-75 | 7 | NUT M4 | 3,78 Lei | |
| 26 | 5140147-71 | 4 | SCREW | 3,78 Lei | |
| 27 | 5170038-07 | 1 | BODY | 218,19 Lei | |
| 28 | 5140147-76 | 4 | WASHER | 3,78 Lei | |
| 29 | 5140160-24 | 1 | BRAND LABEL | 4,57 Lei | |
| 30 | 5140149-04 | 1 | CLAMP | 4,57 Lei | |
| 31 | 5170014-35 | 4 | SCREW | 3,78 Lei | |
| 32 | 5140149-05 | 1 | SCREW | 3,78 Lei | |
| 33 | 5140147-69 | 1 | ANGLE | 4,57 Lei | |
| 34 | 5140149-09 | 3 | NUT M5 | 3,78 Lei | |
| 35 | 1004740-72 | 4 | SCREW | 4,57 Lei | |
| 36 | 1004740-73 | 1 | SCREW | 4,57 Lei | |
| 37 | 5140147-81 | 1 | BLOCK | 3,78 Lei | |
| 38 | 5140147-82 | 2 | WASHER | 3,78 Lei | |
| 39 | 5140147-83 | 1 | NUT M6 | 4,31 Lei | |
| 40 | 5140147-84 | 1 | SPRING TORSION | 3,78 Lei | |
| 41 | 5170037-75 | 1 | GUARD | 10,5 Lei | |
| 42 | 5140151-45 | 1 | AXIS | 6,09 Lei | |
| 43 | 1004766-89 | 1 | SCREW | 4,57 Lei | |
| 44 | 5140151-46 | 1 | HANDLE | 5,15 Lei | |
| 45 | 5140147-89 | 1 | RING | 3,78 Lei | |
| 46 | 5140147-90 | 1 | WASHER | 3,78 Lei | |
| 47 | 5140147-91 | 1 | SCREW | 3,78 Lei | |
| 48 | 5140147-92 | 1 | SLEEVE | 3,78 Lei | |
| 49 | 5140147-93 | 1 | BLOCK | 12,5 Lei | |
| 50 | 5140147-94 | 1 | SLEEVE | 3,78 Lei | |
| 51 | 5140147-95 | 1 | BAR | 21,11 Lei | |
| 52 | 5140147-96 | 10 | SCREW | 3,78 Lei | |
| 53 | 5140147-97 | 2 | Gear | 4,31 Lei | |
| 54 | 5140147-98 | 2 | SCREW | 3,78 Lei | |
| 55 | 5140147-99 | 1 | SEAT | 6,09 Lei | |
| 56 | 5170014-36 | 2 | SCREW | 3,78 Lei | |
| 57 | 5140148-00 | 1 | SUPPORT | 11,45 Lei | |
| 58 | 5170014-32 | 5 | SCREW | 3,78 Lei | |
| 59 | 5140148-01 | 1 | BAR | 7,14 Lei | |
| 60 | 5140148-02 | 1 | BLOCK | 5,15 Lei | |
| 61 | 5140148-03 | 8 | WASHER | 3,78 Lei | |
| 62 | 5140148-04 | 4 | SCREW | 3,78 Lei | |
| 63 | 5140148-13 | 4 | WASHER SPRING | 3,78 Lei | |
| 64 | 5170014-33 | 2 | SCREW | 4,57 Lei | |
| 65 | 5140148-05 | 1 | BAR | 99,86 Lei | |
| 66 | 1004767-06 | 1 | GUARD | 34,05 Lei | |
| 66 | 5140148-07 | 1 | GUARD | 58,17 Lei | |
| 67 | 5140148-57 | 11 | SCREW | 4,57 Lei | |
| 68 | 1004740-76 | 1 | GUARD | 17,02 Lei | |
| 69 | 5140147-79 | 8 | SCREW | 4,31 Lei | |
| 70 | 5140148-08 | 2 | BOARD | 18,06 Lei | |
| 71 | 5140148-09 | 4 | WASHER | 3,78 Lei | |
| 72 | 5140148-10 | 1 | SUPPORT | 6,09 Lei | |
| 73 | 5140151-48 | 1 | BAR | 7,14 Lei | |
| 74 | 5140148-12 | 1 | BLOCK | 14,07 Lei | |
| 75 | 1004740-54 | 1 | SCREW | 4,57 Lei | |
| 76 | 5140146-24 | 2 | LOCK NUT | 3,78 Lei | |
| 77 | 5140148-15 | 3 | WASHER | 3,78 Lei | |
| 78 | 5140148-16 | 1 | BLOCK | 4,31 Lei | |
| 79 | 5170037-76 | 1 | WASHER | 3,78 Lei | |
| 80 | 5140147-33 | 3 | SCREW | 3,78 Lei | |
| 81 | 5140148-17 | 1 | COVER | 3,78 Lei | |
| 82 | 5140151-49 | 1 | NUT | 4,57 Lei | |
| 83 | 5140148-19 | 1 | OUTER FLANGE | 12,71 Lei | |
| 84 | 5170038-08 | 1 | BLADE | 119,91 Lei | |
| 85 | 5140149-03 | 1 | CLAMP | 3,78 Lei | |
| 86 | 5140148-75 | 1 | PUSH BLOCK | 11,45 Lei | |
| 87 | 1004773-32 | 1 | RING | 4,57 Lei | |
| 88 | 5140151-51 | 1 | Inner Flange | 12,71 Lei | |
| 89 | 5140151-47 | 1 | SCREW | 3,78 Lei | |
| 90 | 5140148-21 | 1 | BEARING HOLDER | 8,51 Lei | |
| 91 | 5140148-22 | 1 | BEARING | 21,85 Lei | |
| 92 | 5140149-06 | 1 | PIECE | 3,78 Lei | |
| 93 | 5140149-07 | 1 | BOARD | 5,15 Lei | |
| 94 | 5140148-23 | 1 | SPRING | 3,78 Lei | |
| 95 | 5140148-24 | 1 | OUTPUT SHAFT | 16,49 Lei | |
| 96 | 5140148-25 | 1 | KEY | 3,78 Lei | |
| 97 | 5140148-26 | 1 | Gear | 34,05 Lei | |
| 98 | 5140148-27 | 1 | CIRCLIP | 3,78 Lei | |
| 99 | 5140148-28 | 1 | BEARING,NEEDLE | 6,23 Lei | |
| 100 | 5140148-29 | 1 | COVER | 106,98 Lei | |
| 101 | 5140146-31 | 1 | LOCK NUT | 3,78 Lei | |
| 102 | 5140148-30 | 1 | WASHER | 3,78 Lei | |
| 103 | 5140148-31 | 1 | BEARING 6202 | 21,85 Lei | |
| 104 | 5140148-32 | 1 | BAR | 14,07 Lei | |
| 106 | 5140148-34 | 2 | BEARING | 15,12 Lei | |
| 107 | 5140148-35 | 2 | SCREW | 3,78 Lei | |
| 108 | 5140150-97 | 1 | FIELD-220V | 238,88 Lei | |
| 109 | 5140148-37 | 1 | SHROUD | 3,78 Lei | |
| 110 | 5140148-38 | 1 | HOUSING MOTOR | 52,22 Lei | |
| 111 | 5140148-39 | 2 | BRUSH HOLDER 230V | 21,85 Lei | |
| 112 | 5140147-54 | 1 | BRUSH 230V | 17,02 Lei | |
| 113 | 5140148-41 | 2 | BRUSH CAP | 4,57 Lei | |
| 114 | 5140149-08 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 115 | 5170037-77 | 1 | CABLE & PLUG | 47,78 Lei | |
| 116 | 5140149-08 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 117 | 5140148-42 | 3 | SCREW | 3,78 Lei | |
| 118 | 5140145-99 | 3 | WASHER SPRING | 3,78 Lei | |
| 119 | 5140148-43 | 3 | WASHER | 3,78 Lei | |
| 120 | 1004767-28 | 3 | SCREW | 4,57 Lei | |
| 121 | 1004740-77 | 1 | LABEL - SCALE | 4,57 Lei | |
| 122 | 1004740-78 | 1 | BOARD | 17,02 Lei | |
| 123 | 5140148-45 | 1 | WASHER | 3,78 Lei | |
| 124 | 1004740-79 | 1 | HANDLE | 5,21 Lei | |
| 126 | 1004740-80 | 1 | POINTER | 4,57 Lei | |
| 127 | 1004740-81 | 1 | PLATE | 17,02 Lei | |
| 128 | 1004740-82 | 1 | WASHER | 4,57 Lei | |
| 129 | 1004740-83 | 1 | SCREW | 4,57 Lei | |
| 134 | 5170037-79 | 1 | RIVING KNIFE | 99,86 Lei | |
| 135 | 5140148-76 | 1 | BOARD | 11,45 Lei | |
| 136 | 5140148-77 | 1 | BOARD | 5,15 Lei | |
| 137 | 5140148-78 | 1 | SCREW | 5,15 Lei | |
| 138 | 5140146-38 | 1 | PIN | 3,78 Lei | |
| 139 | 5140148-79 | 1 | KNOB SA | 3,78 Lei | |
| 140 | 1004740-87 | 1 | END EXTRUSION | 21,85 Lei | |
| 141 | 1004740-88 | 2 | PIN | 4,57 Lei | |
| 142 | 1004740-89 | 1 | CONNECTING ROD | 4,57 Lei | |
| 143 | 1004740-90 | 1 | PIN | 6,23 Lei | |
| 144 | 1004740-91 | 2 | PIN | 4,57 Lei | |
| 145 | 1004740-92 | 1 | LOCK | 4,57 Lei | |
| 146 | 1004740-93 | 1 | PIN | 4,57 Lei | |
| 147 | 1004740-94 | 1 | PIN | 4,57 Lei | |
| 148 | 1004740-95 | 1 | FASTENER | 4,57 Lei | |
| 149 | 1004740-96 | 1 | FENCE | 37,73 Lei | |
| 150 | 1004740-97 | 2 | POINTER | 4,57 Lei | |
| 151 | 1004740-98 | 2 | SCREW | 4,57 Lei | |
| 152 | 1004741-00 | 1 | BLOCK | 4,57 Lei | |
| 153 | 1004741-01 | 3 | NUT WING | 4,57 Lei | |
| 154 | 1004741-02 | 2 | WASHER | 4,57 Lei | |
| 155 | 1004741-03 | 3 | SCREW | 4,57 Lei | |
| 156 | 1004741-04 | 1 | RAIL | 30,87 Lei | |
| 157 | 5170037-80 | 1 | ROD | 10,5 Lei | |
| 158 | 5170037-81 | 1 | FENCE | 66,15 Lei | |
| 159 | 1004741-07 | 1 | PIN | 4,57 Lei | |
| 160 | 1004741-08 | 2 | END CAP | 5,21 Lei | |
| 161 | 1004741-09 | 1 | SPRING | 4,57 Lei | |
| 162 | 1004741-10 | 1 | FASTENER | 6,23 Lei | |
| 163 | 1004741-11 | 1 | SPRING | 4,57 Lei | |
| 164 | 1004741-12 | 1 | CONTROL SCREW | 4,57 Lei | |
| 165 | 1004741-13 | 1 | BLOCK | 4,57 Lei | |
| 166 | 1004741-14 | 1 | INSERT | 34,05 Lei | |
| 167 | 1004767-90 | 1 | SCREW | 4,57 Lei | |
| 168 | 1004767-91 | 1 | SPRING | 4,57 Lei | |
| 169 | 1004741-15 | 1 | COVER | 4,57 Lei | |
| 172 | 5170037-82 | 2 | 1BLOCK | 3,78 Lei | |
| 173 | 1004741-18 | 16 | NUT | 4,57 Lei | |
| 175 | 5170037-83 | 1 | ROD | 58,17 Lei | |
| 177 | 5170037-84 | 2 | LINK | 12,5 Lei | |
| 178 | 5170037-85 | 2 | LINK | 3,78 Lei | |
| 179 | 5170037-86 | 1 | POINTER | 3,78 Lei | |
| 181 | 1004741-26 | 3 | COVER | 7,37 Lei | |
| 182 | 5170037-87 | 4 | SCREW | 3,78 Lei | |
| 183 | 5170037-88 | 1 | PANEL | 620,13 Lei | |
| 185 | 5170037-89 | 1 | ROD | 73,19 Lei | |
| 186 | 5170037-90 | 1 | SCALE | 7,14 Lei | |
| 187 | 1004741-32 | 2 | COVER | 4,57 Lei | |
| 188 | 5140148-84 | 1 | BOARD | 18,06 Lei | |
| 189 | 1004741-33 | 1 | SCREW | 4,57 Lei | |
| 190 | 1004741-34 | 2 | PAD | 5,21 Lei | |
| 191 | 5170037-91 | 1 | COVER | 88,41 Lei | |
| 192 | 5170037-92 | 1 | ROD | 14,07 Lei | |
| 193 | 1004741-37 | 2 | FASTENER | 4,57 Lei | |
| 194 | 1004741-38 | 2 | RING | 4,57 Lei | |
| 195 | 1004741-39 | 2 | SPRING | 4,57 Lei | |
| 196 | 1004741-40 | 1 | NUT | 4,57 Lei | |
| 197 | 1004741-41 | 1 | NUT | 4,57 Lei | |
| 198 | 1004741-42 | 1 | NUT | 4,57 Lei | |
| 199 | 1004741-43 | 1 | BAR | 4,57 Lei | |
| 200 | 1004767-73 | 1 | ADJUSTER | 4,57 Lei | |
| 201 | 1004741-45 | 1 | RIVET | 4,57 Lei | |
| 202 | 1004741-46 | 2 | BLOCK | 4,57 Lei | |
| 203 | 1004741-47 | 2 | PIN | 4,57 Lei | |
| 204 | 1004741-48 | 1 | FASTENER | 5,21 Lei | |
| 205 | 1004741-49 | 1 | FASTENER | 4,57 Lei | |
| 206 | 1004741-50 | 2 | CIRCLIP | 4,57 Lei | |
| 207 | 1004741-51 | 1 | BAR | 7,37 Lei | |
| 208 | 1004741-52 | 4 | WASHER | 4,57 Lei | |
| 209 | 1004741-53 | 1 | FASTENER | 12,71 Lei | |
| 210 | 5170014-34 | 1 | BOLT | 4,57 Lei | |
| 211 | 1004741-55 | 1 | PLATE | 19,95 Lei | |
| 212 | 1004741-56 | 1 | PAD | 4,57 Lei | |
| 213 | 1004741-57 | 1 | SPRING TORSION | 4,57 Lei | |
| 214 | 1004741-58 | 1 | ROLLER | 4,57 Lei | |
| 216 | 5140147-56 | 1 | BOARD | 3,78 Lei | |
| 217 | 5140153-02 | 2 | WRENCH SPECIAL | 7,14 Lei | |
| 218 | 5140153-03 | 1 | WRENCH SPECIAL | 3,78 Lei | |
| 219 | 5140153-04 | 1 | WRENCH SPECIAL | 3,78 Lei | |
| 226 | 1004742-05 | 1 | BLOCK SA | 57,81 Lei | |
| 227 | 5170037-93 | 1 | FANCASE KIT | 176,19 Lei | |
| 228 | 5170037-94 | 1 | GUARD SA | 99,86 Lei | |
| 229 | 1004742-03 | 1 | RIVING KNIFE | 145,09 Lei | |
| 230 | 1004742-08 | 1 | ARMATURE SA | 200,99 Lei | |
| 231 | 1004742-34 | 1 | SHAFT SA | 52,22 Lei | |
| 232 | 5170037-96 | 1 | SWITCH KIT | 130,52 Lei | |
| 233 | 1004742-07 | 1 | HANDLE SA | 25,54 Lei | |
| 236 | 1004741-59 | 1 | SCREW | 4,57 Lei | |
| 237 | 1004741-60 | 2 | COVER | 4,57 Lei | |
| 238 | 1004741-61 | 1 | FENCE | 19,95 Lei | |
| 239 | 1004741-62 | 1 | NUT | 5,21 Lei | |
| 240 | 1004741-63 | 2 | SCREW | 4,57 Lei | |
| 241 | 1004741-64 | 1 | FLAP | 21,85 Lei | |
| 242 | 1004741-65 | 1 | SPRING | 4,57 Lei | |
| 243 | 1004741-66 | 1 | PIN | 4,57 Lei | |
| 244 | 1004741-67 | 1 | FLAP | 10,29 Lei | |
| 245 | 1004741-68 | 1 | WASHER | 4,57 Lei | |
| 246 | 1004741-69 | 1 | SPRING | 4,57 Lei | |
| 249 | 5170037-97 | 7 | SCREW | 3,78 Lei | |
| 250 | 5170037-98 | 1 | BRACKET LH | 18,06 Lei | |
| 251 | 5170037-99 | 1 | BRACKET RH | 18,06 Lei | |
| 252 | 5170038-01 | 1 | SCREW | 3,78 Lei | |
| 253 | 5170038-02 | 1 | COVER LH | 3,78 Lei | |
| 254 | 5170038-03 | 1 | COVER RH | 3,78 Lei | |
| 255 | 5170038-04 | 1 | SCREW | 3,78 Lei | |
| 256 | 5170038-05 | 2 | SPRING | 3,78 Lei | |
| 257 | 5170038-06 | 1 | SPRING | 3,78 Lei | |
| 258 | 5140147-80 | 4 | WASHER | 3,78 Lei | |
| 259 | 1004741-72 | 1 | ADAPTOR | 7,37 Lei | |
| 260 | 1004741-73 | 1 | HOSE | 25,54 Lei | |
| 301 | 1004740-37 | 1 | PLATFORM | 195,02 Lei | |
| 302 | 1004740-38 | 2 | BOLT | 4,57 Lei | |
| 303 | 5140147-80 | 4 | WASHER | 3,78 Lei | |
| 304 | 1004740-39 | 2 | SHAFT | 5,21 Lei | |
| 305 | 5140149-14 | 2 | WHEEL | 79,8 Lei | |
| 306 | 5140147-63 | 2 | LOCK NUT | 3,78 Lei | |
| 307 | 5140146-31 | 4 | LOCK NUT | 3,78 Lei | |
| 308 | 5140147-80 | 8 | WASHER | 3,78 Lei | |
| 309 | 1004740-40 | 4 | PLATE LOCK | 5,21 Lei | |
| 310 | 1004740-41 | 4 | BOLT | 4,57 Lei | |
| 311 | 1004740-42 | 4 | CAP | 4,57 Lei | |
| 312 | 1004740-43 | 4 | PIN | 4,57 Lei | |
| 313 | 1004740-44 | 1 | KNOB | 4,57 Lei | |
| 314 | 1004740-45 | 4 | SPRING | 4,57 Lei | |
| 315 | 1004740-46 | 4 | PIN | 4,57 Lei | |
| 316 | 1004740-47 | 1 | LEG | 120,82 Lei | |
| 317 | 1004740-48 | 1 | INSERT | 4,57 Lei | |
| 318 | 1004740-49 | 1 | FOOT | 10,29 Lei | |
| 319 | 1004740-50 | 1 | FOOT | 4,57 Lei | |
| 320 | 1004740-51 | 1 | LEG | 120,82 Lei | |
| 321 | 1004740-52 | 1 | BRACKET | 15,12 Lei | |
| 322 | 1004740-53 | 1 | BRACKET | 13,85 Lei | |
| 323 | 1004740-54 | 4 | SCREW | 4,57 Lei | |
| 324 | 1004740-55 | 2 | CIRCLIP | 4,57 Lei | |
| 325 | 1004740-56 | 1 | WASHER | 4,57 Lei | |
| 326 | 1004740-57 | 7 | SCREW | 4,57 Lei | |
| 327 | 1004740-58 | 1 | BOLT | 4,57 Lei | |
| 328 | 5140147-66 | 4 | WASHER | 3,78 Lei |
