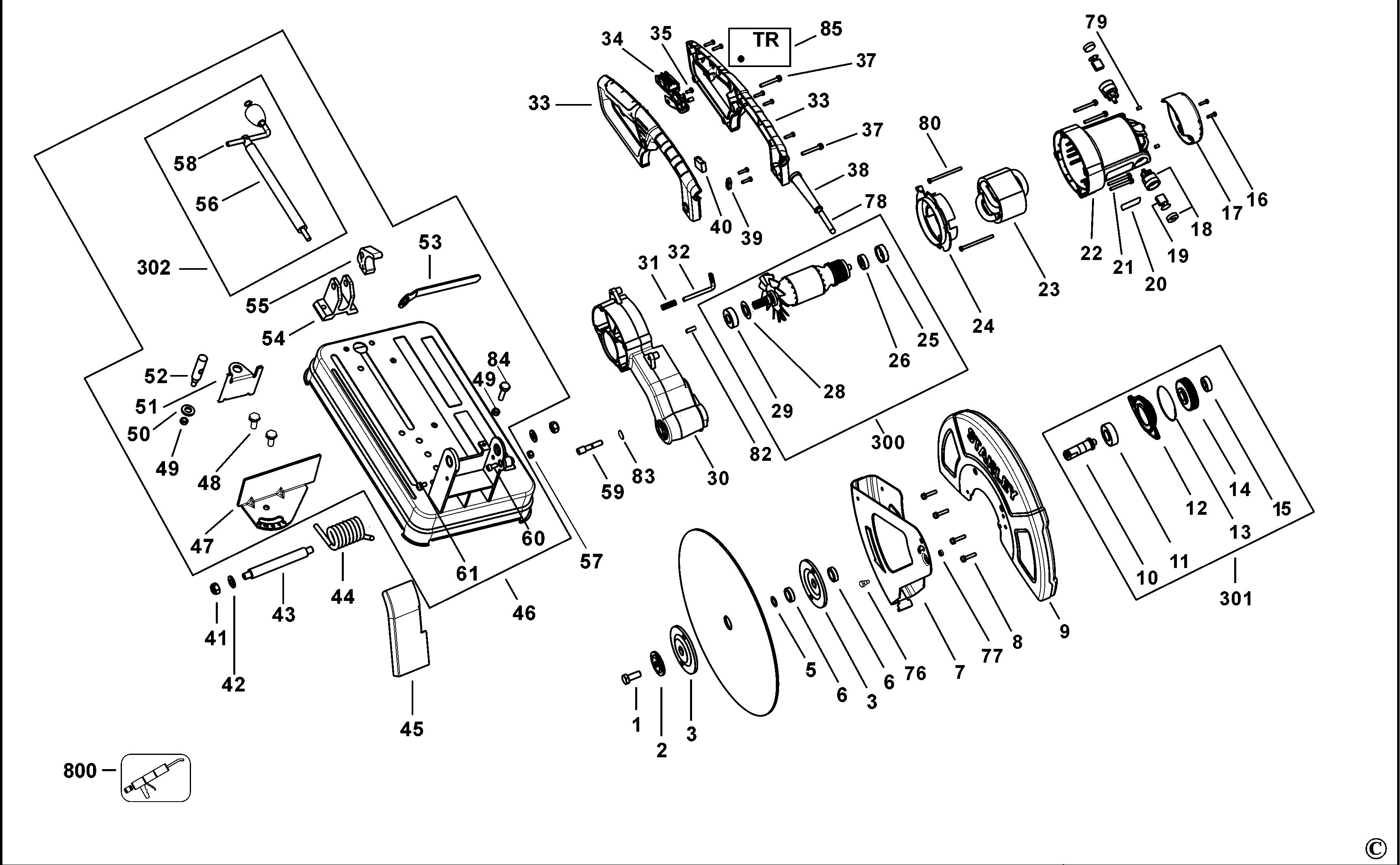

STANLEY CHOP SAW (Type 1)
SKU Produs: SSC22 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 49202013 | 1 | SCREW | 4,57 Lei | |
| 2 | N483746 | 1 | WASHER CLAMP | 5,21 Lei | |
| 5 | 4141003001 | 1 | O RING | 4,57 Lei | |
| 6 | N472364 | 2 | SEAL | 5,21 Lei | |
| 7 | N488889 | 1 | GUARD LOWER | 80,04 Lei | |
| 8 | N485436 | 1 | SCREW | 4,57 Lei | |
| 9 | N488888 | 1 | GUARD UPPER | 145,09 Lei | |
| 10 | N474958 | 1 | SPINDLE | 25,54 Lei | |
| 12 | N483595 | 1 | GEARCASE COVER | 19,95 Lei | |
| 13 | 4140703001 | 1 | O RING | 4,57 Lei | |
| 14 | N474946 | 1 | Gear | 80,04 Lei | |
| 15 | 49106019 | 1 | BEARING | 12,71 Lei | |
| 16 | 49206618 | 9 | SCREW | 4,57 Lei | |
| 17 | N470107 | 1 | COVER-TOP | 12,71 Lei | |
| 18 | N476505 | 1 | BRUSH HOLDER | 19,95 Lei | |
| 19 | N485672 | 1 | BRUSH | 41,93 Lei | |
| 21 | N484229 | 4 | SCREW | 4,57 Lei | |
| 22 | N467679 | 1 | FIELD CASE | 57,81 Lei | |
| 23 | 60313008 | 1 | FIELD SA | 361,33 Lei | |
| 24 | N473612 | 1 | BAFFLE FAN | 10,29 Lei | |
| 25 | N473164 | 1 | RUBBER BOOT | 4,57 Lei | |
| 26 | 49111024 | 1 | BEARING | 13,85 Lei | |
| 28 | 4240304003 | 1 | WASHER | 4,57 Lei | |
| 29 | 49111036 | 1 | BEARING | 13,85 Lei | |
| 30 | N491254 | 1 | ACTUATION ARM | 240,38 Lei | |
| 31 | N488257 | 1 | SPRING | 4,57 Lei | |
| 32 | N476548 | 1 | LOCK PIN | 6,23 Lei | |
| 35 | 49206015 | 1 | SCREW | 4,57 Lei | |
| 37 | 49203615 | 2 | SCREW | 4,57 Lei | |
| 38 | N476106 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 39 | 4240201013 | 1 | CORD CLAMP | 4,57 Lei | |
| 40 | 494014 | 1 | CAPACITOR | 4,57 Lei | |
| 41 | N475789 | 2 | NUT | 4,57 Lei | |
| 42 | N475790 | 2 | PLATE | 4,57 Lei | |
| 43 | N475319 | 1 | PIVOT SHAFT | 21,85 Lei | |
| 44 | N473579 | 1 | SPRING | 34,8 Lei | |
| 44 | NA173203 | 1 | SPRING | 34,05 Lei | |
| 45 | N476118 | 1 | GUARD | 8,64 Lei | |
| 46 | N483749 | 1 | BASE SA | 264,01 Lei | |
| 47 | N539848 | 1 | FENCE | 13,85 Lei | |
| 48 | 49202013 | 2 | SCREW | 4,57 Lei | |
| 49 | N542478 | 2 | NUT | 4,57 Lei | |
| 50 | N542479 | 1 | WASHER | 4,57 Lei | |
| 51 | N539847 | 1 | CLAMP | 17,02 Lei | |
| 52 | N539846 | 1 | SHAFT | 7,37 Lei | |
| 53 | N539842 | 1 | S.T.WRENCH | 12,71 Lei | |
| 54 | N539841 | 1 | SEAT | 19,95 Lei | |
| 55 | N539844 | 1 | NUT | 21,85 Lei | |
| 57 | N476115 | 1 | NUT | 4,7 Lei | |
| 58 | N539839 | 1 | KNOB | 7,2 Lei | |
| 59 | N476113 | 1 | DOWEL | 4,57 Lei | |
| 60 | N476116 | 1 | SCREW | 4,7 Lei | |
| 61 | N476117 | 1 | SCREW | 4,57 Lei | |
| 76 | N541165 | 2 | SCREW | 4,57 Lei | |
| 77 | N542481 | 1 | NUT | 4,57 Lei | |
| 78 | N544157 | 1 | CORDSET | 52,22 Lei | |
| 79 | 49201012 | 2 | SCREW | 4,57 Lei | |
| 80 | 49206056 | 2 | SCREW | 4,57 Lei | |
| 82 | N509275 | 1 | PIN | 4,57 Lei | |
| 83 | N508284 | 1 | O RING | 4,57 Lei | |
| 84 | N542483 | 1 | SCREW | 4,57 Lei | |
| 300 | N534363 | 1 | ARMATURE 230V | 276,84 Lei | |
| 301 | N534360 | 1 | SPINDLE SA | 106,98 Lei | |
| 302 | N570199 | 1 | PIVOT SHAFT | 41,93 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
