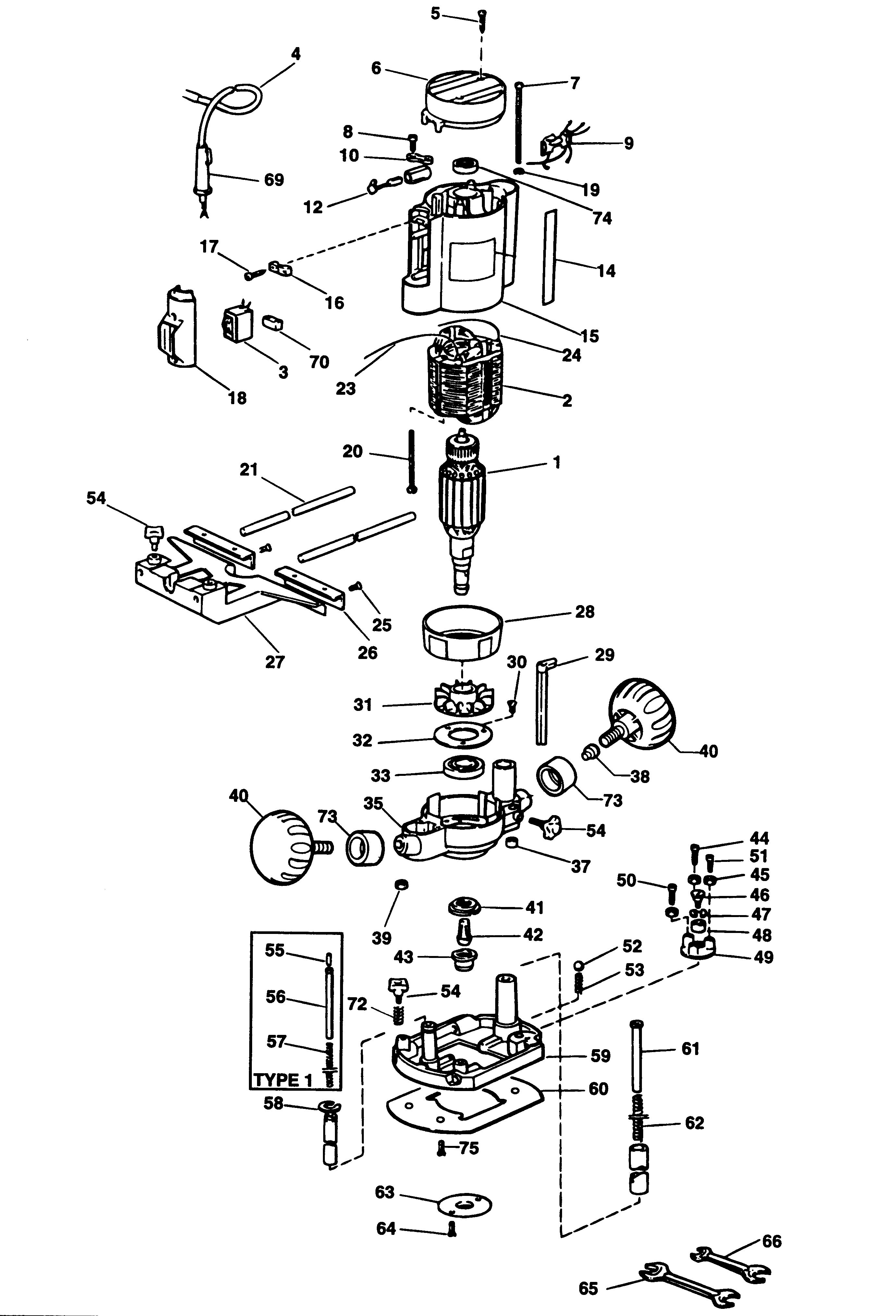

BLACK+DECKER PLUNGE ROUTER Type 1
SKU Produs: SR100
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 4 | 868536-00 | 1 | CABLE H05RN | 57,81 Lei | |
| 5 | 949896-12 | 2 | SCREW | 4,57 Lei | |
| 8 | 949896-12 | 4 | SCREW | 4,57 Lei | |
| 10 | 868069-00 | 2 | PLATE | 4,57 Lei | |
| 12 | 247533-11 | 2 | BRUSH 230V SA | 70,39 Lei | |
| 21 | 868080-00 | 2 | GUIDE | 13,85 Lei | |
| 26 | 249090-00 | 2 | STOP,GUIDE CHEER | 10,29 Lei | |
| 27 | 948651-00 | 1 | GUIDE DW615 | 195,02 Lei | |
| 29 | 868523-01 | 1 | DEPTH GAUGE DW615 | 25,54 Lei | |
| 31 | 943054-00 | 1 | DW615 FAN | 19,95 Lei | |
| 32 | 868047-00 | 1 | PLATE,BEARING | 17,02 Lei | |
| 40 | 869284-05 | 2 | S/A HANDLE DW615 | 25,54 Lei | |
| 41 | 868052-00 | 1 | RING | 19,95 Lei | |
| 43 | 326286-00 | 1 | COLLECT AND NUT SA | 157,92 Lei | |
| 43 | 326286-01 | 1 | COLLECT AND NUT SA | 130,35 Lei | |
| 44 | 942931-01 | 1 | SCREW M5X22 UNI-ISO4766 | 4,57 Lei | |
| 45 | 860083-02 | 3 | NUT,HEX THICK M.5 UNI 5587 | 4,57 Lei | |
| 47 | 860658-01 | 1 | WASHER,SPRING CURV.A8 UNI8840 | 4,57 Lei | |
| 52 | 720664-00 | 1 | BALL 8 MM | 4,57 Lei | |
| 53 | 868082-00 | 1 | SPRING | 4,57 Lei | |
| 58 | 943032-00 | 1 | RING AND D9 SHAFT | 4,57 Lei | |
| 60 | 943042-00 | 1 | BASE PLATE DW615 | 34,05 Lei | |
| 61 | 868566-00 | 1 | RIVET | 4,57 Lei | |
| 62 | 248953-00 | 1 | SPRING | 5,21 Lei | |
| 63 | 249014-01 | 1 | BUSHING,GUIDE 17X | 70,39 Lei | |
| 64 | 249412-20 | 2 | SCREW M5X10 | 4,57 Lei | |
| 65 | 941580-00 | 1 | FIXED WRENCH 13X17 | 25,54 Lei | |
| 69 | 868520-00 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 72 | 868082-00 | 2 | SPRING | 4,57 Lei | |
| 74 | N110358 | 1 | BEARING | 17,02 Lei |
