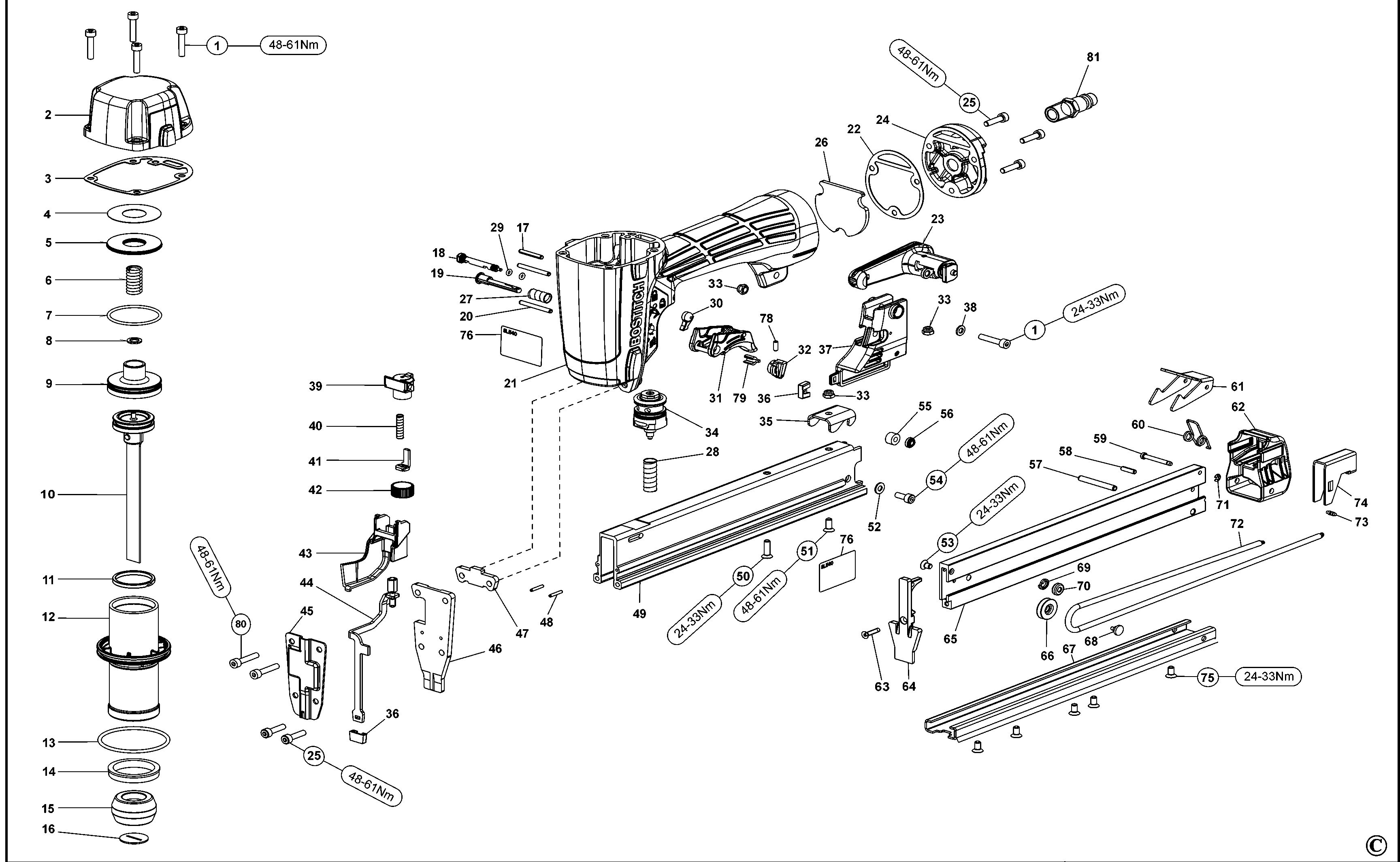

BOSTITCH PNEUMATIC STAPLER (Type REV E)
SKU Produs: SL540 /Type: REV E
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 182237 | 4 | SCREW | 5,15 Lei | |
| 1 | N906076 | 1 | SCREW | 3,78 Lei | |
| 2 | 9R207412 | 1 | CAP SA | 47,78 Lei | |
| 3 | 175682 | 1 | GASKET | 5,15 Lei | |
| 5 | 180446 | 1 | SEAL | 5,15 Lei | |
| 6 | 180447 | 1 | SPRING | 5,15 Lei | |
| 7 | 180448 | 1 | O RING | 5,15 Lei | |
| 8 | 180449 | 1 | WASHER | 5,15 Lei | |
| 9 | 180450-S | 1 | BODY, HEAD VALVE (NEW 05/AP/2011) | 5,15 Lei | |
| 10 | 182153 | 1 | PISTON SA | 99,86 Lei | |
| 12 | 180458 | 1 | CYLINDER | 7,14 Lei | |
| 13 | 180459 | 1 | O RING | 5,15 Lei | |
| 14 | 180460 | 1 | SEAL | 5,15 Lei | |
| 15 | 180461 | 1 | BUMPER | 5,15 Lei | |
| 16 | 182175 | 1 | GUIDE | 5,15 Lei | |
| 17 | 180475 | 1 | PIN | 5,15 Lei | |
| 18 | 184519 | 1 | PIN, TRIGGER LOCK | 6,09 Lei | |
| 19 | 184507 | 1 | PIN | 10,5 Lei | |
| 20 | 174345 | 2 | PIN | 5,15 Lei | |
| 21 | 175656-2 | 1 | HOUSING | 248,33 Lei | |
| 22 | 180463 | 1 | GASKET | 5,15 Lei | |
| 23 | 182272 | 1 | HOOK | 14,07 Lei | |
| 24 | 180465 | 1 | CAP | 16,49 Lei | |
| 25 | MSC4070-16 | 2 | SCREW | 16,49 Lei | |
| 26 | 182235 | 1 | FILTER | 5,15 Lei | |
| 27 | 180481 | 1 | SPRING | 5,15 Lei | |
| 28 | 180476 | 1 | SPRING | 5,15 Lei | |
| 29 | MRG002514 | 2 | O-RING,.098X.055 | 5,15 Lei | |
| 30 | 184518 | 1 | BUTTON, TRIGGER LOCK | 5,15 Lei | |
| 31 | 184513 | 1 | ASSEMBLY, TRIGGER | 18,06 Lei | |
| 32 | 184506 | 1 | BUTTON | 5,15 Lei | |
| 33 | MHE4070-100 | 1 | NUT | 5,15 Lei | |
| 35 | 182172 | 1 | LATCH | 6,09 Lei | |
| 36 | 188694 | 1 | FOOT | 5,15 Lei | |
| 37 | 182171 | 1 | BRACKET | 7,14 Lei | |
| 40 | N906013 | 1 | SPRING | 7,14 Lei | |
| 41 | N905944 | 1 | ARM | 7,14 Lei | |
| 42 | 180509 | 1 | ADJUSTER | 5,15 Lei | |
| 43 | 180530 | 1 | GUIDE | 5,15 Lei | |
| 44 | 180318 | 1 | ASSEMBLY, TRIP | 16,49 Lei | |
| 44 | 189975 | 1 | DEPTH ROD | 25,52 Lei | |
| 45 | 182174 | 1 | COVERPLATE | 47,78 Lei | |
| 46 | 182156 | 1 | NOSE | 47,78 Lei | |
| 47 | 180208 | 1 | PLATE | 5,15 Lei | |
| 48 | 180490 | 2 | PIN | 5,15 Lei | |
| 49 | 182158 | 1 | MAGAZINE | 253,89 Lei | |
| 50 | 174307 | 1 | SCREW | 5,15 Lei | |
| 51 | MSF4070-10 | 1 | SCREW-M4x0.7x10 | 5,15 Lei | |
| 52 | MPW4 | 1 | WASHER-M4 | 5,15 Lei | |
| 53 | MSF4070-6 | 1 | SCREW-M4x0.7x6 | 5,15 Lei | |
| 54 | MSC4070-10 | 1 | SCREW | 5,15 Lei | |
| 55 | 184431 | 1 | BUMPER | 6,09 Lei | |
| 56 | 182178 | 1 | NUT M4 | 3,78 Lei | |
| 57 | 177685 | 1 | PIN-M4x32 | 5,15 Lei | |
| 58 | MPG030012 | 1 | PIN-M4x12 | 5,15 Lei | |
| 59 | 182179 | 1 | PIN | 3,78 Lei | |
| 60 | 182180 | 1 | SPRING | 5,15 Lei | |
| 61 | 182177 | 1 | LATCH | 7,14 Lei | |
| 62 | 182167 | 1 | END CAP | 16,49 Lei | |
| 63 | MSF3050-14 | 1 | SCREW | 4,31 Lei | |
| 64 | 182161 | 1 | MAGAZINE | 330,12 Lei | |
| 65 | 182162 | 1 | SLIDER | 130,52 Lei | |
| 66 | 182163 | 1 | PULLEY | 12,5 Lei | |
| 67 | 182161 | 1 | MAGAZINE | 330,12 Lei | |
| 68 | 182161 | 1 | MAGAZINE | 330,12 Lei | |
| 69 | 188750 | 1 | WASHER SPRING-D5 | 3,78 Lei | |
| 70 | 182161 | 1 | MAGAZINE | 330,12 Lei | |
| 71 | 180494 | 1 | CIRCLIP | 5,15 Lei | |
| 72 | 182165 | 1 | SPRING | 12,5 Lei | |
| 73 | 182170 | 1 | STOP | 8,51 Lei | |
| 74 | 182169 | 1 | PUSH BLOCK | 8,51 Lei | |
| 75 | MSF4070-8 | 5 | SCREW | 5,15 Lei | |
| 76 | 186021 | 1 | LABEL | 3,78 Lei | |
| 78 | 180484 | 1 | SCREW | 5,15 Lei | |
| 79 | 184508 | 1 | BUSHING | 5,15 Lei | |
| 80 | N906076 | 1 | SCREW | 3,78 Lei | |
| 81 | 10.320.5152 | 1 | NIPPLE 1/4M (EURO) | 73,19 Lei |
