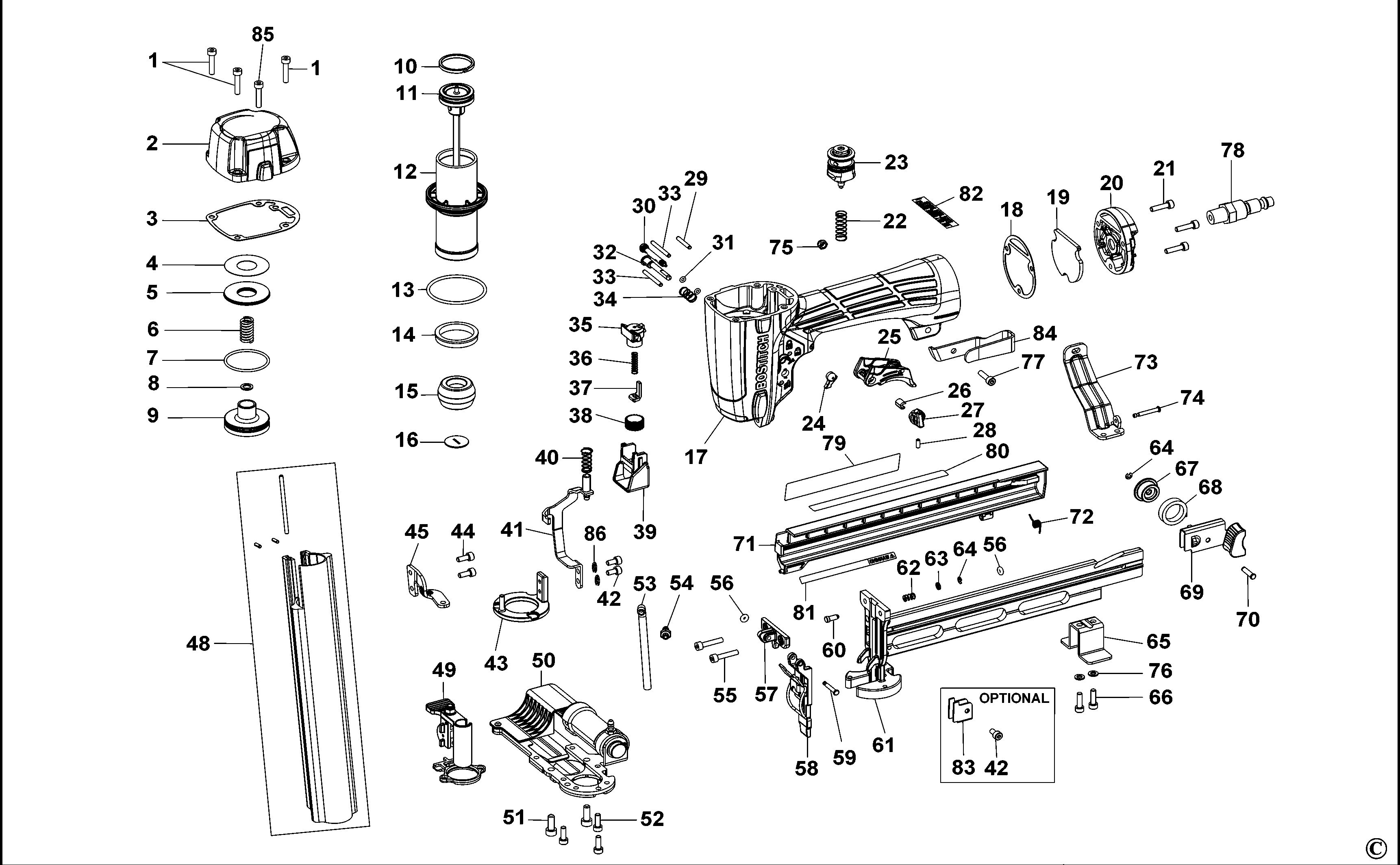

BOSTITCH PNEUMATIC STAPLER (Type REV C)
SKU Produs: SL1838BC-E /Type: REV C
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 182237 | 4 | SCREW | 5,15 Lei | |
| 2 | 9R207412 | 1 | CAP SA | 47,78 Lei | |
| 3 | 175682 | 1 | GASKET | 5,15 Lei | |
| 5 | 180446 | 1 | SEAL | 5,15 Lei | |
| 6 | 180447 | 1 | SPRING | 5,15 Lei | |
| 7 | 180448 | 1 | O RING | 5,15 Lei | |
| 8 | 180449 | 1 | WASHER | 5,15 Lei | |
| 9 | 180450-S | 1 | BODY, HEAD VALVE (NEW 05/AP/2011) | 5,15 Lei | |
| 11 | 180597 | 1 | ASSEMBLY, PISTON/DRIVER | 99,86 Lei | |
| 12 | 180458 | 1 | CYLINDER | 7,14 Lei | |
| 13 | 180459 | 1 | O RING | 5,15 Lei | |
| 14 | 180460 | 1 | SEAL | 5,15 Lei | |
| 15 | 180461 | 1 | BUMPER | 5,15 Lei | |
| 16 | 180599 | 1 | DRIVER GUIDE | 5,15 Lei | |
| 17 | 188596 | 1 | FRAME, MACHINING | 150,05 Lei | |
| 18 | 180463 | 1 | GASKET | 5,15 Lei | |
| 19 | 182235 | 1 | FILTER | 5,15 Lei | |
| 20 | 180465 | 1 | CAP | 16,49 Lei | |
| 21 | MSC4070-16 | 3 | SCREW | 16,49 Lei | |
| 22 | 180476 | 1 | SPRING | 5,15 Lei | |
| 23 | 9R202265-TW | 1 | VALVE-KIT | 21,11 Lei | |
| 24 | 184518 | 1 | BUTTON, TRIGGER LOCK | 5,15 Lei | |
| 25 | 184513 | 1 | ASSEMBLY, TRIGGER | 18,06 Lei | |
| 26 | 184508 | 1 | BUSHING | 5,15 Lei | |
| 27 | 184506 | 1 | BUTTON | 5,15 Lei | |
| 28 | 180484 | 1 | SCREW | 5,15 Lei | |
| 29 | 180475 | 1 | PIN | 5,15 Lei | |
| 30 | 184519 | 1 | PIN, TRIGGER LOCK | 6,09 Lei | |
| 31 | MRG002514 | 1 | O-RING,.098X.055 | 5,15 Lei | |
| 32 | 184507 | 1 | PIN | 10,5 Lei | |
| 33 | 174345 | 1 | PIN | 5,15 Lei | |
| 34 | 180481 | 1 | SPRING | 5,15 Lei | |
| 36 | N906013 | 1 | SPRING | 7,14 Lei | |
| 38 | 180509 | 1 | ADJUSTER | 5,15 Lei | |
| 39 | 188579 | 1 | BRACKET, CONTACT ARM | 5,15 Lei | |
| 40 | 188667 | 1 | SPRING, SCREW ADJUSTING | 5,15 Lei | |
| 41 | 188595 | 1 | ASSEMBLY, CONTACT ARM | 18,06 Lei | |
| 42 | MSC4070-8 | 2 | SCREW | 5,15 Lei | |
| 43 | 188592 | 1 | CONTACT DISC, MACHINING | 34,65 Lei | |
| 44 | MSC4070-10 | 2 | SCREW | 5,15 Lei | |
| 45 | 188587 | 1 | BRACKET, CAP MAGAZINE | 5,15 Lei | |
| 48 | 188699 | 1 | UNIT, MAGAZINE B | 88,41 Lei | |
| 49 | 188650 | 1 | ASSEMBLY, SLIDING SEAT | 25,52 Lei | |
| 50 | 188660 | 1 | ASSEMBLY,MAGAZINE C/CYLINDER B | 119,91 Lei | |
| 51 | 188625 | 2 | SCREW, SHCS, M5X0.80X14 | 5,15 Lei | |
| 52 | MSC4070-12 | 3 | SCREW | 5,15 Lei | |
| 53 | 188642 | 1 | TUBE | 5,15 Lei | |
| 54 | 188636 | 1 | FITTING | 5,15 Lei | |
| 55 | 100260 | 2 | SCREW | 6,09 Lei | |
| 56 | 174073 | 1 | O RING | 5,15 Lei | |
| 57 | 188585 | 1 | COVER B, MACHINING | 16,49 Lei | |
| 58 | 188663 | 1 | ASSEMBLY, COVER A/PINCH PLATE | 47,78 Lei | |
| 59 | 188628 | 1 | PIN, COVER A | 5,15 Lei | |
| 60 | 188594 | 1 | PLUNGER, LOCK OUT | 5,15 Lei | |
| 61 | 188598 | 1 | ASSEMBLY, NOSE/MAGAZINE | 139,97 Lei | |
| 62 | 180492 | 1 | SPRING | 5,15 Lei | |
| 63 | 180493 | 1 | SPACER | 5,15 Lei | |
| 64 | 180494 | 1 | CIRCLIP | 5,15 Lei | |
| 65 | 188637 | 1 | PLATE BALANCE | 5,15 Lei | |
| 66 | 188705 | 2 | SCREW,SHCS,M4X0.7X14, SW | 5,15 Lei | |
| 67 | 188633 | 1 | BUSHING, CONSTANT SPRING A | 5,15 Lei | |
| 68 | 188632 | 1 | CONSTANT SPRING, PUSHER A | 5,15 Lei | |
| 69 | 188664 | 1 | UNIT, PUSHER | 10,5 Lei | |
| 70 | 188634 | 1 | PIN, BUSHING | 5,15 Lei | |
| 71 | 188638 | 1 | COVER MAGAZINE, OVERMOLD | 7,14 Lei | |
| 72 | 188696 | 1 | SPRING, TORSION | 5,15 Lei | |
| 73 | 188593 | 1 | BRACKET, MAGAZINE | 8,51 Lei | |
| 74 | 188704 | 1 | PIN, COVER MAGAZINE | 5,15 Lei | |
| 75 | MHE4070-100 | 1 | NUT | 5,15 Lei | |
| 77 | 188626 | 1 | SCREW, SHCS, M4X0.70X16 | 5,15 Lei | |
| 79 | 159921 | 1 | LABEL | 3,78 Lei | |
| 80 | 188601 | 1 | LABEL | 3,78 Lei | |
| 81 | 181919 | 1 | LABEL | 3,78 Lei | |
| 82 | 188602 | 1 | LABEL | 3,78 Lei | |
| 83 | 188605 | 1 | GUIDE | 5,15 Lei | |
| 84 | 188695 | 1 | BELT HOOK | 5,15 Lei | |
| 85 | 179805 | 1 | SCREW, M4X0.70X22 , SHCS | 5,15 Lei | |
| 86 | 188706 | 2 | WASHER, FLAT, D4X10X1.5 | 5,15 Lei |
