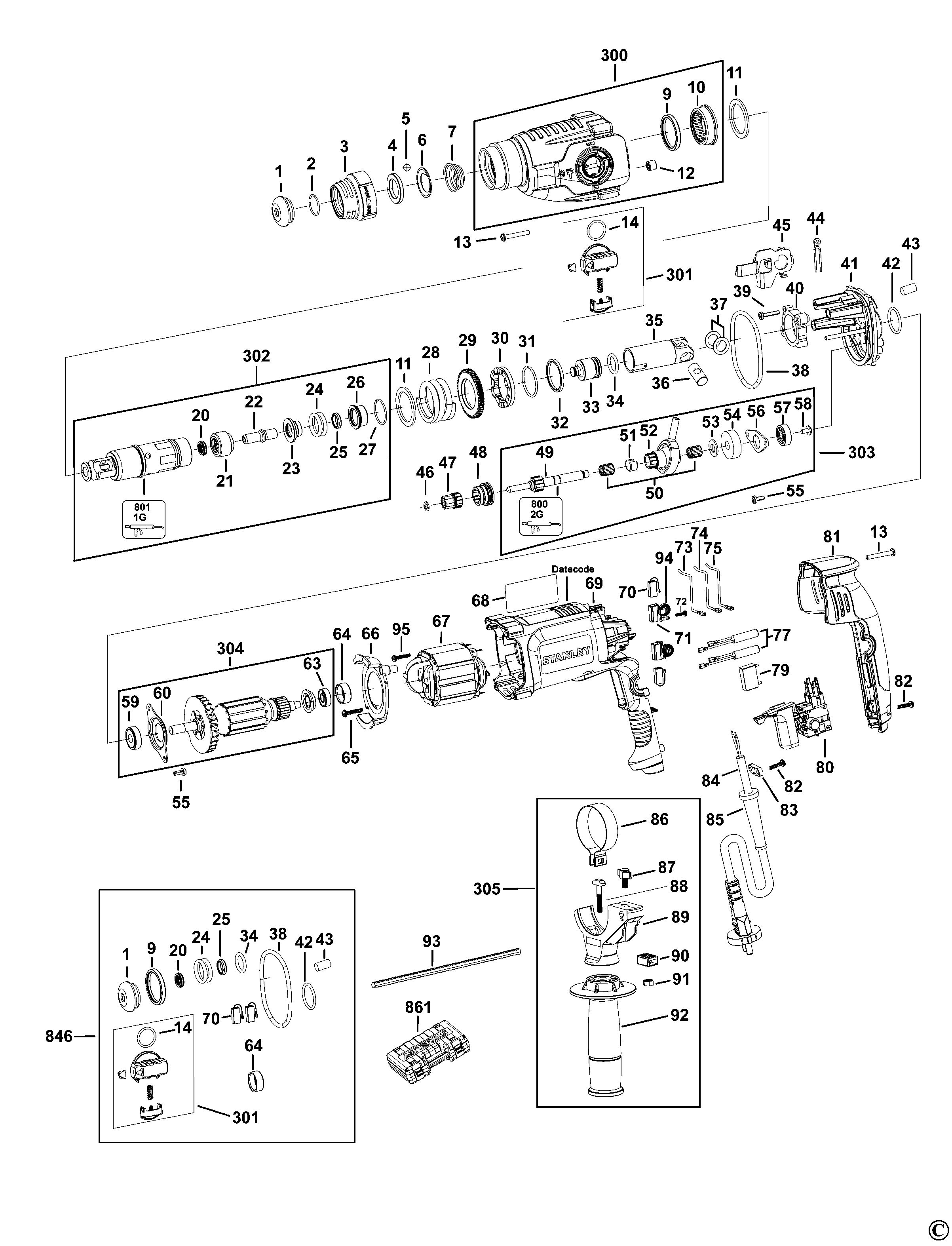

STANLEY ROTARY HAMMER (Type 1)
SKU Produs: SHR243K /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N465557 | 1 | RUBBER BOOT | 5,21 Lei | |
| 2 | 4030104010 | 1 | CIRCLIP | 4,57 Lei | |
| 3 | N465555 | 1 | TUBE | 5,21 Lei | |
| 4 | 4030104020 | 1 | WASHER. CUP | 5,21 Lei | |
| 5 | 4030304014 | 1 | BALL STEEL | 4,57 Lei | |
| 6 | 4030104006 | 1 | RETAINER | 4,57 Lei | |
| 7 | 4030108003 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 9 | N465532 | 1 | SEAL | 6,23 Lei | |
| 10 | 577813-00 | 1 | BEARING NEEDLE-1 | 21,85 Lei | |
| 11 | N465552 | 2 | WASHER | 5,21 Lei | |
| 12 | N465533 | 1 | BEARING | 7,37 Lei | |
| 13 | N468888 | 5 | SCREW | 4,57 Lei | |
| 14 | 4030303002 | 1 | O RING | 4,57 Lei | |
| 20 | N465542 | 1 | RING | 5,21 Lei | |
| 21 | N465543 | 1 | BEARING | 19,95 Lei | |
| 22 | N465541 | 1 | BEAT PIECE | 13,85 Lei | |
| 23 | N465545 | 1 | DAMPER | 21,85 Lei | |
| 24 | N465544 | 2 | O RING | 5,21 Lei | |
| 25 | N465547 | 1 | RING | 7,37 Lei | |
| 26 | N465546 | 1 | RAM | 15,12 Lei | |
| 27 | N465548 | 1 | RING | 4,57 Lei | |
| 28 | N465551 | 1 | SPRING | 15,12 Lei | |
| 29 | N465550 | 1 | Gear | 41,93 Lei | |
| 29 | N531538 | 1 | Gear | 21,3 Lei | |
| 30 | N465549 | 1 | RING | 25,54 Lei | |
| 30 | N531539 | 1 | RING | 21,3 Lei | |
| 31 | N465553 | 1 | RING | 4,57 Lei | |
| 32 | N465554 | 1 | RING | 4,57 Lei | |
| 33 | N465560 | 1 | RAM | 19,95 Lei | |
| 34 | N465561 | 1 | O RING | 7,37 Lei | |
| 35 | N465559 | 1 | PISTON | 30,87 Lei | |
| 36 | N465562 | 1 | BEARING SPINDLE | 12,71 Lei | |
| 37 | N465563 | 2 | WASHER | 4,57 Lei | |
| 38 | N465535 | 1 | O RING | 4,57 Lei | |
| 39 | N465538 | 3 | SCREW | 4,57 Lei | |
| 40 | N465537 | 1 | BEARING | 17,02 Lei | |
| 41 | N465534 | 1 | HOUSING BEARING | 34,05 Lei | |
| 42 | 4030103003 | 1 | O RING | 4,57 Lei | |
| 43 | N465536 | 1 | FELT | 4,57 Lei | |
| 44 | N465523 | 1 | SPRING | 4,57 Lei | |
| 45 | N465521 | 1 | PLATE | 6,23 Lei | |
| 46 | N465566 | 1 | WASHER | 4,57 Lei | |
| 47 | N465567 | 1 | Gear | 37,73 Lei | |
| 48 | N465568 | 1 | COLLAR | 15,12 Lei | |
| 49 | N465565 | 1 | INTER SHAFT | 41,93 Lei | |
| 50 | 577818-00 | 2 | BEARING CAGE 9X12X13 | 7,37 Lei | |
| 51 | N465570 | 1 | SPACER | 4,57 Lei | |
| 52 | N465569 | 1 | BEARING | 88,55 Lei | |
| 53 | N465574 | 1 | WASHER | 4,57 Lei | |
| 54 | N465573 | 1 | Gear | 25,54 Lei | |
| 55 | N468881 | 4 | SCREW | 4,57 Lei | |
| 56 | N465576 | 1 | BEARING PLATE | 4,57 Lei | |
| 57 | 49106007 | 1 | BEARING | 8,64 Lei | |
| 58 | N468882 | 1 | SCREW | 4,57 Lei | |
| 59 | 49111014 | 1 | BEARING | 15,12 Lei | |
| 60 | N465516 | 1 | BEARING PLATE | 8,64 Lei | |
| 63 | 49111011 | 1 | BEARING | 7,37 Lei | |
| 64 | 4140303002 | 1 | SLEEVE BEARING | 4,57 Lei | |
| 65 | N496704 | 2 | SCREW | 4,57 Lei | |
| 66 | N465511 | 1 | GUIDE | 4,57 Lei | |
| 67 | N531440 | 1 | FIELD SA | 70,39 Lei | |
| 69 | N531520 | 1 | HOUSING MOTOR | 41,93 Lei | |
| 70 | N465518 | 1 | BRUSH PAIR 230V | 7,37 Lei | |
| 71 | N465517 | 1 | BRUSH HOLDER | 13,85 Lei | |
| 72 | 49206001 | 4 | SCREW | 4,57 Lei | |
| 73 | N469365 | 1 | WIRE | 4,57 Lei | |
| 74 | 4030101006 | 1 | LEADWIRE | 4,57 Lei | |
| 75 | 4030101614 | 2 | LEADWIRE | 4,57 Lei | |
| 77 | 4020404607 | 2 | INDUCTOR | 6,23 Lei | |
| 79 | N510278 | 1 | CAPACITOR | 10,29 Lei | |
| 80 | N468884 | 1 | SWITCH | 41,93 Lei | |
| 81 | N531537 | 1 | HANDLE COVER | 17,02 Lei | |
| 82 | N468889 | 4 | SCREW | 4,57 Lei | |
| 83 | 4100301008 | 1 | CORD CLAMP | 4,57 Lei | |
| 84 | Z49306025 | 1 | CORDSET | 37,73 Lei | |
| 85 | 49303607 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 86 | 4030204012 | 1 | COLLAR | 7,37 Lei | |
| 87 | 4030101008 | 1 | SCREW | 4,57 Lei | |
| 88 | 4030104001 | 1 | SCREW | 5,21 Lei | |
| 89 | 4030101026 | 1 | PAD | 7,37 Lei | |
| 90 | 4030101022 | 1 | NUT | 4,57 Lei | |
| 91 | 49205013 | 1 | NUT | 4,57 Lei | |
| 92 | 4030301001 | 1 | HANDLE | 6,23 Lei | |
| 93 | 4030101019 | 1 | DEPTH ROD | 4,57 Lei | |
| 94 | 4030108002 | 1 | SPRING BRUSH | 4,57 Lei | |
| 95 | N468887 | 2 | SCREW | 4,57 Lei | |
| 300 | N465530 | 1 | GEARCASE SA | 70,39 Lei | |
| 301 | N465524 | 1 | BUTTON SA | 17,02 Lei | |
| 302 | N465539 | 1 | SPINDLE SA | 145,09 Lei | |
| 303 | N465564 | 1 | INTER SHAFT SA | 157,92 Lei | |
| 304 | N582783 | 1 | ARMATURE SA | 133,4 Lei | |
| 305 | N479434 | 1 | HANDLE SIDE SA | 37,73 Lei | |
| 800 | 487130-04 | 1 | GREASE,GLK FLUID, 10G SACHET - SERVICE | 25,54 Lei | |
| 801 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 801 | N505291 | 1 | GREASE | 196,2 Lei | |
| 846 | N510826 | 1 | SERVICE KIT | 96,56 Lei | |
| 861 | N469697 | 1 | KIT BOX | 96,56 Lei |
