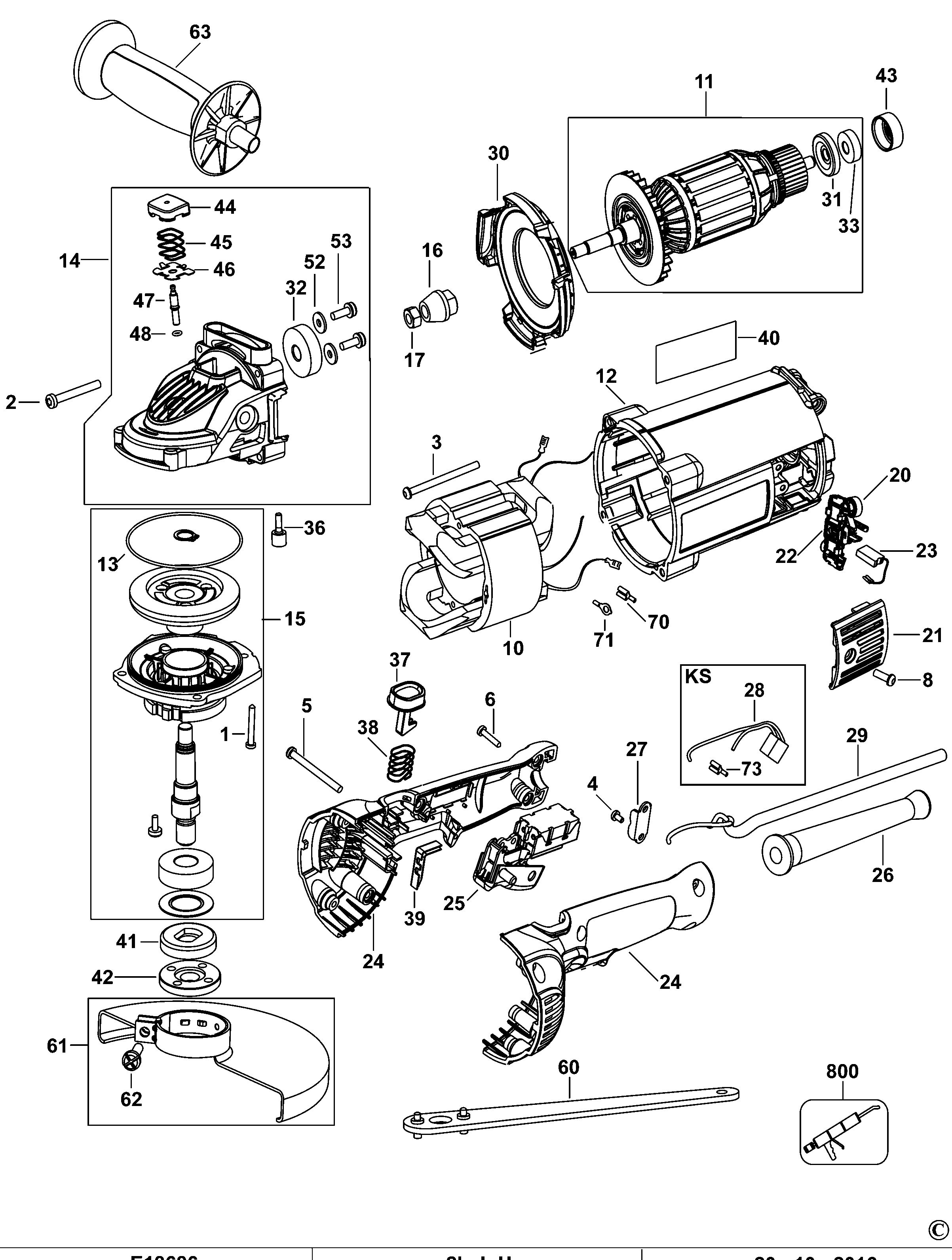

ANGLE GRINDER
SKU Produs: DWE490 /Type: 20
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 330045-14 | 4 | SCREW M5X16 T25 | 4,57 Lei | |
| 2 | 330019-26 | 4 | SCREW M5.28 X42 | 4,57 Lei | |
| 3 | 330019-19 | 2 | SCREW, PLASTITE | 5,21 Lei | |
| 4 | 330019-11 | 2 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 5 | 330019-50 | 1 | SCREW | 4,57 Lei | |
| 6 | 330019-32 | 4 | SCREW,PLASTITE | 4,57 Lei | |
| 8 | 176951-00 | 2 | SCREW | 4,57 Lei | |
| 12 | 393239-01 | 1 | FIELD CASE | 80,04 Lei | |
| 13 | 397031-00 | 1 | O RING | 4,57 Lei | |
| 16 | N407625 | 1 | 6K PINION | 30,87 Lei | |
| 17 | 330015-03 | 1 | NUT,HEX | 4,57 Lei | |
| 20 | 645650-00 | 2 | BRUSH SPRING | 5,21 Lei | |
| 21 | 394387-01 | 2 | DOOR, BRUSH | 12,71 Lei | |
| 22 | N410308 | 2 | BRUSH HLDR.ASSY | 17,02 Lei | |
| 23 | N404514 | 1 | BRUSH PAIR | 37,73 Lei | |
| 25 | N015071 | 1 | SWITCH SA | 52,22 Lei | |
| 26 | N219433 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 27 | 604119-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 30 | 631350-00 | 1 | RADIAL FAN BAFFLE | 10,29 Lei | |
| 31 | 393238-00 | 1 | SHIELD DUST | 5,21 Lei | |
| 32 | N389509 | 1 | EARING, BALL, CW MFG | 19,95 Lei | |
| 33 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 36 | N033051 | 1 | SCREW STOP | 5,21 Lei | |
| 37 | 636503-00 | 1 | BUTTON LOCK-OFF | 4,57 Lei | |
| 38 | 636502-00 | 1 | PRING | 4,57 Lei | |
| 39 | N391190 | 1 | COVER | 4,57 Lei | |
| 41 | 403150-01 | 1 | WASHER, CLAMP, INNER | 21,85 Lei | |
| 42 | 401678-05 | 1 | WASHER OUTER CLAMP PAINTED | 21,85 Lei | |
| 43 | 609970-00 | 1 | CUP, RUBBER | 4,57 Lei | |
| 44 | 630553-00 | 1 | SPINDLE LOCK BUTTON | 4,57 Lei | |
| 45 | 638328-00 | 1 | SPINDLE LOCK SPRING | 4,57 Lei | |
| 46 | 635908-00 | 1 | SPINDLE LOCK RETAINING PLATE | 4,57 Lei | |
| 47 | 634589-00 | 1 | SPINDLE LOCK PIN | 10,29 Lei | |
| 48 | 750831 | 1 | O RING (SPINDLE LOCK) | 4,57 Lei | |
| 52 | 640591-00 | 2 | WASHER PLAIN | 4,57 Lei | |
| 53 | 330045-67 | 2 | SCREW | 4,57 Lei | |
| 60 | 635261-00 | 1 | WRENCH PIN | 19,95 Lei | |
| 61 | N419366 | 1 | SA GUARD | 57,81 Lei | |
| 62 | N082712 | 1 | SCREW | 4,57 Lei | |
| 63 | 651858-01 | 1 | SA HANDLE SIDE | 25,54 Lei | |
| 70 | 612273-00 | 2 | TERMINAL | 4,57 Lei | |
| 71 | 610057-00 | 2 | TERMINAL | 4,57 Lei | |
| 73 | 053650-00 | 1 | TERMINAL | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
