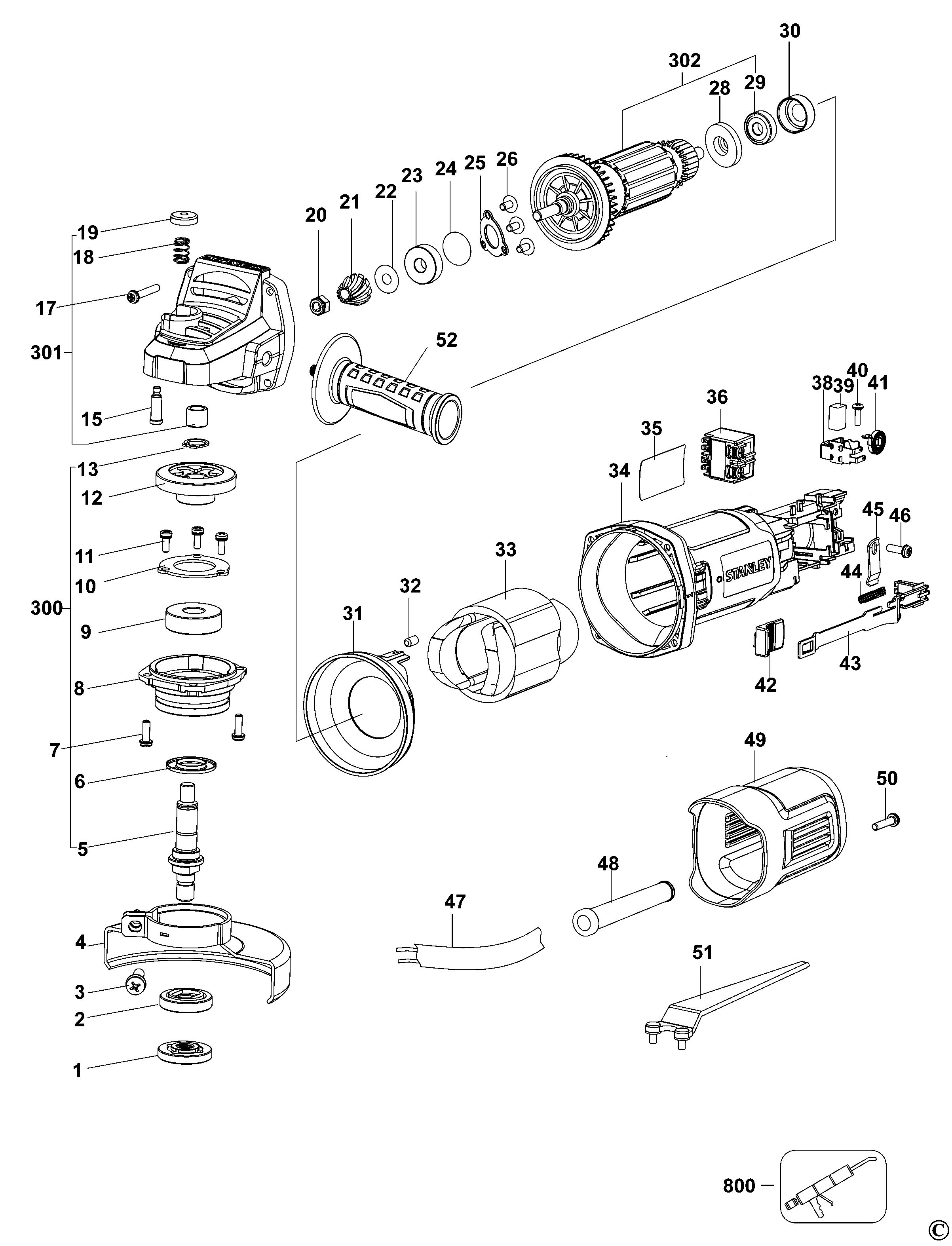

STANLEY ANGLE GRINDER (Type 1)
SKU Produs: SG6125 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N862877 | 1 | OUTER FLANGE | 17,02 Lei | |
| 2 | N803471 | 1 | Inner Flange | 12,71 Lei | |
| 3 | N866043 | 1 | SCREW | 3,78 Lei | |
| 4 | N862037 | 1 | GUARD SA | 17,02 Lei | |
| 5 | N746578 | 1 | SPINDLE | 16,49 Lei | |
| 6 | N494772 | 1 | COVER | 4,57 Lei | |
| 7 | 49209042 | 4 | SCREW | 4,57 Lei | |
| 8 | N866050 | 1 | GEARCASE COVER | 14,07 Lei | |
| 9 | 49111017 | 1 | BEARING | 13,85 Lei | |
| 10 | N787677 | 1 | BEARING PLATE | 3,78 Lei | |
| 11 | 49203008 | 8 | SCREW | 4,57 Lei | |
| 12 | N802377 | 1 | Gear | 28,14 Lei | |
| 13 | N851381 | 1 | CIRCLIP | 3,78 Lei | |
| 15 | N743788 | 1 | LOCK PIN | 3,78 Lei | |
| 17 | N802853 | 4 | SCREW | 3,78 Lei | |
| 18 | 4140308003 | 1 | SPRING | 4,57 Lei | |
| 19 | 4140301012 | 1 | LOCK BUTTON | 4,57 Lei | |
| 20 | N867028 | 1 | NUT | 3,78 Lei | |
| 21 | N802378 | 1 | PINION | 12,5 Lei | |
| 22 | 4140304012 | 1 | WASHER | 4,57 Lei | |
| 23 | N793193 | 1 | BEARING | 7,14 Lei | |
| 24 | N880529 | 1 | O RING | 3,78 Lei | |
| 26 | NA731421 | 3 | SCREW-SCREW ASSEMBLY M4X6 | 3,78 Lei | |
| 28 | 4140901007 | 1 | WASHER INSULATING | 4,57 Lei | |
| 29 | N793199 | 1 | BEARING | 11,45 Lei | |
| 30 | N844524 | 1 | SLEEVE BEARING | 3,78 Lei | |
| 31 | N691342 | 1 | BAFFLE | 3,78 Lei | |
| 32 | 4240203008 | 2 | RUBBER | 3,78 Lei | |
| 33 | N683540 | 1 | FIELD SA | 47,78 Lei | |
| 34 | N713568 | 1 | FIELD CASE | 21,11 Lei | |
| 36 | N622597 | 1 | SWITCH | 11,45 Lei | |
| 38 | N767128 | 2 | BRUSH HOLDER | 3,78 Lei | |
| 39 | N875914 | 1 | BRUSH PAIR | 21,11 Lei | |
| 40 | 49206001 | 2 | SCREW | 4,57 Lei | |
| 41 | 4140308002 | 1 | BRUSH SPRING | 4,57 Lei | |
| 42 | 4141401003 | 1 | BUTTON | 4,57 Lei | |
| 43 | N757193 | 1 | LINK | 3,78 Lei | |
| 44 | 4140308001 | 1 | SPRING | 4,57 Lei | |
| 45 | 4140301013 | 1 | CORD CLAMP | 4,57 Lei | |
| 46 | 49206016 | 1 | SCREW | 4,57 Lei | |
| 48 | N802854 | 1 | CORD PROTECTOR | 3,78 Lei | |
| 49 | N854001 | 1 | END CAP | 8,51 Lei | |
| 50 | 49206018 | 1 | SCREW | 4,57 Lei | |
| 51 | 4140304608 | 1 | WRENCH SET | 10,29 Lei | |
| 52 | N865425 | 1 | SIDE HANDLE | 11,45 Lei | |
| 300 | N875888 | 1 | SPINDLE SA | 98,8 Lei | |
| 301 | N875885 | 1 | GEARCASE SA | 34,65 Lei | |
| 302 | N875654 | 1 | ARMATURE | 79,8 Lei |
