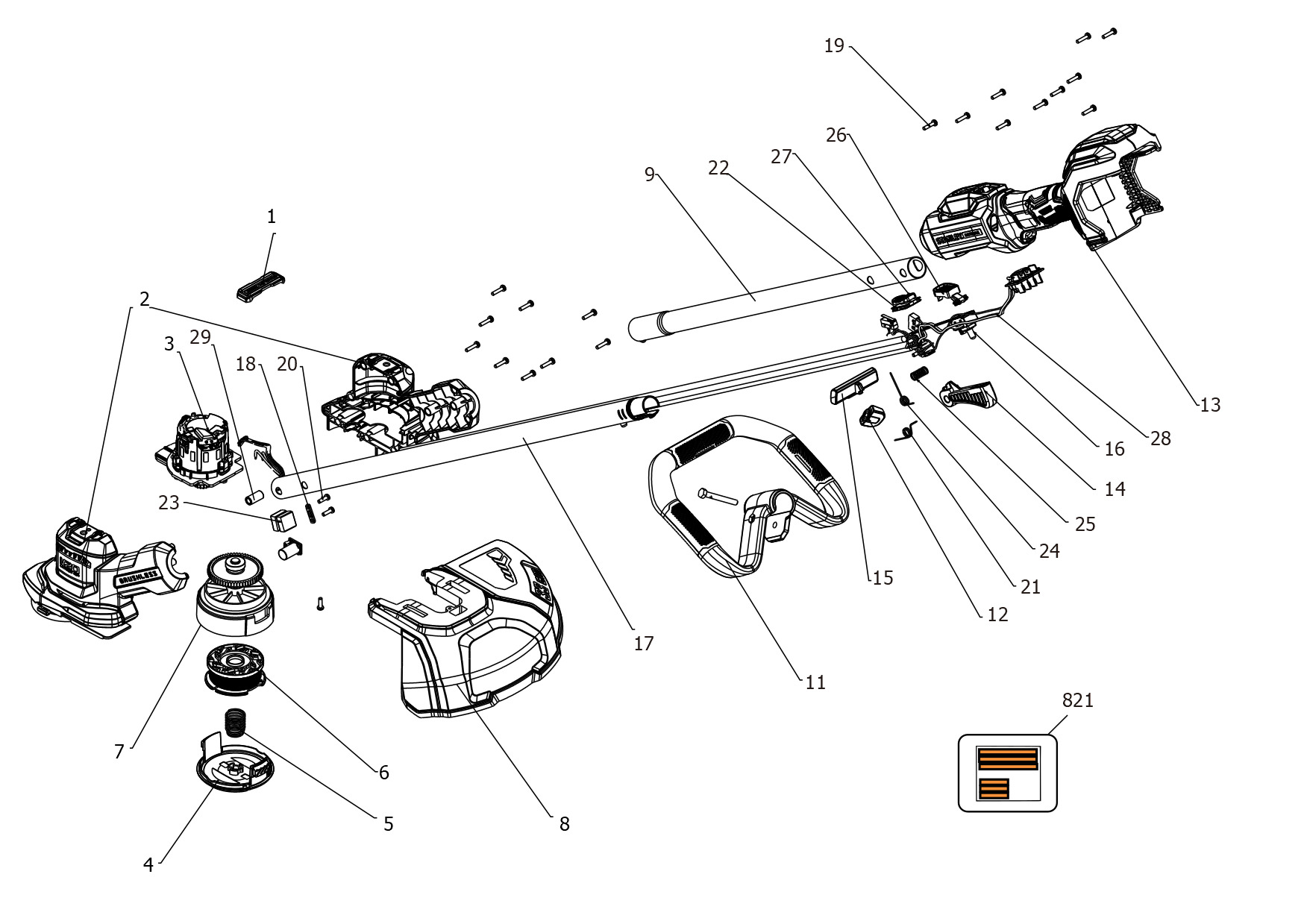

STANLEY CORDLESS STRING TRIMMER (Type 1)
SKU Produs: SFMSTB930B /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA163542 | 1 | CLIP | 6,09 Lei | |
| 2 | NA163544 | 1 | HOUSING MOTOR | 34,65 Lei | |
| 3 | NA319608 | 1 | MOTOR SA | 358,05 Lei | |
| 4 | NA186325 | 1 | COVER | 10,5 Lei | |
| 5 | 243603-00 | 1 | SPRING | 3,78 Lei | |
| 6 | NA186327 | 1 | SPOOL SA | 18,06 Lei | |
| 7 | NA319610 | 1 | SPOOL SA | 66,15 Lei | |
| 8 | NA183882 | 1 | GUARD | 34,65 Lei | |
| 9 | NA069241 | 1 | TUBE UPPER | 34,65 Lei | |
| 11 | NA246634 | 1 | HANDLE SA | 47,78 Lei | |
| 13 | NA163543 | 1 | HOUSING SA | 88,41 Lei | |
| 14 | NA158047 | 1 | TRIGGER | 6,09 Lei | |
| 15 | NA202219 | 1 | BUTTON LOCK-OFF | 6,09 Lei | |
| 16 | NA162057 | 1 | SWITCH | 25,52 Lei | |
| 17 | NA069242 | 1 | POLE PIECE SA | 25,52 Lei | |
| 18 | 329301-00 | 2 | CLAMP, CORD CORNER | 4,57 Lei | |
| 19 | 330019-03 | 19 | Screw M3.5X16 T15 | 4,57 Lei | |
| 20 | 373158 | 4 | SCREW | 4,57 Lei | |
| 21 | 90612024 | 1 | SPRING | 4,57 Lei | |
| 22 | N014681 | 1 | LEAF SPRING | 4,57 Lei | |
| 23 | N590958 | 2 | CONNECTOR | 13,85 Lei | |
| 24 | N599046 | 1 | SPRING | 4,57 Lei | |
| 25 | N599047 | 1 | SPRING | 4,57 Lei | |
| 26 | N602500 | 1 | BUTTON | 3,78 Lei | |
| 27 | N703436 | 1 | SWITCH | 3,78 Lei | |
| 28 | NA211500 | 1 | WIRE | 150,05 Lei | |
| 29 | NA232967 | 1 | PIN | 18,06 Lei | |
| 821 | NA212602 | 1 | RATING LABEL | 3,78 Lei |
