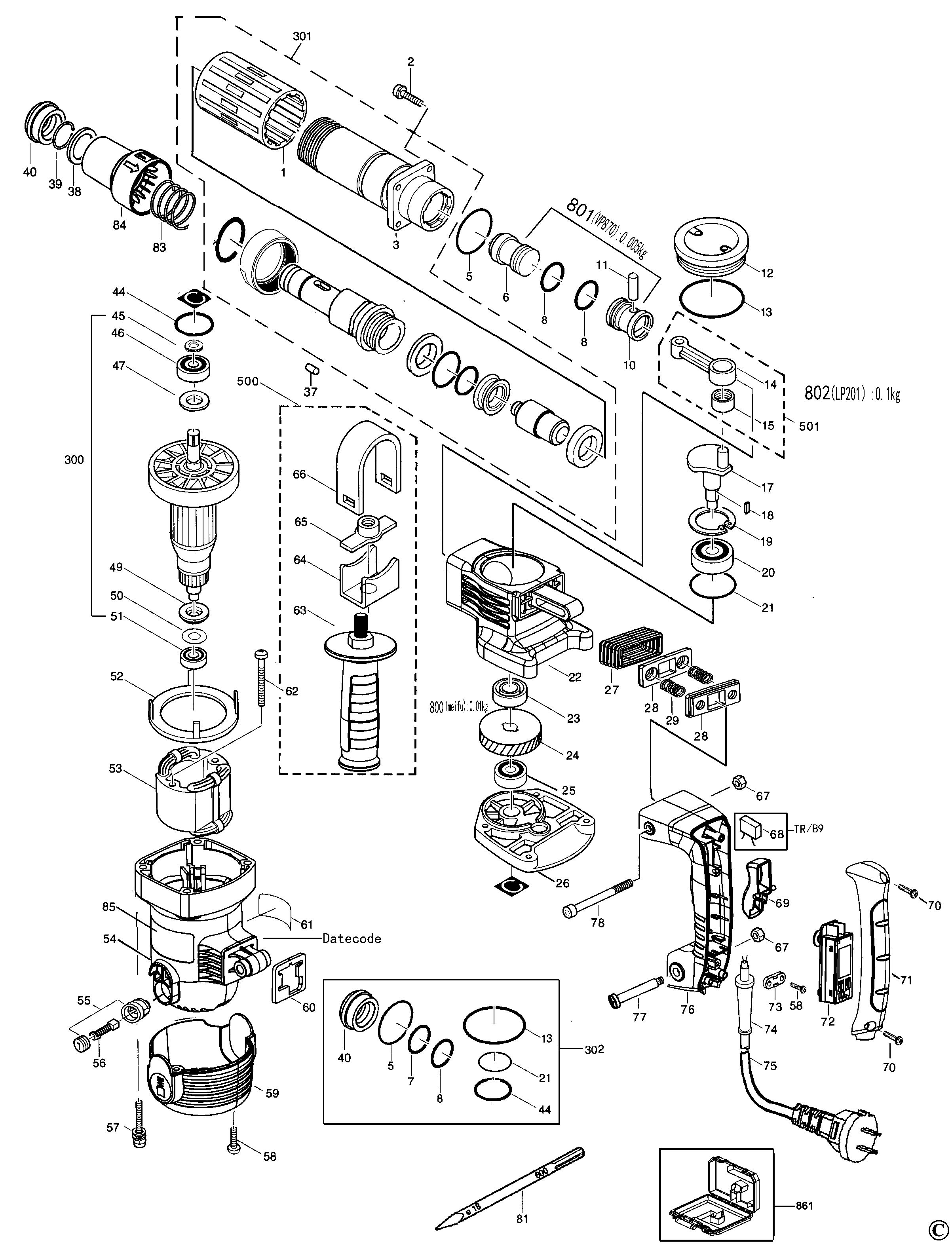

STANLEY CHIPPING HAMMER (Type 1)
SKU Produs: SFMEH220 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N775204 | 1 | RUBBER BOOT | 7,37 Lei | |
| 2 | 49201042 | 4 | SCREW | 4,57 Lei | |
| 5 | N767434 | 1 | O RING | 4,57 Lei | |
| 6 | NA024416 | 1 | RAM SA | 25,54 Lei | |
| 6 | NA045245 | 1 | RAM SA | 37,73 Lei | |
| 8 | N907264 | 1 | O RING | 10,29 Lei | |
| 8 | NA045245 | 1 | RAM SA | 37,73 Lei | |
| 10 | 4050304011 | 1 | PISTON | 19,95 Lei | |
| 11 | 4050304010 | 1 | PIN | 4,57 Lei | |
| 12 | 4050301609 | 1 | CAP | 7,37 Lei | |
| 13 | N767432 | 1 | O RING | 4,57 Lei | |
| 17 | 4050304004 | 1 | CRANKSHAFT | 41,93 Lei | |
| 18 | 49208024 | 2 | LOCK PIN | 4,57 Lei | |
| 19 | 49207052 | 1 | CIRCLIP | 4,57 Lei | |
| 20 | 49106017 | 1 | BEARING | 21,85 Lei | |
| 21 | N767433 | 1 | O RING | 4,57 Lei | |
| 22 | 4050302601 | 1 | GEARCASE | 70,39 Lei | |
| 23 | N767435 | 1 | SEAL | 4,57 Lei | |
| 24 | 4050310001 | 1 | Gear | 52,22 Lei | |
| 25 | 49111003 | 1 | BEARING | 13,85 Lei | |
| 26 | 4050302602 | 1 | COVER | 25,54 Lei | |
| 27 | 4050303601 | 1 | COVER | 4,57 Lei | |
| 28 | 4050301601 | 2 | CLAMP | 4,57 Lei | |
| 29 | 4050308601 | 2 | SPRING | 4,57 Lei | |
| 37 | 4031304025 | 2 | BALL | 7,37 Lei | |
| 38 | 4051204001 | 1 | DEFLECTOR | 4,57 Lei | |
| 39 | 4031404016 | 1 | RETAINER | 4,57 Lei | |
| 40 | N767436 | 1 | CAP | 8,64 Lei | |
| 44 | N767437 | 1 | O RING | 4,57 Lei | |
| 45 | 4050304023 | 1 | RING | 7,37 Lei | |
| 46 | 49111017 | 1 | BEARING | 13,85 Lei | |
| 47 | 4050304031 | 1 | WASHER | 4,57 Lei | |
| 49 | 4240101005 | 1 | WASHER INSULATING | 4,57 Lei | |
| 50 | 4090104003 | 1 | WASHER | 4,57 Lei | |
| 51 | 49111013 | 1 | BEARING | 7,37 Lei | |
| 52 | 4050301007 | 1 | BAFFLE FAN | 4,57 Lei | |
| 53 | Z60305016 | 1 | FIELD SA | 96,56 Lei | |
| 54 | N724836 | 1 | FIELDCASE SA | 41,93 Lei | |
| 55 | 4050307001 | 1 | BRUSH HOLDER | 15,12 Lei | |
| 56 | 4050306001 | 1 | BRUSH PAIR | 8,64 Lei | |
| 57 | 49201045 | 4 | SCREW | 4,57 Lei | |
| 58 | 49206018 | 4 | SCREW | 4,57 Lei | |
| 59 | 4050301607 | 1 | END CAP | 12,71 Lei | |
| 60 | 4050303602 | 1 | RUBBER SEAL | 4,57 Lei | |
| 62 | 49206039 | 2 | SCREW | 4,57 Lei | |
| 63 | 4050301604 | 1 | SIDE HANDLE | 17,02 Lei | |
| 64 | 4050304018 | 1 | BASE BRACKET | 8,64 Lei | |
| 65 | 4050304019 | 1 | COLLET NUT | 13,85 Lei | |
| 66 | 4050304020 | 1 | HANDLE FRAME KIT | 8,64 Lei | |
| 67 | 49205005 | 2 | NUT | 4,57 Lei | |
| 68 | 494014 | 1 | CAPACITOR | 4,57 Lei | |
| 69 | 4050301602 | 1 | SWITCH COVER | 5,21 Lei | |
| 70 | 49206021 | 3 | SCREW | 4,57 Lei | |
| 71 | 4050301603 | 1 | HANDLE COVER | 17,02 Lei | |
| 72 | 4050305601 | 1 | SWITCH | 41,93 Lei | |
| 73 | 4240301011 | 1 | CORD CLAMP | 4,57 Lei | |
| 74 | N767140 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 75 | N778828 | 1 | CORDSET | 57,81 Lei | |
| 75 | N908260 | 1 | CORDSET | 88,55 Lei | |
| 76 | N725237 | 1 | SWITCH HANDLE | 25,54 Lei | |
| 77 | 4050304601 | 1 | PIN | 5,21 Lei | |
| 78 | 49201604 | 1 | SCREW | 4,57 Lei | |
| 81 | 4050304032 | 1 | BIT | 41,93 Lei | |
| 83 | 4051204004 | 1 | SPRING | 4,57 Lei | |
| 84 | 4051101001 | 1 | SLEEVE | 25,54 Lei | |
| 85 | N702549 | 1 | BRAND LABEL | 4,57 Lei | |
| 300 | N602553 | 1 | ARMATURE SA | 213,19 Lei | |
| 301 | N775194 | 1 | TUBE GUIDE | 361,33 Lei | |
| 302 | N778130 | 1 | SEALS KIT | 25,54 Lei | |
| 500 | 4050331001 | 1 | HANDLE SIDE SA | 41,93 Lei | |
| 501 | 4050331004 | 1 | CONNECTING ROD | 34,05 Lei | |
| 802 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 861 | N722629 | 1 | KITBOX | 181,55 Lei |
