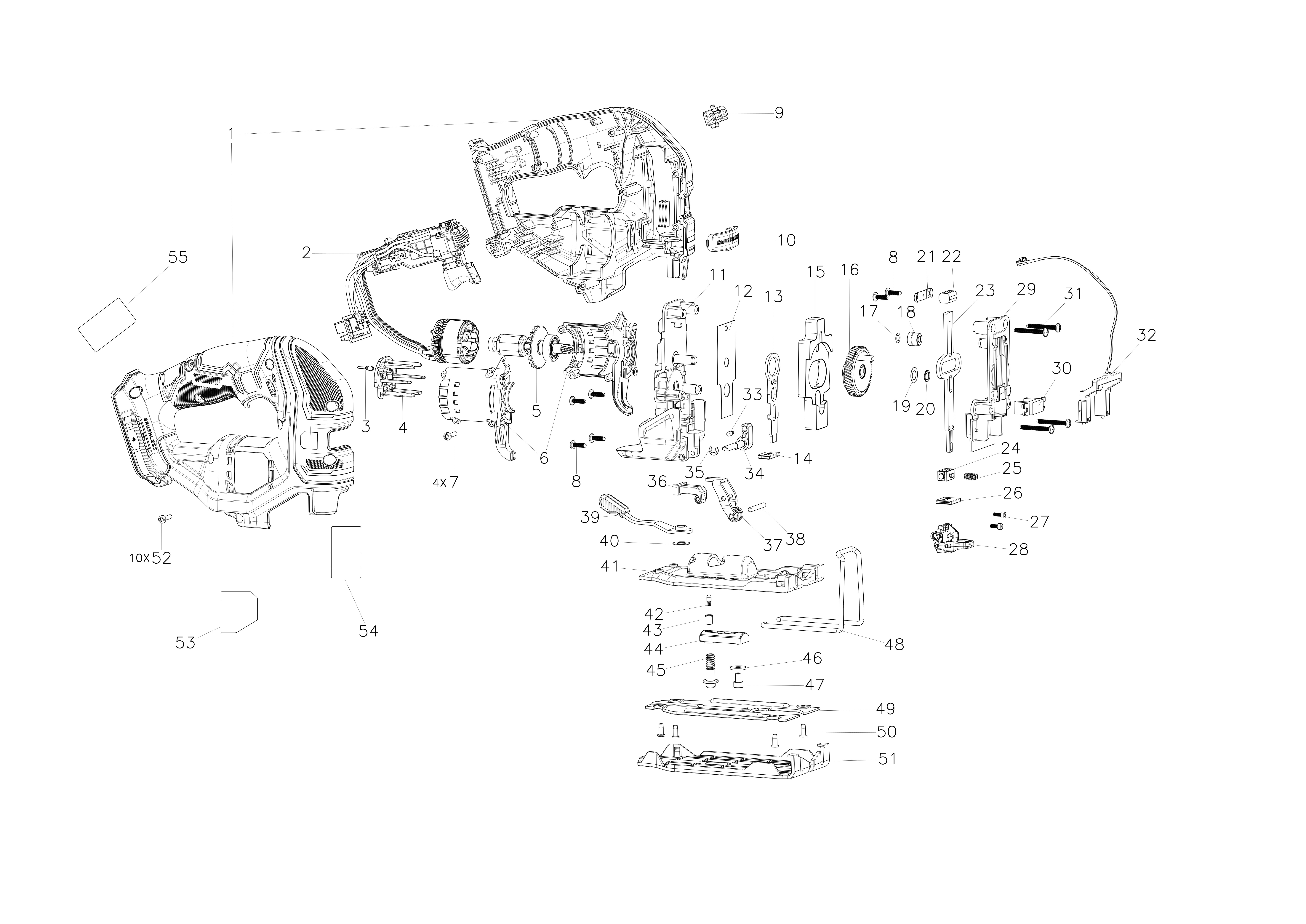

STANLEY JIGSAW (Type 1)
SKU Produs: SFMCS650B /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N815258 | 1 | HOUSING SA | 106,98 Lei | |
| 2 | NA005529 | 1 | SWITCH SA | 570,96 Lei | |
| 3 | N593131 | 1 | PLUG | 4,57 Lei | |
| 4 | N694877 | 1 | ADAPTOR | 5,21 Lei | |
| 5 | NA005533 | 1 | ROTOR SA | 195,02 Lei | |
| 6 | N803479 | 1 | MOTOR HOUSING SA | 13,85 Lei | |
| 7 | 330019-03 | 4 | Screw M3.5X16 T15 | 4,57 Lei | |
| 8 | 330045-45 | 6 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 9 | N815227 | 1 | SWITCH LOCK OFF | 4,57 Lei | |
| 10 | N857338 | 1 | LABEL | 5,21 Lei | |
| 11 | NA005537 | 1 | CASTING SA | 169,36 Lei | |
| 12 | N769864 | 1 | PLATE | 4,57 Lei | |
| 13 | N765718 | 1 | FORK | 25,54 Lei | |
| 14 | N723984 | 1 | SEAL SA | 13,85 Lei | |
| 15 | N765716 | 1 | COUNTER BALANCE | 41,93 Lei | |
| 16 | NA005543 | 1 | GEAR SA | 106,98 Lei | |
| 17 | N826283 | 1 | WASHER | 4,57 Lei | |
| 18 | N765717 | 1 | BEARING | 4,57 Lei | |
| 19 | N784853 | 1 | WASHER | 4,57 Lei | |
| 20 | N802770 | 1 | RING | 4,57 Lei | |
| 21 | 582261-00 | 1 | K-B217L-04 | 4,57 Lei | |
| 22 | 490329-01 | 1 | BEARING | 10,29 Lei | |
| 23 | N765721 | 1 | SHAFT | 34,05 Lei | |
| 24 | 490330-01 | 1 | SUPPORT BEARING | 8,64 Lei | |
| 25 | N875896 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 28 | NA005544 | 1 | BLADE CLAMP | 96,56 Lei | |
| 29 | N765720 | 1 | GEARCASE COVER | 41,93 Lei | |
| 30 | 490331-01 | 1 | CARRIER | 7,37 Lei | |
| 31 | 330045-09 | 4 | SCREW, METAL THREAD FORM M4 X 30 T20 | 4,57 Lei | |
| 32 | N876777 | 1 | LED & POWER SUPPLY KIT | 34,05 Lei | |
| 33 | N403227 | 1 | INDEXING BOLT | 4,57 Lei | |
| 34 | N857641 | 1 | LEVER | 30,87 Lei | |
| 35 | 1007796-00 | 1 | CLIP | 4,57 Lei | |
| 36 | N777271 | 1 | DUST DEFLECTOR | 5,21 Lei | |
| 37 | NA005550 | 1 | CRANK | 88,55 Lei | |
| 38 | 1007511-00 | 1 | ROLL PIN | 7,37 Lei | |
| 39 | N859890 | 1 | LEVER SA | 15,12 Lei | |
| 40 | 582829-00 | 1 | WASHER | 4,57 Lei | |
| 41 | N822273 | 1 | SHOE | 70,39 Lei | |
| 42 | N403227 | 1 | INDEXING BOLT | 4,57 Lei | |
| 43 | N826877 | 1 | DETENT | 4,57 Lei | |
| 44 | N516006 | 1 | CLAMPING BAR | 17,02 Lei | |
| 45 | 582826-00 | 1 | BOLT | 6,23 Lei | |
| 46 | 640591-00 | 1 | WASHER PLAIN | 4,57 Lei | |
| 47 | N595379 | 1 | M5X8 Socket Head Cap Screw | 4,57 Lei | |
| 48 | N801965 | 1 | GUARD | 17,02 Lei | |
| 49 | N862601 | 1 | SHOE | 30,87 Lei | |
| 50 | N056875 | 4 | SCREW M4X10 | 4,57 Lei | |
| 51 | N825458 | 1 | SOLE PLATE | 8,64 Lei | |
| 52 | 330019-03 | 10 | Screw M3.5X16 T15 | 4,57 Lei | |
| 53 | N911825 | 1 | RATING LABEL | 4,7 Lei | |
| 999 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei |
