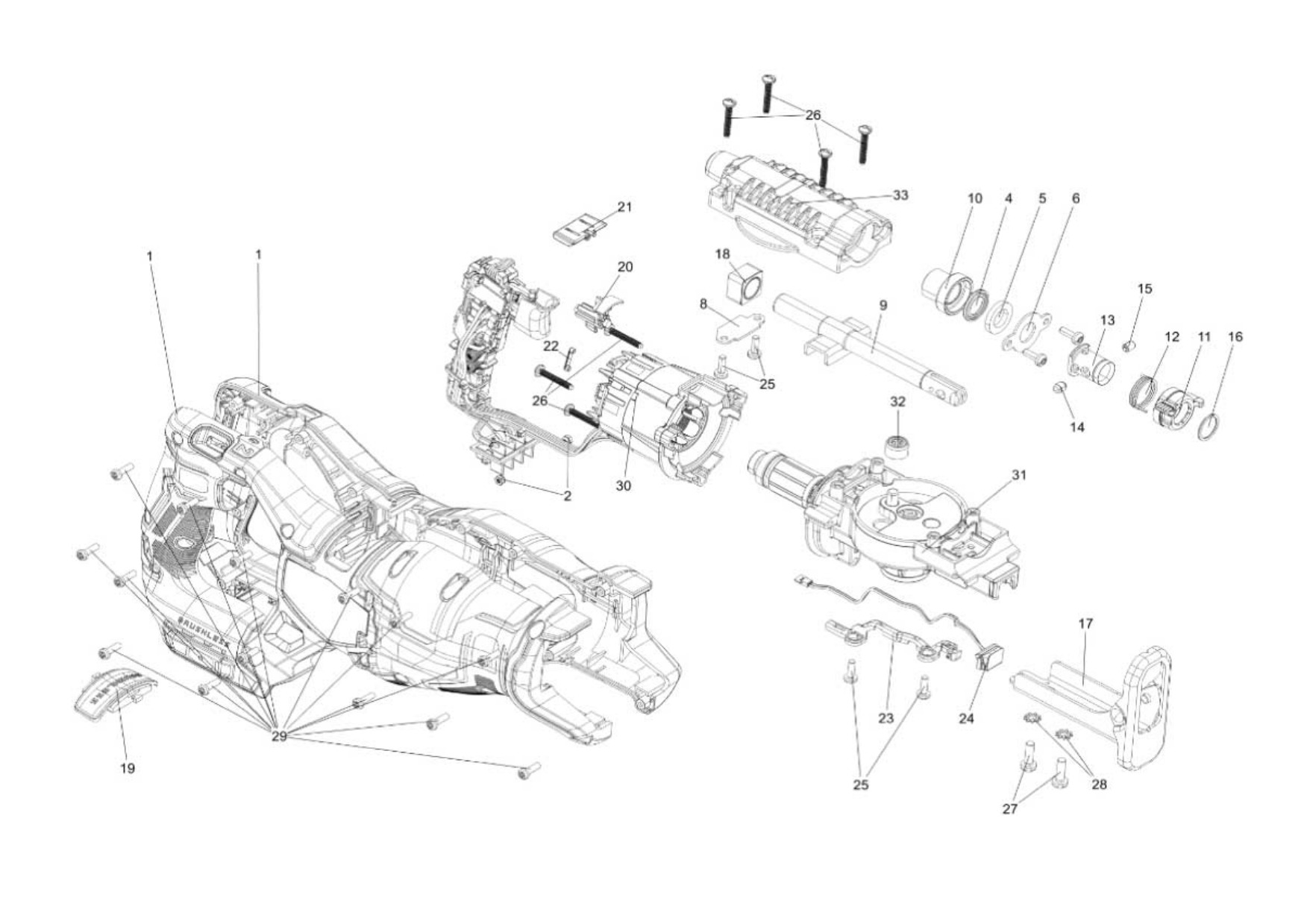

STANLEY RECIPROCATING SAW (Type H1)
SKU Produs: SFMCS310 /Type: H1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N734131 | 1 | HOUSING SA | 145,09 Lei | |
| 2 | 330021-11 | 1 | NUT STOP ELASTIC M3 X 0.5 | 4,57 Lei | |
| 4 | N635406 | 1 | SEAL | 7,37 Lei | |
| 5 | N635407 | 1 | SEAL | 5,21 Lei | |
| 6 | N633163 | 1 | RETAINING PLATE | 4,57 Lei | |
| 8 | N688243 | 1 | PLATE | 4,57 Lei | |
| 9 | N702130 | 1 | SHAFT | 120,82 Lei | |
| 10 | N842861 | 1 | BUSHING | 21,85 Lei | |
| 11 | N697115 | 1 | COLLAR | 34,05 Lei | |
| 12 | N697114 | 1 | SPRING TORSION | 4,57 Lei | |
| 13 | N697113 | 1 | SLEEVE | 34,05 Lei | |
| 14 | N694240 | 1 | PIN | 7,37 Lei | |
| 15 | N694246 | 1 | PIN | 7,37 Lei | |
| 16 | N697540 | 1 | RING | 4,57 Lei | |
| 17 | N641890 | 1 | SHOE SA | 52,22 Lei | |
| 18 | N842862 | 1 | BEARING SA | 15,12 Lei | |
| 19 | N722997 | 1 | COVER | 12,71 Lei | |
| 20 | N722796 | 1 | BAR LOCKING | 4,57 Lei | |
| 21 | N704020 | 1 | BAR LOCKING | 4,57 Lei | |
| 22 | N261987 | 1 | CAP | 4,57 Lei | |
| 23 | N677736 | 1 | GUIDE | 4,57 Lei | |
| 24 | N678311 | 1 | LED | 21,85 Lei | |
| 25 | N247325 | 4 | SCREW | 4,57 Lei | |
| 25 | N247701 | 4 | RATING LABEL | 4,57 Lei | |
| 26 | 330045-08 | 4 | SCREW | 4,57 Lei | |
| 27 | N242699 | 2 | SCREW | 4,57 Lei | |
| 28 | 605111-00 | 2 | WASHER LOCK | 4,57 Lei | |
| 29 | 330019-02 | 14 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 30 | N842863 | 1 | FIELD SA | 667,9 Lei | |
| 31 | N842864 | 1 | GEARCASE SA | 307,21 Lei | |
| 33 | N842865 | 1 | GEARCASE COVER SA | 57,81 Lei | |
| 700 | N755773 | 1 | RATING PLATE | 4,7 Lei |
